ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26PCCFH6GSENSOR 15PSIC M5 0.1V |
3,070 | - |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - M5 | Threaded | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
RSCDRRM2.5MDSE3SENSOR 0.04PSID 0.08" 24BIT 8DIP |
269 | - |
|
Datasheet | TruStability® RSC | 8-DIP (0.510", 12.95mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±4.86PSI (±33.5kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
26PCAFA6GSENSOR 1PSIC 0.2" .0167V |
223 | - |
|
Datasheet | 26PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
M325M-000005-01KPGSENSOR 1000PSIG 1/4"NPT .02A |
2,024 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
26PCFFG6GSENSOR 100PSIC 0.14" 0.1V |
1,313 | - |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SDP1000-L025SENSOR 0.009PSID 0.2" 4V MODULE |
4,438 | - |
|
Datasheet | SDP1000 | Module | Tray | Not For New Designs | Board Mount | Differential | ±0.009PSI (±0.062kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.6% | 4.75V ~ 5.25V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | ±14.5PSI (±100kPa) | -10°C ~ 60°C | - | - | - | Module |
|
P992-5-CSENSOR 0.18PSI 4V |
263 | - |
|
Datasheet | - | 2-SIP Module | Bulk | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
NPH-8-200GHSENSOR 29.01PSIG 0.19" 0.1V TO8 |
2,420 | - |
|
Datasheet | NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
|
NPH-8-700AHSENSOR 101.53PSIA 0.19" 0.1V TO8 |
2,817 | - |
|
Datasheet | NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Absolute | 101.53PSI (700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|

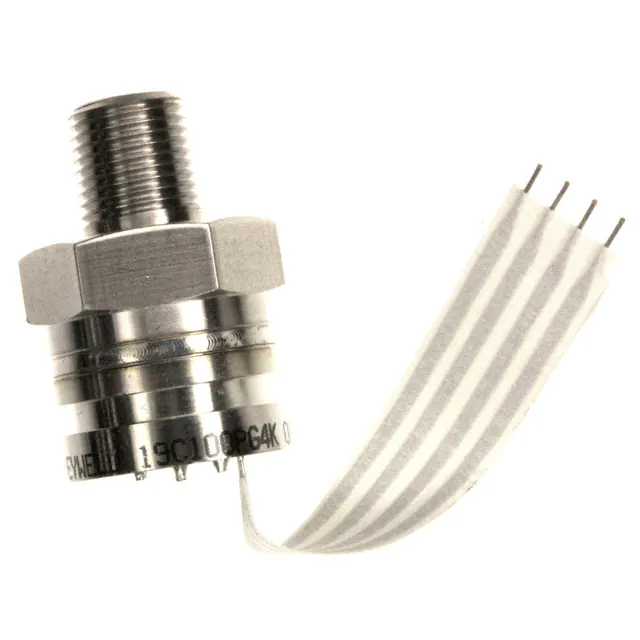

19C100PG4KSENSOR 100PSIG 1/8"NPT 0.1V |
179 | - |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
89-05KA-0USENSOR 5000PSIA .208V |
130 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 5000PSI (34473.79kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 15000PSI (103421.36kPa) | -40°C ~ 125°C | - | - | - | - |
|
89-03KS-4RSENSOR 3000PSIS 1/4"NPT .125V |
2,362 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Sealed Gauge | 3000PSI (20684.27kPa) | Wheatstone Bridge | 0 mV ~ 125 mV | ±0.25% | - | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 9000PSI (62052.82kPa) | -40°C ~ 125°C | - | - | - | - |
|
ICP-10101SENSOR 15.95PSIA 10LGA |
716 | - |
|
Datasheet | - | 10-WFLGA | Tape & Reel (TR) | Not For New Designs | Board Mount | Absolute | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | I2C | - | - | 1.8V | - | No Port | - | SMD (SMT) Tab | - | -40°C ~ 85°C | - | - | Surface Mount | 10-LGA (2x2) |
|
KP229F3519XTMA1SENSOR 58.02PSIA 4.55V DSOF8 |
1,342 | - |
|
Datasheet | - | 8-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 7.25PSI ~ 58.02PSI (50kPa ~ 400kPa) | Analog Voltage | 0.5 V ~ 4.55 V | ±0.580PSI (±4kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 140°C | Automotive | AEC-Q100 | Surface Mount | PG-DSOF-8-162 |
|
KP212F1701XTMA1SENSOR 16.68PSIA 4.5V DSOF8 |
2,239 | - |
|
Datasheet | - | 8-SMD Module | Tape & Reel (TR) | Active | - | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.29PSI (±2kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 21.76PSI (150kPa) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | PG-DSOF-8-16 |
|
KP229E3518XTMA1SENSOR 58.02PSIA 4.5V DSOF8 |
1,679 | - |
|
Datasheet | - | 8-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 7.25PSI ~ 58.02PSI (50kPa ~ 400kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.87PSI (±6kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 140°C | Automotive | AEC-Q100 | Surface Mount | PG-DSOF-8-16 |
|
KP264XTMA1SENSOR 16.68PSIA 10BIT |
2,904 | - |
|
Datasheet | - | 8-SMD Module | Tape & Reel (TR) | Active | - | Absolute | 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa) | SPI | 10 b | ±0.435PSI (±3kPa) | 3.135V ~ 3.465V | - | No Port | Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
KP226E3408XTMA1SENSOR 58.02PSIA 4.85V DSOF8 |
1,400 | - |
|
Datasheet | - | 8-SMD Module | Tape & Reel (TR) | Active | Medical Ventilation | Absolute | 2.18PSI ~ 58.02PSI (15kPa ~ 400kPa) | Analog Voltage | 0.1 V ~ 4.85 V | ±0.81PSI (5.6kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 140°C (TA) | - | - | Surface Mount | PG-DSOF-8-16 |
|
NPP-301A-200ASENSOR 30PSIA .06V |
2,428 | - |
|
Datasheet | NPP-301 | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.2% | 3V ~ 10V | - | No Port | - | Gull Wing | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
20000980-00SENSOR 17.4PSIA 24BIT |
4,914 | - |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | - | Absolute | 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) | I2C | 24 b | ±0.007PSI (±0.05kPa) | 1.5V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 145.04PSI (1000kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
