ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86-050G-RSENSOR 50PSIG 0.1V |
2,142 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-100A-RSENSOR 100PSIA 0.1V |
4,081 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300A-CSENSOR 300PSIA 0.1V |
3,769 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-030G-RSENSOR 30PSIG 0.1V |
4,275 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-005G-CSENSOR 5PSIG 0.1V |
3,057 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
M325M-000005-100PGSENSOR 100PSIG 1/4"NPT .02A |
104 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-000005-250PGSENSOR 250PSIG 1/4"NPT .02A |
1,989 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
M3431-000006-01KPGSENSOR 1000PSIG 1/8"NPT 4.5V |
2,628 | - |
|
Datasheet | MSP340 | Cylinder | Bulk | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 2' | 2000PSI (13789.51kPa) | -20°C ~ 85°C | - | - | - | - |
|

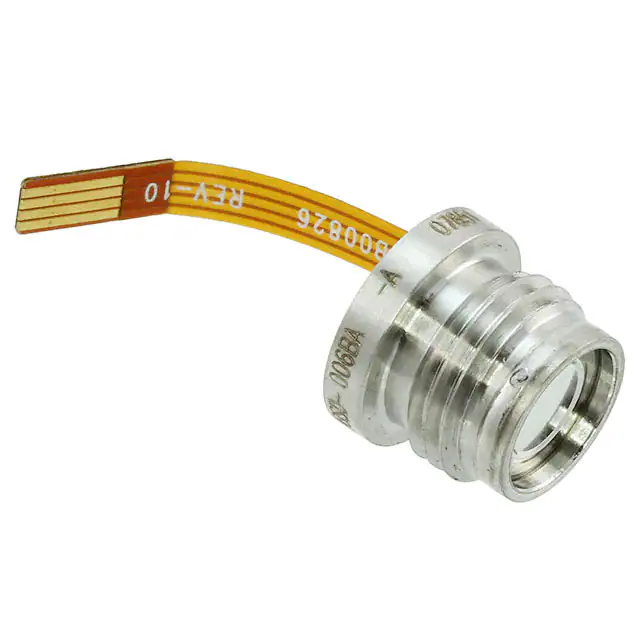

89BSD-006BA-ASENSOR 87.02PSIA 5/16" 24BIT |
120 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 87.02PSI (600kPa) | I2C | 24 b | ±0.3% | 1.8V ~ 3.6V | Male - 5/16" (7.94mm) UNEF | Threaded | - | Cable with Connector | 174.05PSI (1200kPa) | -40°C ~ 85°C | - | - | - | - |
|
89-03KA-0USENSOR 3000PSIA .208V |
281 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 3000PSI (20684.27kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 9000PSI (62052.82kPa) | -40°C ~ 125°C | - | - | - | - |
