ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1230-015D-3SSENSOR 15PSID 0.13" 0.1V |
2,231 | - |
|
Datasheet | 1230 | 8-DIP Module | Tray | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1240-015A-3SSENSOR 15PSIA 0.13" 0.1V |
2,694 | - |
|
Datasheet | 1240 | 8-DIP Module | Tray | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | 1.235V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
325535009-00SENSOR 203.05PSIA 16BIT |
1,776 | - |
|
Datasheet | - | 8-SMD Module | Tray | Obsolete | Board Mount | Absolute | 203.05PSI (1400kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

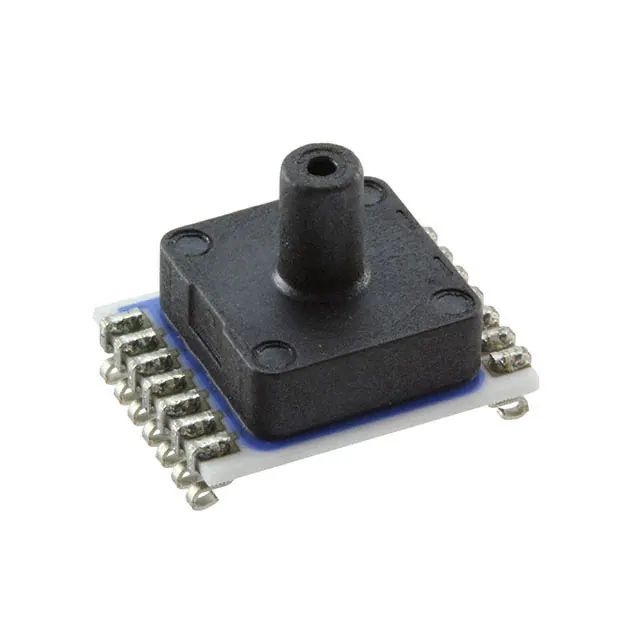

325536008-00SENSOR 14.5PSIG 0.12" 16BIT |
3,800 | - |
|
Datasheet | - | 14-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | -5.8PSI ~ 14.5PSI (-40kPa ~ 100kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | Male - 0.12" (3mm) Tube | Barbless | - | SMD (SMT) Tab | - | -40°C ~ 85°C | - | - | Surface Mount | - |
|
325541009-00SENSOR 203.05PSIA 16BIT |
4,672 | - |
|
Datasheet | - | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 203.05PSI (1400kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
M326M-000002-007BGSENSOR 101.53PSIG 5V |
2,316 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Obsolete | - | Vented Gauge | 101.53PSI (700kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 8V ~ 30V | - | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 203PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M3234-000002-007BGSENSOR 101.53PSIG 4.5V |
1,328 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Obsolete | - | Vented Gauge | 101.53PSI (700kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | Threaded | Amplified Output, Temperature Compensated | Connector | 203PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M325B-000002-100BGSENSOR 1450.38PSIG .02A |
2,692 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Obsolete | - | Vented Gauge | 1450.38PSI (10000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | - | Threaded | Amplified Output, Temperature Compensated | Connector | 2901PSI (20000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
SM1291-BCE-T-015-000SENSOR 15PSIG 0.12" 16BIT |
4,992 | - |
|
Datasheet | SM1000 | 16-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | - | Gauge | 15PSI (103.42kPa) | I2C | 16 b | ±1.5% | 3V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 45PSI (310.26kPa) | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
SM1291-BCE-S-015-000SENSOR 15PSIG 0.12" 16BIT |
2,197 | - |
|
Datasheet | SM1000 | 16-SOIC Module, Dual Top Ports | Tube | Active | - | Gauge | 15PSI (103.42kPa) | I2C | 16 b | ±1.5% | 3V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 45PSI (310.26kPa) | -40°C ~ 105°C | - | - | Surface Mount | - |
