PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

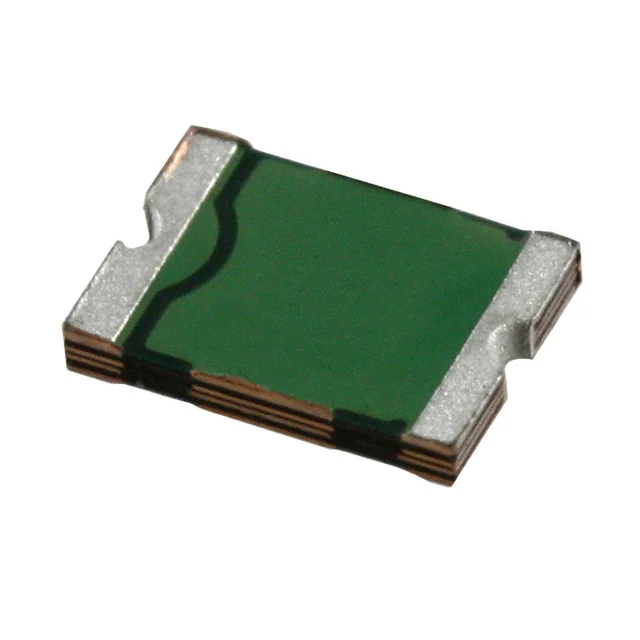

PTS181224V150PTC RESET FUSE 24V 1.5A 1812 |
172,246 |
1000+：$0.05721 2000+：$0.05276 3000+：$0.05030 5000+：$0.04736 7000+：$0.04552 10000+：$0.04364 |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 1.5 A | 3 A | 20 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
0ZCM0002FF2GPTC RESET FUSE 60V 20MA 0603 |
28,314 |
4000+：$0.04895 8000+：$0.04510 12000+：$0.04298 20000+：$0.04043 28000+：$0.03883 40000+：$0.03720 |
|
Datasheet | 0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 60V | 20 mA | 60 mA | 40 A | 1 s | 12 Ohms | 70 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.033" (0.85mm) | - |
,-Concave.jpg "0ZCF0150FF2C")
|
0ZCF0150FF2CPTC RESET FUSE 33V 1.5A 2920 |
66,441 |
2000+：$0.08452 4000+：$0.07788 6000+：$0.07423 10000+：$0.06985 14000+：$0.06709 20000+：$0.06428 |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 100 A | 2 s | 50 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
0ZCJ0075FF2EPTC RESET FUSE 8V 750MA 1206 |
63,555 |
3000+：$0.06178 6000+：$0.05692 9000+：$0.05425 15000+：$0.05104 21000+：$0.04902 30000+：$0.04696 |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 8V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
|
0ZCF0110FF2CPTC RESET FUSE 33V 1.1A 2920 |
89,910 |
2000+：$0.08452 4000+：$0.07788 6000+：$0.07423 10000+：$0.06985 14000+：$0.06709 20000+：$0.06428 |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
MF-MSMF110/16-2PTC RESET FUSE 16V 1.1A 1812 |
104,309 |
2000+：$0.10150 4000+：$0.09352 6000+：$0.09240 |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
MF-FSMF035X-2PTC RESET FUSE 6V 350MA 0603 |
17,985 |
6000+：$0.09250 12000+：$0.08514 18000+：$0.08109 30000+：$0.07812 |
|
Datasheet | 0603 (1608 Metric), Concave | Multifuse®, MF-FSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 200 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.026" (0.65mm) | - |
|
PRG18BB330MB1RBPTC RESET FUSE 24V 36MA 0603 |
36,970 |
4000+：$0.05569 8000+：$0.05130 12000+：$0.04888 20000+：$0.04599 28000+：$0.04416 40000+：$0.04375 |
|
Datasheet | 0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 24V | 36 mA | 71 mA | 900 mA | - | - | - | 33 Ohms | -20°C ~ 75°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
PRG18BB471MB1RBPTC RESET FUSE 24V 10MA 0603 |
96,797 |
4000+：$0.05904 8000+：$0.05438 12000+：$0.05182 20000+：$0.04874 28000+：$0.04682 40000+：$0.04638 |
|
Datasheet | 0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 24V | 10 mA | 21 mA | 60 mA | - | - | - | 470 Ohms | -20°C ~ 75°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
MF-MSMF075/24-2PTC RESET FUSE 24V 750MA 1812 |
61,812 |
2000+：$0.10150 4000+：$0.09352 6000+：$0.08913 10000+：$0.08386 14000+：$0.08054 20000+：$0.07716 |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
MF-MSMF110/24X-2PTC RESET FUSE 24V 1.1A 1812 |
23,598 |
1500+：$0.11686 3000+：$0.10768 4500+：$0.10264 7500+：$0.09658 10500+：$0.09277 15000+：$0.08888 |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 2.2 A | 20 A | 500 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCJ0050AF2EPTC RESET FUSE 24V 500MA 1206 |
216,341 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 24V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
0ZCH0075AF2EPTC RESET FUSE 24V 750MA 1210 |
59,887 |
3000+：$0.06548 6000+：$0.06034 9000+：$0.05750 15000+：$0.05410 21000+：$0.05196 30000+：$0.04978 |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
,-Concave.jpg "0ZCG0110BF2B")
|
0ZCG0110BF2BPTC RESET FUSE 24V 1.1A 1812 |
46,099 |
1500+：$0.06702 3000+：$0.06178 4500+：$0.05890 7500+：$0.05544 10500+：$0.05326 15000+：$0.05104 |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCG0150BF2CPTC RESET FUSE 24V 1.5A 1812 |
67,686 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 24V | 1.5 A | 3 A | 100 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCG0075BF2BPTC RESET FUSE 33V 750MA 1812 |
159,807 |
1500+：$0.07104 3000+：$0.06548 4500+：$0.06243 7500+：$0.05876 10500+：$0.05646 15000+：$0.05410 |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCJ0075AF2EPTC RESET FUSE 16V 750MA 1206 |
204,884 |
3000+：$0.06548 6000+：$0.06034 9000+：$0.05750 15000+：$0.05410 21000+：$0.05196 30000+：$0.04978 |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 16V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
0ZCK0050FF2EPTC RESET FUSE 6V 500MA 0805 |
72,593 |
3000+：$0.06164 6000+：$0.05679 9000+：$0.05412 15000+：$0.05092 21000+：$0.04890 30000+：$0.04685 |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCK | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
0ZCK0075FF2EPTC RESET FUSE 6V 750MA 0805 |
27,814 | - |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCK | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
0ZCF0075AF2CPTC RESET FUSE 60V 750MA 2920 |
138,557 |
2000+：$0.08958 4000+：$0.08256 6000+：$0.07868 10000+：$0.07404 14000+：$0.07112 20000+：$0.06813 |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 100 A | 300 ms | 180 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
