ELECTRONIC COMPONENTS
PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZCB0110FF2EPTC RESET FUSE 6V 1.1A 1210 |
4,735 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCB0150FF2EPTC RESET FUSE 6V 1.5A 1210 |
3,365 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0075AF2BPTC RESET FUSE 24V 750MA 1812 |
8,623 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0075BF2BPTC RESET FUSE 33V 750MA 1812 |
7,018 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0110BF2BPTC RESET FUSE 24V 1.1A 1812 |
7,223 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
|
0ZCC0150AF2CPTC RESET FUSE 12V 1.5A 1812 |
5,059 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
0ZCC0150BF2CPTC RESET FUSE 24V 1.5A 1812 |
9,630 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 1.5 A | 3 A | 100 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0160AF2CPTC RESET FUSE 12V 1.6A 1812 |
6,971 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
|
0ZCC0260FF2CPTC RESET FUSE 6V 2.6A 1812 |
3,967 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|

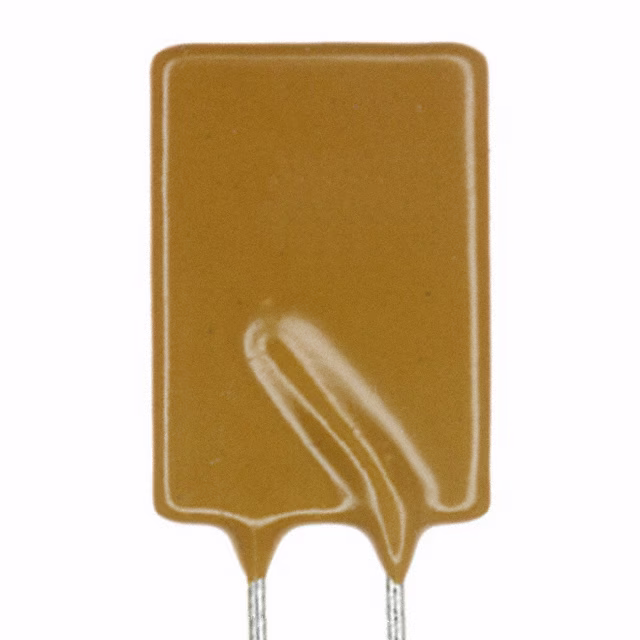

0ZRA0800FF1APTC RESET FUSE 16V 8A RADIAL |
4,509 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 9 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
