ELECTRONIC COMPONENTS
PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59772B0120A070PTC RESET FUSE 420V RADIAL DISC |
893 | - |
|
Datasheet | Radial, Disc | B59772 | Bulk | Active | Ceramic | 420V | - | 86 mA | 1.4 A | 3 s | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
B59315P1080A062THERMISTOR PTC 25% 4032 |
767 | - |
|
Datasheet | 4032 (1080 Metric) | B59315 | Tape & Reel (TR) | Active | Ceramic | 80V | 80 mA | 165 mA | 1.6 A | - | 9.6 Ohms | 16 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | 0.150" (3.80mm) | - |
|
B59955C0120A070PTC RESET FUSE 30V 850MA RADIAL |
1,606 | - |
|
Datasheet | Radial, Disc | B59955 | Bulk | Active | Ceramic | 30V | 850 mA | 1.7 A | 5.5 A | - | - | - | 800 mOhms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
B59850C0160A070PTC RESET FUSE 160V 250MA RADIAL |
119 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 160V | 250 mA | 500 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
B59870C0120A051PTC RESET FUSE 265V 100MA RADIAL |
10,321 | - |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59873C0120A051PTC RESET FUSE 265V 70MA RADIAL |
4,000 | - |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 70 mA | 140 mA | 1 A | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

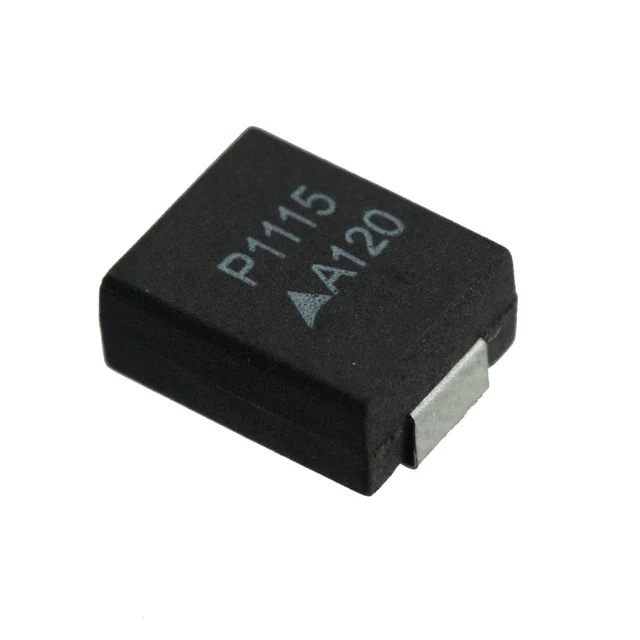

B59115P1120A062PTC RESET FUSE 80V 70MA 3225 |
1,900 | - |
|
Datasheet | 3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 70 mA | 145 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59945C0160A070PTC RESET FUSE 20V 1.5A RADIAL |
2,440 | - |
|
Datasheet | Radial, Disc | B59945 | Bulk | Active | Ceramic | 20V | 1.5 A | 3.05 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
|
B59945C0120A070PTC RESET FUSE 30V 1.3A RADIAL |
1,335 | - |
|
Datasheet | Radial, Disc | B59945 | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
B59840C0080A070PTC RESET FUSE 265V 170MA RADIAL |
304 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 170 mA | 350 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
