ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR12060CTRDIODE MOD SCHOTT 60V 120A 2TOWER |
4,296 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR12020CTDIODE MOD SCHOTT 20V 120A 2TOWER |
8,737 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12020CTRDIODE MOD SCHOTT 20V 120A 2TOWER |
4,798 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12030CTDIODE MOD SCHOTT 30V 120A 2TOWER |
3,779 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12030CTRDIODE MOD SCHOTT 30V 120A 2TOWER |
2,503 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

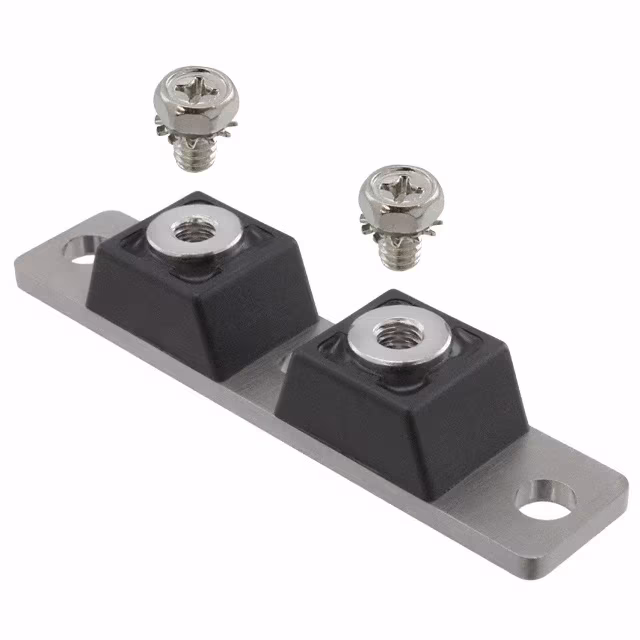

MBR12035CTDIODE MOD SCHOTT 35V 120A 2TOWER |
7,175 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR120100CTDIODE MOD SCHOT 100V 120A 2TOWER |
2,369 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR120100CTRDIODE MOD SCHOT 100V 120A 2TOWER |
4,320 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
MBR12035CTRDIODE MOD SCHOTT 35V 120A 2TOWER |
4,495 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR12080CTDIODE MOD SCHOTT 80V 120A 2TOWER |
7,514 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 80 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
