ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSRT150120DDIODE MOD GP 1200V 150A 3TOWER |
5,768 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1200 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15060DDIODE MODULE GP 600V 150A 3TOWER |
8,731 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15080DDIODE MODULE GP 800V 150A 3TOWER |
8,352 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 800 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 800 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150100DDIODE MOD GP 1000V 150A 3TOWER |
5,567 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1000 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150140DDIODE MOD GP 1400V 150A 3TOWER |
8,780 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1400 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150160DDIODE MOD GP 1600V 150A 3TOWER |
9,200 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MBRT20035RDIODE MOD SCHOTT 35V 100A 3TOWER |
9,660 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT20040RDIODE MOD SCHOTT 40V 100A 3TOWER |
2,701 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 40 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

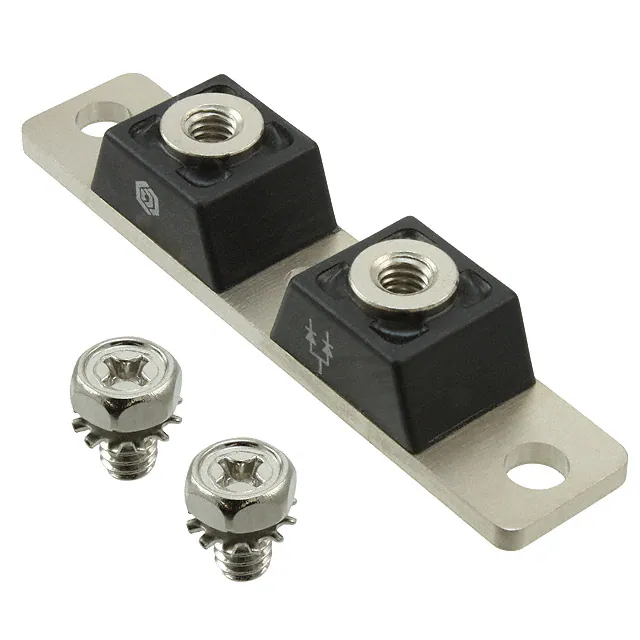

MBR40035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
6,525 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBRT20035DIODE MOD SCHOTT 35V 100A 3TOWER |
6,521 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
