ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBE807-TL-WDIODE ARRAY SCHOTTKY 30V 1A 5CPH |
4,961 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | 2 Independent | Schottky | 30 V | 1A | 530 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 15 µA @ 16 V | -55°C ~ 125°C | - | - | Surface Mount | 5-CPH |
|
NRVBD640CTG-VF01DIODE ARRAY SCHOTTKY 40V 3A DPAK |
4,803 | - |
|
Datasheet | SWITCHMODE™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | -65°C ~ 175°C | - | - | Surface Mount | DPAK |
|
NTSV30100CTGRECTIFIER DIODE, SCHOTTKY, 2 ELE |
420,564 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NRVHP8H200MFDWFT3GDIODE ARRAY GP 200V 4A 8DFN |
7,500 | - |
|
Datasheet | SWITCHMODE™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 4A | 910 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
SB40W03T-TL-EDIODE |
25,200 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
_418D-01.jpg "NTSB20100CT-1G")
|
NTSB20100CT-1GDIODE ARRAY SCHOT 100V 10A TO262 |
5,092 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 830 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
NTSJ2080CTGDIODE ARR SCHOT 80V 10A TO220 FP |
8,962 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 10A | 830 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 80 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-2 Full Pack |
|

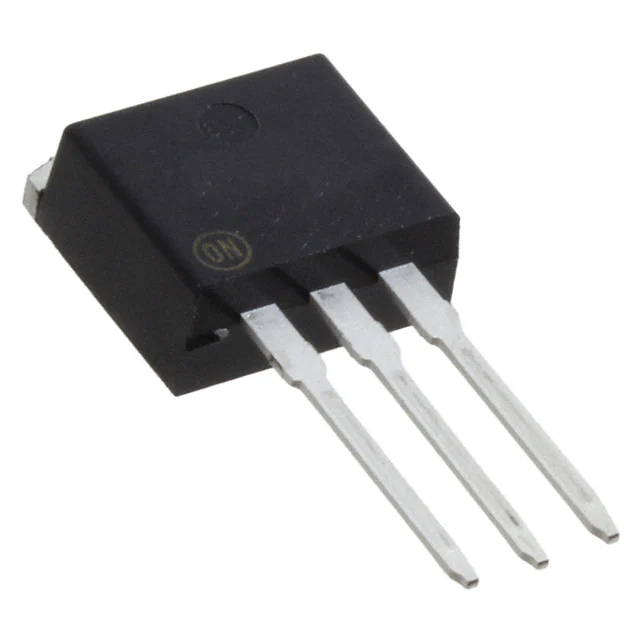

NTSB30120CT-1GDIODE ARRAY SCHOT 120V 15A TO262 |
3,534 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 15A | 1.08 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
|
MBR1535CTGDIODE ARR SCHOTT 35V 7.5A TO-220 |
4,783 | - |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 7.5A | 840 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | -65°C ~ 175°C | - | - | Through Hole | TO-220 |
|
|
NTSB30100CT-1GDIODE ARRAY SCHOT 100V 15A TO262 |
3,314 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
