ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PN410811DIODE MOD GP 800V 1200A POWRBLOK |
7,704 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 800 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN411011DIODE MODULE GP 1000V POWRBLOK |
7,792 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 1000 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1000 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN411211DIODE MODULE GP 1200V POWRBLOK |
5,847 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 1200 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD410611DIODE MOD GP 600V 1100A POWRBLOK |
9,250 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 600 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|

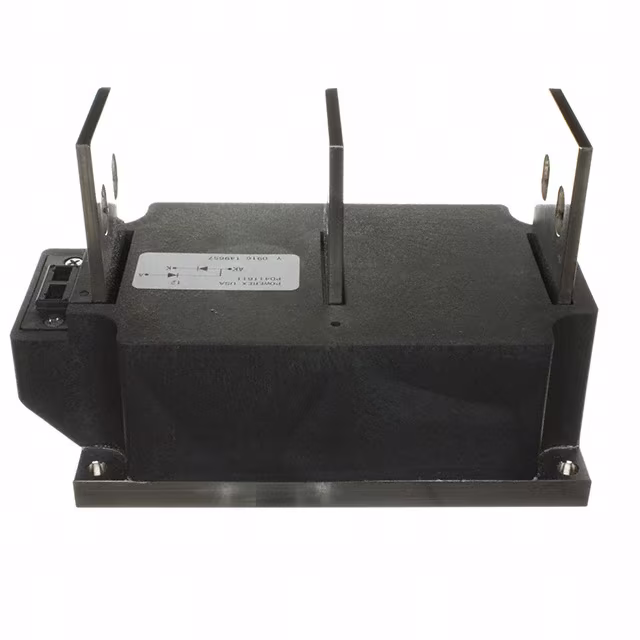

PD411611DIODE MODULE GP 1600V POWRBLOK |
3,002 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1600 V | 1100A | - | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD411811DIODE MODULE GP 1800V POWRBLOK |
6,160 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN412411DIODE MODULE GP 2400V POWRBLOK |
6,493 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 2400 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2400 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN412611DIODE MODULE GP 2600V POWRBLOK |
3,080 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 2600 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD412211DIODE MODULE GP 2200V POWRBLOK |
9,922 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 2200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN413610DIODE MODULE GP 3600V POWRBLOK |
6,371 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 3600 V | 1100A | 1.35 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 200 mA @ 3600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
