ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-80CPQ020-N3DIODE ARRAY GP 20V 40A TO-247AC |
1,343 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 20 V | 40A | 460 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5.5 mA @ 20 V | -65°C ~ 175°C | - | - | Through Hole | TO-247AC |
|
|
VS-MUR3020WT-N3DIODE ARRAY GP 200V 15A TO-247AC |
4,932 | - |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 22 ns | 10 µA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-247AC |
|
VS-U5FH60FA60DIODE MODULE GP 600V 30A SOT-227 |
3,951 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 30A (DC) | 1.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 61 ns | 100 nA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-RA160FA120DIODE MODULE GP 1200V 91A SOT227 |
1,442 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 1200 V | 91A | 1.27 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 150 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
VS-UFL330FA60DIODE MODULE GP 600V 243A SOT227 |
1,751 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 243A (DC) | 1.65 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 98 ns | 150 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
VS-402CNQ200PBFDIODE MOD SCHOTT 200V 551A TO244 |
2,059 | - |
|
Datasheet | - | TO-244AB | Box | Active | 1 Pair Common Cathode | Schottky | 200 V | 551A | 1.358 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 132 ns | 200 µA @ 200 V | -40°C ~ 175°C | - | - | Chassis Mount | TO-244 |
|
VS-VSKC91/04DIODE MODULE GP 400V 50A ADDAPAK |
4,690 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Standard | 400 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
|
VS-VSKCS203/100DIODE MOD SCHOTTKY 100V ADDAPAK |
2,015 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 100A | 990 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|

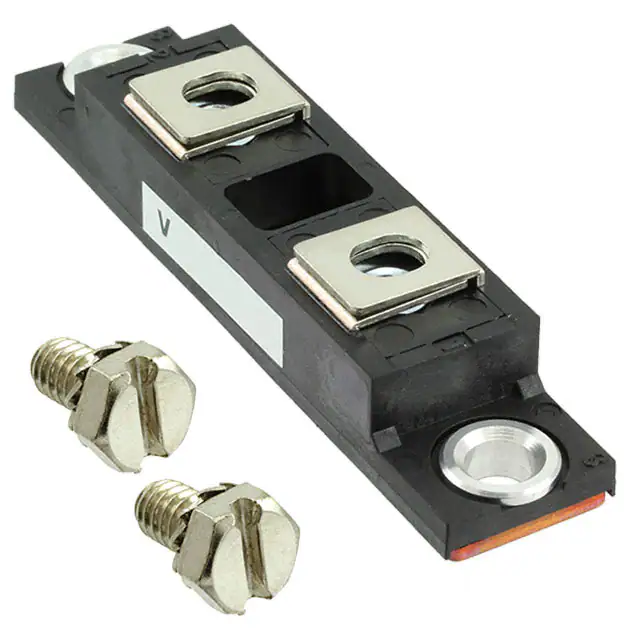

VS-VSUD360CW40DIODE MOD GP 400V 510A TO-244AB |
1,456 | - |
|
Datasheet | FRED Pt® | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Standard | 400 V | 510A | 1.5 V @ 360 A | - | 74 ns | 1.28 mA @ 400 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-244AB |
|
V10KM120DUHM3/IDIODE ARR SCHOT 120V 10A FLATPAK |
733 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | 2 Independent | Schottky | 120 V | 10A | 890 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 120 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | FlatPAK 5x6 (Dual) |
