ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DST3060LCDIODE ARR SCHOTT 60V 15A TO220AB |
7,451 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 550 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 60 V | -55°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
DST40100CDIODE ARR SCHOT 100V 20A TO220AB |
9,926 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 750 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
MBRB10100CTDIODE ARRAY SCHOTT 100V 5A TO263 |
4,813 | - |
|
Datasheet | MBR | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
DSTB30200CDIODE ARRAY SCHOT 200V 15A TO263 |
2,167 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 200 V | 15A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 160 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
DSTB60100CDIODE ARRAY SCHOT 100V 30A TO263 |
2,849 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 900 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 (D2PAK) |
|

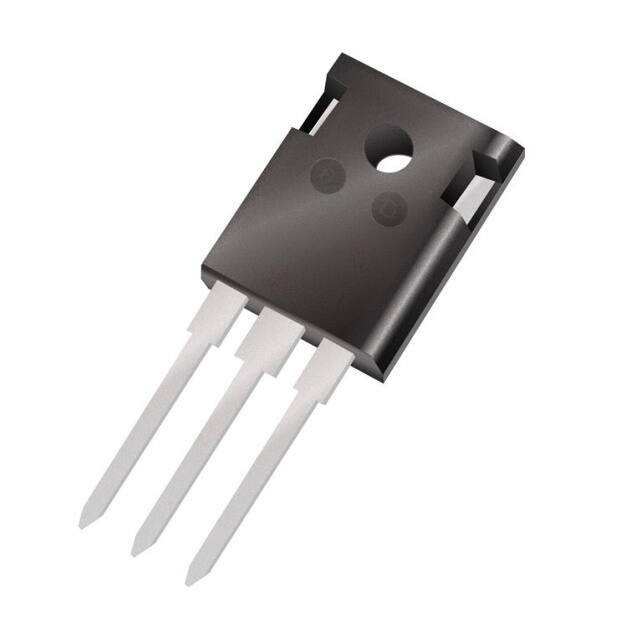

LSIC2SD120E20CCADIODE ARRAY SIC 1200V 32A TO-247 |
2,910 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 32A (DC) | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247 |
|
|
LSIC2SD120E30CCADIODE ARRAY SIC 1200V 45A TO-247 |
4,526 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 45A (DC) | 1.8 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247 |
|
|
LSIC2SD120E40CCADIODE ARRAY SIC 1200V 55A TO-247 |
9,218 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 55A (DC) | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247 |
|
MD1690A-BM2MMDIODE MODULE GP 1600V 90A A3 |
2,614 | - |
|
Datasheet | - | A-3 Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 90A | 1.6 V @ 280 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | A3 |
|
|
MD16110A-BM2MMDIODE MODULE GP 1600V 110A A3 |
6,922 | - |
|
Datasheet | - | A-3 Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 110A | 1.6 V @ 350 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | A3 |
