ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFT20140DIODE MODULE GP 400V 100A MODULE |
6,698 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 100A | 1.25 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 400 V | - | - | - | Screw Mount | Module |
|
APT2X21DC120JDIODE MOD SIC 1200V 20A SOT-227 |
2,278 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
APT2X41DC60JDIODE MOD SIC 600V 40A SOT-227 |
5,296 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 600 V | - | - | - | Chassis Mount | SOT-227 |
|
|
APT2X41DC120JDIODE MOD SIC 1200V 40A SOT-227 |
9,645 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
APT2X61DC60JDIODE MODULE SIC 600V 60A ISOTOP |
6,825 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 60A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 1.2 mA @ 600 V | - | - | - | Chassis Mount | ISOTOP® |
|
CPT30060DIODE MOD SCHOTT 60V 150A 2TOWER |
5,817 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 150A | 820 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 60 V | - | - | - | Chassis Mount | Twin Tower |
|
CPT50060DIODE MOD SCHOTT 60V 250A 2TOWER |
6,610 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 250A | 730 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 60 V | - | - | - | Chassis Mount | Twin Tower |
|

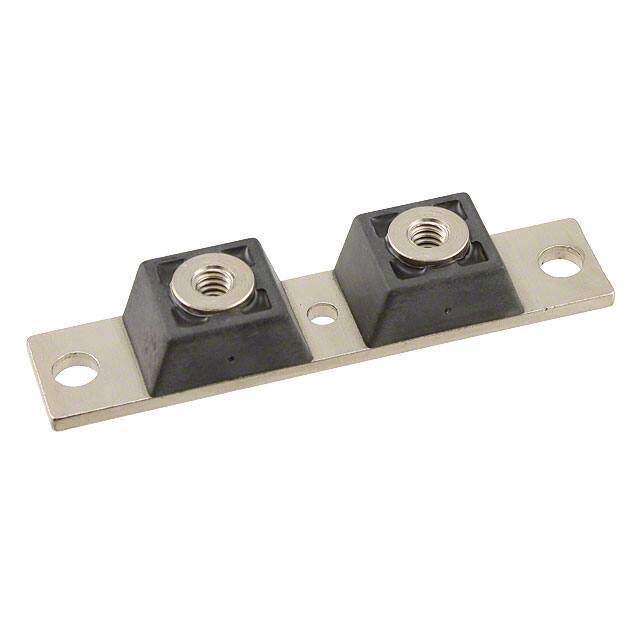

CPT600150DDIODE MOD SCHOT 150V 300A 2TOWER |
5,602 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Series Connection | Schottky | 150 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 7 mA @ 150 V | - | - | - | Chassis Mount | Twin Tower |
|
CPT60145DIODE MOD SCHOTT 45V 300A 2TOWER |
6,177 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 300A | 550 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 21 mA @ 45 V | - | - | - | Chassis Mount | Twin Tower |
|
FST60100DIODE MOD SCHOTT 100V 60A TO-249 |
4,081 | - |
|
Datasheet | - | TO-249-9, TO-249AA Variant | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 60A | 860 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | - | - | Chassis Mount | TO-249 |
