ELECTRONIC COMPONENTS
Diode Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M50100THC1600DIODE MOD GP 1600V 100A MOD |
213 | - |
|
Datasheet | - | Module | Bulk | Active | 3 Common Cathode | Standard | 1600 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
M50100THA1600DIODE MOD GP 1600V 100A MOD |
2,756 | - |
|
Datasheet | - | Module | Bulk | Active | 3 Common Anode | Standard | 1600 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
M5060THA1200DIODE MODULE GP 1200V 60A MODULE |
4,840 | - |
|
Datasheet | - | Module | Bulk | Active | 3 Common Anode | Standard | 1200 V | 60A | 1.35 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
M5060THC600DIODE MODULE GP 600V 60A MODULE |
2,979 | - |
|
Datasheet | - | Module | Bulk | Active | 3 Common Cathode | Standard | 600 V | 60A | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
F1892CCD600DIODE MODULE GP 600V 90A MODULE |
4,965 | - |
|
Datasheet | - | Module | Bulk | Active | 1 Pair Common Cathode | Standard | 600 V | 90A (DC) | 1.4 V @ 270 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|

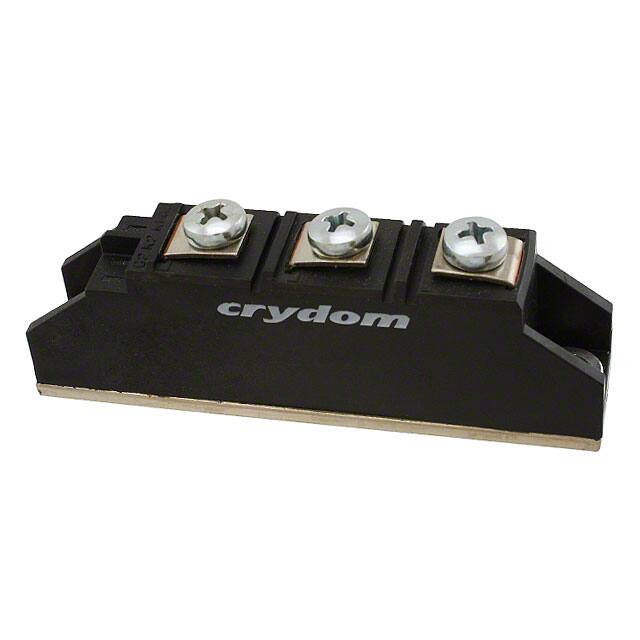

F1842CCD400DIODE MODULE GP 400V 40A MODULE |
2,893 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | 1 Pair Common Cathode | Standard | 400 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
B482F-2TDIODE MODULE GP 1200V 35A MODULE |
3,197 | - |
|
Datasheet | B48 | B48 Module | Bulk | Active | 1 Pair Series Connection | Standard | 1200 V | 35A | 1.25 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
M5060CC1200DIODE MODULE GP 1200V 60A MODULE |
4,782 | - |
|
Datasheet | - | Module | Bulk | Active | 1 Pair Common Cathode | Standard | 1200 V | 60A (DC) | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
F1857CCD400DIODE MODULE GP 400V 55A MODULE |
4,602 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | 1 Pair Common Cathode | Standard | 400 V | 55A (DC) | 1.4 V @ 165 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
F18107RD1200DIODE MODULE GEN PURP 1200V 105A |
4,731 | - |
|
Datasheet | F18 | Module | Bulk | Not For New Designs | 1 Pair Series Connection | Standard | 1200 V | 105A (DC) | 1.65 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis Mount | - |
