ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5615USDIODE GEN PURP 200V 1A D-5A |
630 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 nA @ 200 V | 45pF @ 12V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N6642DIODE GEN PURP 75V 300MA DO35 |
6,996 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N5554DIODE GEN PURP 1KV 5A AXIAL |
118 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 2 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|

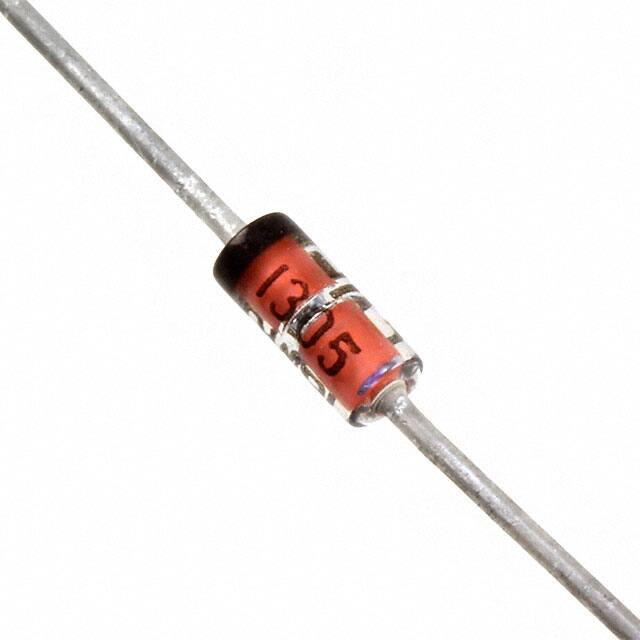

JANTX1N5712-1DIODE SCHOTTKY 20V 750MA DO35 |
154 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 20 V | 750mA | 1 V @ 35 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5804USDIODE GEN PURP 100V 1A D-5A |
1,182 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N5551USDIODE GEN PURP 400V 5A B SQ-MELF |
155 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 400 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/420 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTXV1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
166 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTXV1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
148 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANS1N6642DIODE GEN PURP 75V 300MA DO204AH |
434 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

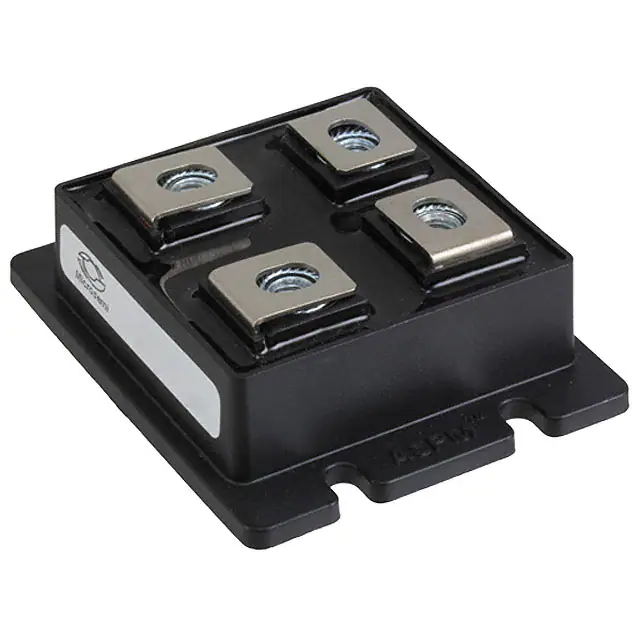

APTDF400U120GDIODE GEN PURP 1.2KV 450A LP4 |
478 | - |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 1200 V | 450A | 2.5 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 2.5 mA @ 1200 V | - | - | - | Chassis Mount | LP4 | - |
