ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4247DIODE GEN PURP 600V 1A AXIAL |
338 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 600 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
1N3595UR-1DIODE GP 125V 150MA DO213AA |
624 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|

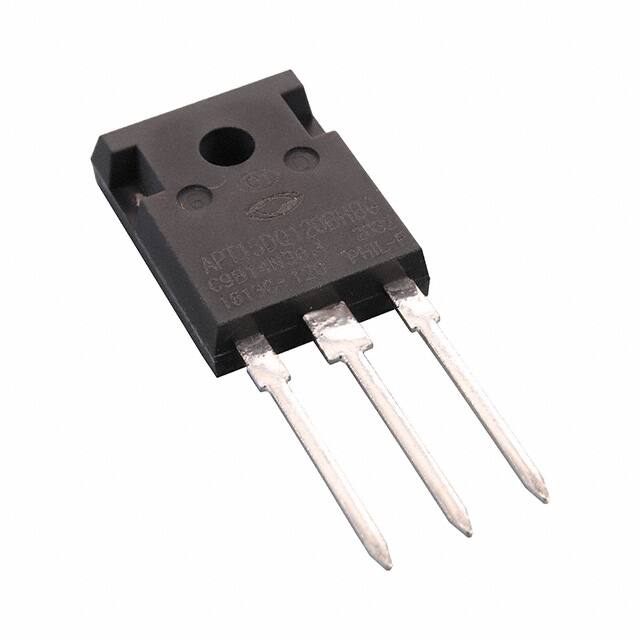

APT15DQ120BHBGDIODE GEN PURP 1.2KV 15A TO247-3 |
101 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1200 V | 15A | 3.5 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
MSC030SDA070KDIODE SIL CARB 700V 30A TO220-2 |
119 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 30A | 1.5 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
MSC015SDA120BDIODE SCHOTTKY 1.2KV 15A TO247 |
134 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 15A | 1.5 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
JANTX1N3595UR-1DIODE GP 125V 150MA DO213AA |
141 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | Military | MIL-S-19500-241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
MSC020SDA120KDIODE SIL CARB 1.2KV 49A TO220-2 |
105 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
UES1104DIODE GEN PURP 200V 1A AXIAL |
105 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 200 V | - | - | - | Through Hole | A, Axial | -55°C ~ 150°C |
|
|
MNS1N6627US/TRDIODE GEN PURP 440V 1.75A E-MELF |
483 | - |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 440 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | - | - | - | Surface Mount | E-MELF | -65°C ~ 150°C |
|
|
1N4153UR/TRSIGNAL OR COMPUTER DIODE |
610 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
