ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5802US/TRDIODE GEN PURP 50V 1A D-5A |
4,810 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTXV1N5553/TRDIODE GEN PURP 800V 5A |
4,014 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTXV1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
5,834 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JANTX1N6625US/TRDIODE GEN PURP 1.1KV 1A D-5A |
2,209 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 1100 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N6625U/TRDIODE GP 1.1KV 1A A SQ-MELF |
9,328 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1100 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|

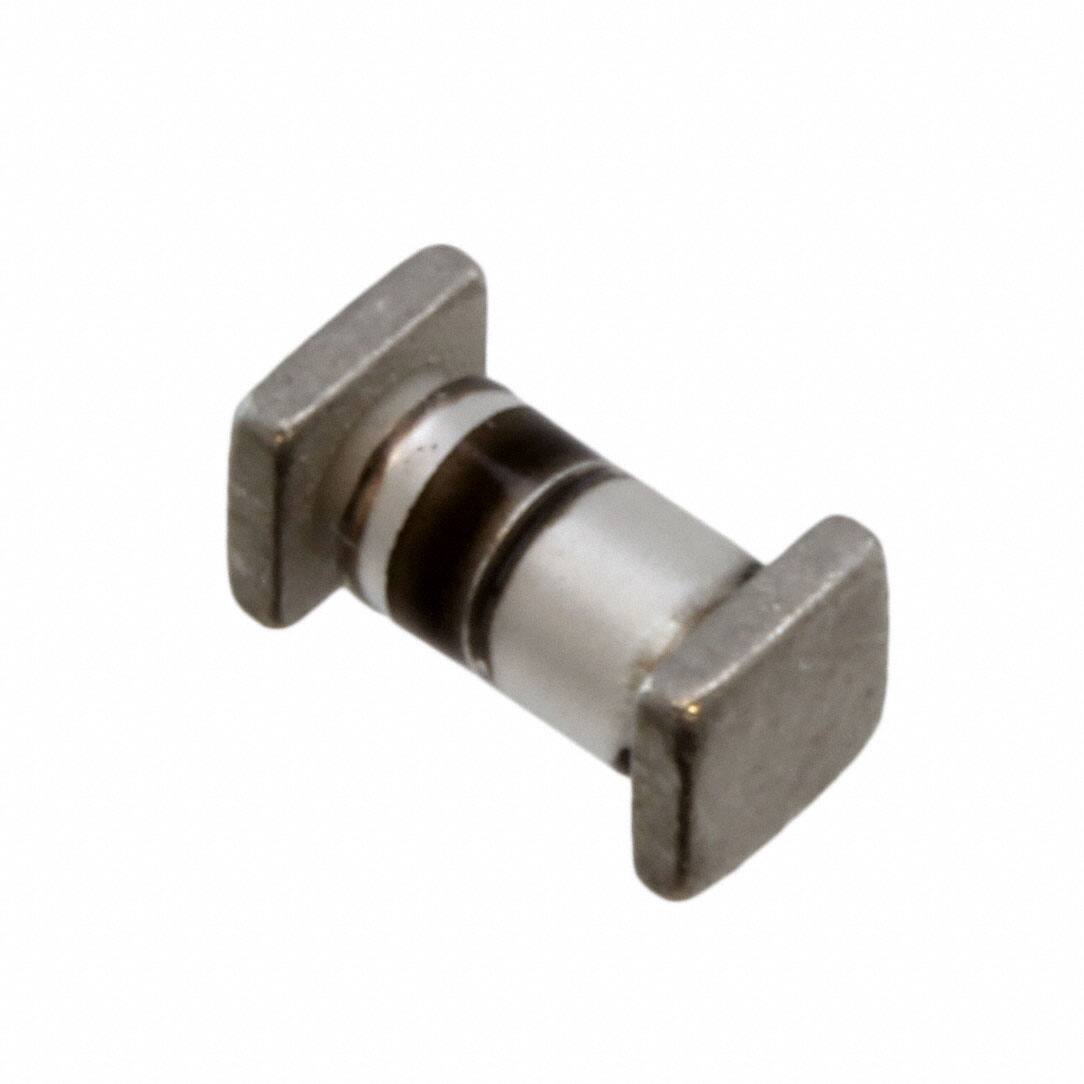

JAN1N6620USDIODE GEN PURP 220V 2A D-5A |
6,011 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 220 V | 2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JAN1N6620UDIODE GEN PURP 200V 1.2A D-5A |
8,071 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTX1N5190/TRDIODE GEN PURP 600V 3A |
4,324 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
|
|
JANTX1N5189/TRDIODE GEN PURP 500V 3A B |
3,409 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | Military | MIL-PRF-19500/424 | Through Hole | B | -65°C ~ 175°C |
|
|
JAN1N6625US/TRUFR,FRR |
2,071 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
