ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3480DIODE GEN PURP 800V 45A DO203AB |
2,930 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 45A | 1.15 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 800 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
JANTX1N3070-1DIODE GEN PURP 175V 100MA DO7 |
1,743 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 175 V | - | Military | MIL-PRF-19500/169 | Through Hole | DO-7 | -65°C ~ 175°C |
|

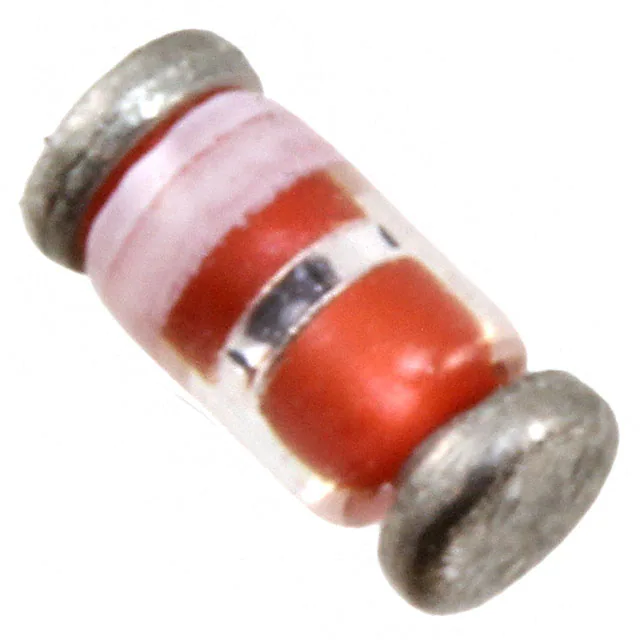

CDS5711UR-1DIODE SCHOTTKY DO-213AA |
2,374 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JANTX1N6663DIODE GEN PURP 600V 500MA DO35 |
3,847 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 600 V | 500mA | 1 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 nA @ 600 V | - | Military | MIL-PRF-19500/587 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N6779DIODE GEN PURP 600V 15A TO257 |
3,457 | - |
|
Datasheet | - | TO-257-3 | Bulk | Active | Standard | 600 V | 15A | 1.6 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 480 V | 300pF @ 5V, 1MHz | Military | MIL-PRF-19500/647 | Through Hole | TO-257 | 150°C (Max) |
|

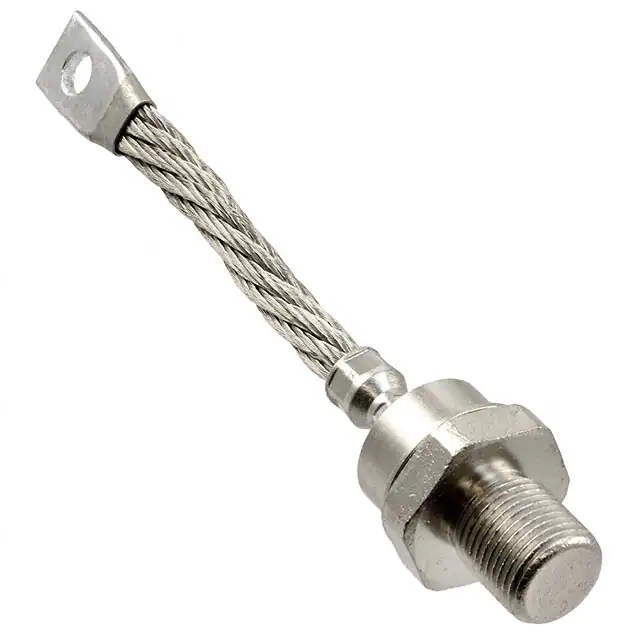

JAN1N3174DIODE GP 1KV 300A DO205AB DO9 |
4,363 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1000 V | 300A | 1.55 V @ 940 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 1000 V | - | Military | MIL-PRF-19500/211 | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
|
|
JANTX1N4148UR-1DIODE GEN PURP 75V 200MA DO213AA |
4,141 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
1N5614DIODE GEN PURP 200V 1A AXIAL |
8,128 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
JANTX1N5618DIODE GEN PURP 600V 1A AXIAL |
2,733 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
1N5806DIODE GEN PURP 150V 1A A AXIAL |
6,263 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 150 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
