ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3620DIODE GEN PURP 200V 70A DO203AB |
8,758 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 200 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
S3670STD RECTIFIER |
5,186 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S3660DIODE GEN PURP 600V 70A DO203AB |
5,657 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 600 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
S3880DIODE GEN PURP 800V 100A DO5 |
2,727 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 100A | 1.15 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 800 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
S3610DIODE GEN PURP 100V 70A DO203AB |
2,666 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 100 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
S3720DIODE GEN PURP 200V 85A DO5 |
3,149 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 85A | 1.15 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 200 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
S38120DIODE GEN PURP 1.2KV 100A DO5 |
5,746 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1200 V | 100A | 1.15 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 1200 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|

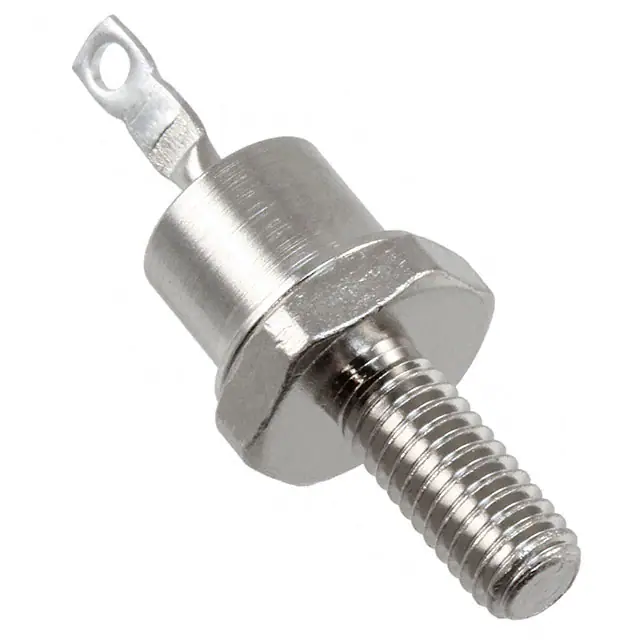

1N5814DIODE GEN PURP 100V 20A DO203AA |
8,895 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 100 V | 300pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA | -65°C ~ 175°C |
|
|
JANS1N5620USDIODE GEN PURP 800V 1A A SQ-MELF |
7,082 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/427 | Surface Mount | A, SQ-MELF | -65°C ~ 200°C |
|
|
JANS1N5620US/TRUFR,FRR |
2,169 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Surface Mount | A, SQ-MELF | -65°C ~ 200°C |
