ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "AP01CV1")
|
AP01CV1DIODE GEN PURP 1KV 200MA AXIAL |
8,209 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 200mA | 4 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 200 ns | 100 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|

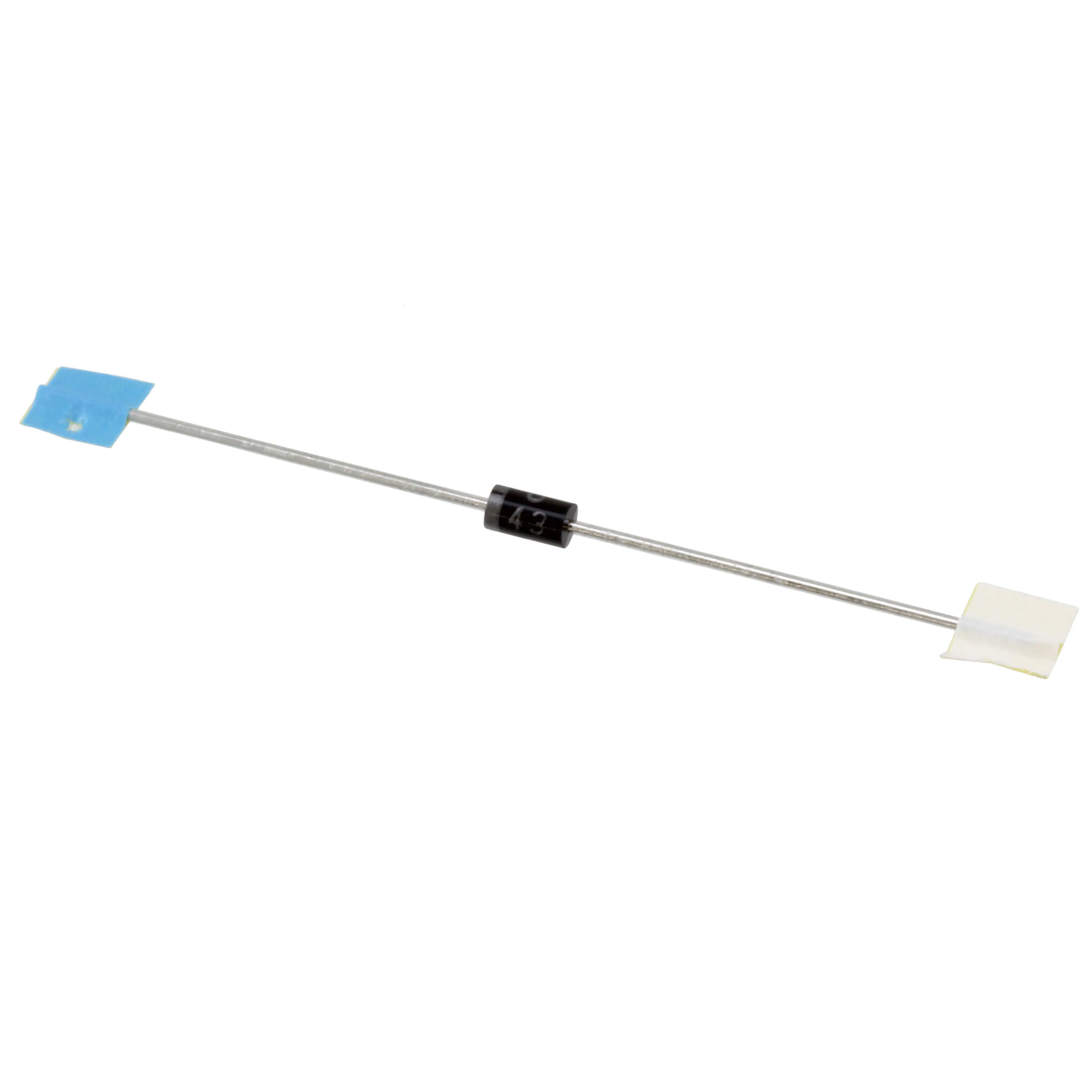

EM 1CV1DIODE GEN PURP 1KV 1A AXIAL |
8,102 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.05 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
EM 2AV1DIODE GEN PURP 600V 1.2A AXIAL |
5,882 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 600 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
EM 2V1DIODE GEN PURP 400V 1.2A AXIAL |
3,105 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 400 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
ES01FV1DIODE GEN PURP 1.5KV 500MA AXIAL |
3,879 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1500 V | 500mA | 2 V @ 500 mA | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1500 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
FMX-1106SDIODE GEN PURP 600V 10A TO220F |
2,837 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | Standard | 600 V | 10A | 1.5 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 50 µA @ 600 V | - | - | - | Through Hole | TO-220F-2L | -40°C ~ 150°C |
|
SG-10LXZ23RDIODE FOR ALTERNATOR (SURFACE MO |
4,619 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard, Reverse Polarity | 17 V | 35A | 1.05 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LXZ23SDIODE FOR ALTERNATOR (SURFACE MO |
5,069 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard | 17 V | 35A | 1.05 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LRDIODE FOR ALTERNATOR (SURFACE MO |
7,295 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard, Reverse Polarity | 20000 V | 30A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LSDIODE FOR ALTERNATOR (SURFACE MO |
2,440 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard | 20000 V | 30A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
