ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

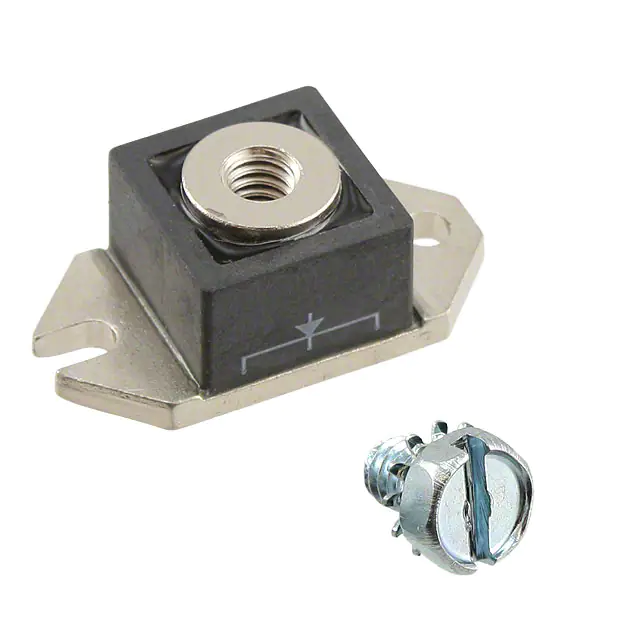

HS18140DIODE SCHOTTKY 40V 180A HALF-PAK |
3,078 | - |
|
Datasheet | - | HALF-PAK | Bulk | Obsolete | Schottky | 40 V | 180A | 700 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 40 V | 7500pF @ 5V, 1MHz | - | - | Chassis Mount | HALF-PAK | - |
|
SSUR3140RECTIFIER |
2,150 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | - | 115pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
SSUR3140RRECTIFIER |
2,480 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | - | 115pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
SSUR3160RECTIFIER |
3,949 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | - | 115pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
SSUR3160RRECTIFIER |
2,307 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | - | 115pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
SBT2535RECTIFIER |
3,503 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 35 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | TO-3 | -65°C ~ 150°C |
|
|
SBT2540RECTIFIER |
8,185 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 40 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | TO-3 | -65°C ~ 150°C |
|
|
SBT2545RECTIFIER |
4,417 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 45 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | TO-3 | -65°C ~ 150°C |
|
|
SBT3040RECTIFIER |
3,528 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 40 V | 30A | 700 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | TO-3 | -65°C ~ 175°C |
|
|
SBT3045RECTIFIER |
2,393 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 45 V | 30A | 700 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | TO-3 | -65°C ~ 175°C |
