ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W5282ZC240DIODE GEN PURP 2.4KV 5282A W7 |
7,360 | - |
|
Datasheet | - | DO-200AE | Box | Active | Standard | 2400 V | 5282A | 1.35 V @ 6000 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 mA @ 2400 V | - | - | - | Chassis Mount | W7 | -55°C ~ 160°C |
|
|
W5282ZC300DIODE GEN PURP 3KV 5282A W7 |
2,080 | - |
|
Datasheet | - | DO-200AE | Box | Active | Standard | 3000 V | 5282A | 1.35 V @ 6000 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 mA @ 3000 V | - | - | - | Chassis Mount | W7 | -55°C ~ 160°C |
|
|
M1583VF450DIODE GEN PURP 4.5KV 1583A W43 |
9,383 | - |
|
Datasheet | - | DO-200AD | Box | Active | Standard | 4500 V | 1583A | 2.8 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 150 mA @ 4500 V | - | - | - | Chassis Mount | W43 | -40°C ~ 150°C |
|
|
M1565VF450DIODE GEN PURP 4.5KV 1565A W43 |
9,398 | - |
|
Datasheet | - | DO-200AD | Box | Active | Standard | 4500 V | 1565A | 1.8 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 100 mA @ 4500 V | - | - | - | Chassis Mount | W43 | -40°C ~ 125°C |
|
M2325HA400DIODE GEN PURP 4KV 2325A W121 |
2,060 | - |
|
Datasheet | - | DO-200AD | Box | Active | Standard | 4000 V | 2325A | 2.6 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | 5.4 µs | 150 mA @ 4000 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|

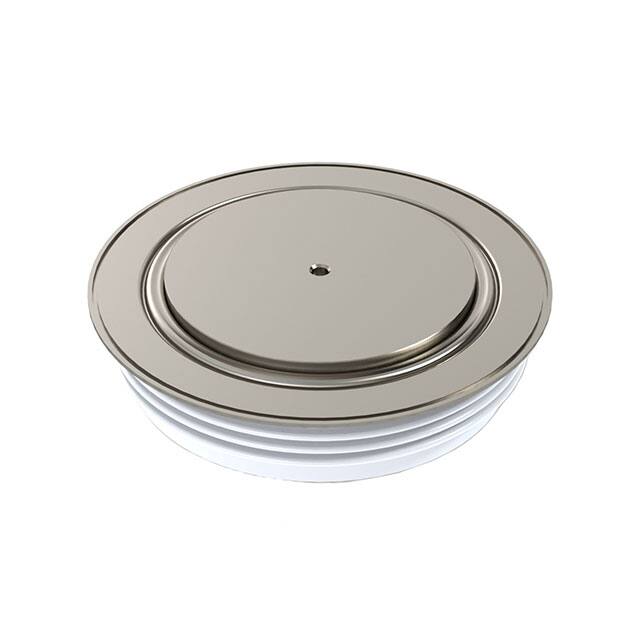

W2865HA680DIODE GEN PURP 6.8KV 4825A W121 |
5,158 | - |
|
Datasheet | - | DO-200AD | Box | Active | Standard | 6800 V | 4825A | 4.04 V @ 10000 A | Standard Recovery >500ns, > 200mA (Io) | 53 µs | 100 mA @ 6800 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
M2325HA450DIODE GEN PURP 4.5KV 2325A W121 |
9,387 | - |
|
Datasheet | - | DO-200AD | Box | Active | Standard | 4500 V | 2325A | 2.6 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | 5.4 µs | 150 mA @ 4500 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
W2865HA720DIODE GEN PURP 7200V 4825A W121 |
5,150 | - |
|
Datasheet | - | DO-200AD | Box | Active | Standard | 7200 V | 4825A | 4.04 V @ 10000 A | Standard Recovery >500ns, > 200mA (Io) | 53 µs | 100 mA @ 7200 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
W108CED180DIODE GEN PURP 1.8KV 10815A W112 |
6,999 | - |
|
Datasheet | - | DO-200AE | Box | Active | Standard | 1800 V | 10815A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis Mount | W112 | - |
|
|
W108CED220DIODE GEN PURP 2.2KV 10815A W112 |
5,818 | - |
|
Datasheet | - | DO-200AE | Box | Active | Standard | 2200 V | 10815A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis Mount | W112 | - |
