ELECTRONIC COMPONENTS
SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VKF55-08IO7RECT BRIDGE 1PH 800V FO-T-A |
8,552 | - |
|
Datasheet | - | FO-T-A | Box | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 800 V | 53 A | - | 1.5 V | 100 mA | 550A, 600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VKF55-14IO7RECT BRIDGE 1PH 1400V FO-T-A |
4,865 | - |
|
Datasheet | - | FO-T-A | Box | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 1.4 kV | 53 A | - | 1.5 V | 100 mA | 550A, 600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

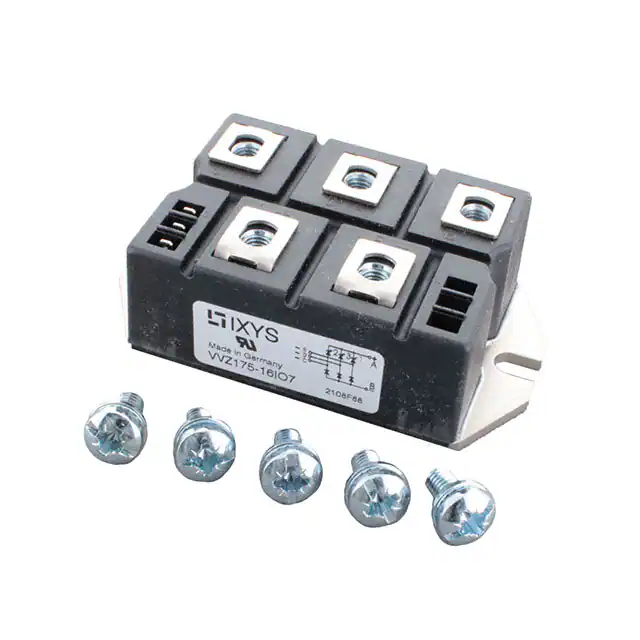

VTO110-12IO7RECT BRIDGE 3PH 1200V PWS-E-2 |
4,669 | - |
|
Datasheet | - | PWS-E2 | Box | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.2 kV | 110 A | 58 A | 1.5 V | 100 mA | 1150A, 1230A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VTO175-16IO7RECT BRIDGE 3PH 1600V PWS-E-2 |
6,751 | - |
|
Datasheet | - | PWS-E2 | Box | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 167 A | 89 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VTOF70-08IO7RECT BRIDGE 3PH 800V FO-T-A |
9,747 | - |
|
Datasheet | - | FO-T-A | Box | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 800 V | 70 A | - | 1.5 V | 100 mA | 550A, 600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VTOF70-16IO7RECT BRIDGE 3PH 1600V FO-T-A |
2,481 | - |
|
Datasheet | - | FO-T-A | Box | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 70 A | - | 1.5 V | 100 mA | 550A, 600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VVY40-16IO1MODULE THYRISTOR 1600V V1 PAC |
5,167 | - |
|
Datasheet | - | Module | Box | Active | Bridge, 3-Phase - SCRs/Diodes | 2 SCRs, 4 Diodes | 1.6 kV | 34 A | - | - | - | 320A @ 50Hz | - | - | - | - | Chassis Mount |
|
|
VVZ110-14IO7RECT BRIDGE 3PH 110A 1400V PWSE2 |
8,393 | - |
|
Datasheet | - | PWS-E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes | 3 SCRs, 3 Diodes | 1.4 kV | 110 A | 58 A | 1.5 V | 100 mA | 1150A, 1230A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VVZ175-14IO7RECT BRIDGE 3PH 167A 1400V PWSE2 |
8,466 | - |
|
Datasheet | - | PWS-E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes | 3 SCRs, 3 Diodes | 1.4 kV | 167 A | 89 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VVZB170-16NO1RECT BRIDGE 3PH 175A 1600V E2 |
7,148 | - |
|
Datasheet | - | E2 | Box | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 2 SCRs, 2 Diodes | 1.6 kV | 170 A | - | 1.5 V | 95 mA | - | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
