ELECTRONIC COMPONENTS
SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCMA200PD1800YBDUAL THYRISTOR/DIODE Y4 |
2,036 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 200 A | 315 A | 2.5 V | 150 mA | 6000A, 6480A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
MCD200-14IO1MOD THYRISTOR/DIODE 1400V Y4-M6 |
2,241 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCD200-18IO1MOD THYRISTOR/DIODE 1800V Y4-M6 |
3,572 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC200-16IO1MOD THYRISTOR DUAL 1600V Y4-M6 |
4,337 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCMA260PD1600YBSCR MODULE 1.6KV 260A Y4 |
4,396 | - |
|
Datasheet | - | Y4 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 260 A | 408 A | 2 V | 150 mA | 8300A, 8970A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCNA180PD2200YBBIPOLAR MODULE - THYRISTOR Y4-M |
4,317 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 180 A | 280 A | 2 V | 150 mA | 5400A, 5830A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

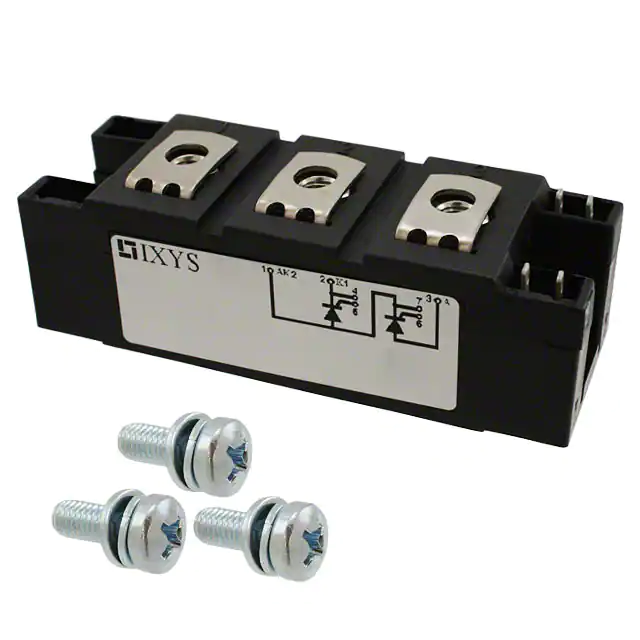

MCC200-18IO1MOD THYRISTOR DUAL 1800V Y4-M6 |
2,149 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 216 A | 340 A | 2 V | 150 mA | 8000A, 8600A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCNA220PD2200YBBIPOLAR MODULE - THYRISTOR Y4-M |
3,425 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 220 A | 345 A | 2 V | 150 mA | 7200A, 7780A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCD310-14IO1MOD THYRISTOR/DIODE 1400V Y2-DCB |
2,838 | - |
|
Datasheet | - | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCC310-14IO1MOD THYRISTOR DUAL 1400V Y2-DCB |
4,829 | - |
|
Datasheet | - | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
