SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B612F-2TSCR MODULE 600V MODULE |
220 |
1+：$39.97500 10+：$38.07000 50+：$36.33510 100+：$35.27020 |
|
Datasheet | B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B512F-2SCR MODULE 600V MODULE |
68 |
1+：$28.95000 10+：$27.57000 50+：$26.32010 100+：$25.54015 |
|
Datasheet | B-2 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M252512FVMODULE POWER 25A 600V SCR DIODE |
1,117 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
|

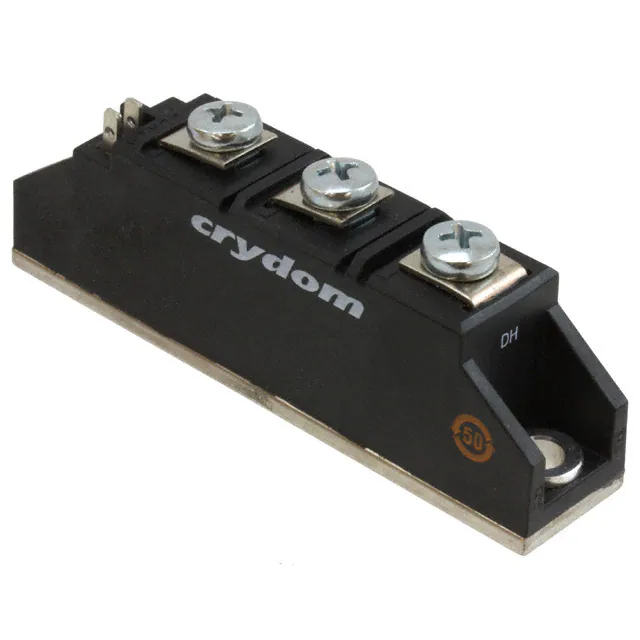

F1892DH600SCR MODULE 600V MODULE |
30 |
1+：$81.88000 10+：$77.98000 50+：$74.43540 |
|
Datasheet | F18 | Module | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T621FMODULE POWER |
5,385 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F1842HD1000MODULE SCR/DIODE 40A 380VAC |
7,138 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M505013FMODULE POWER 50A 800V SCR CC |
4,408 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1857SDK600SCR MODULE 600V MODULE |
60 |
1+：$60.10000 4+：$58.99500 7+：$57.87500 10+：$55.65000 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842HD1200SCR MODULE 1.2KV MODULE |
98 |
1+：$84.49500 4+：$80.98000 8+：$77.73500 38+：$74.63000 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1892HD600SCR MODULE 600V MODULE |
113 |
1+：$79.10000 5+：$75.80000 9+：$72.77000 41+：$69.86000 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
