ELECTRONIC COMPONENTS
SCRs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMA50E1600TZ-TUBSCR 1.6KV 79A TO268AA |
8,174 | - |
|
Datasheet | CMA50E1600TZ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | 1.6 kV | 1.5 V | 50 mA | 1.3 V | 50 A | 79 A | 100 mA | - | 550A, 595A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA (D3Pak-HV) |
|
|
CLA40E1200NHBTHYRISTOR - TO247 |
3,799 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 1.7 V | 35 mA | 1.55 V | 40 A | 63 A | 70 mA | 10 µA | 520A, 560A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
CLE40E1200HBSCR 1.2KV 63A TO247 |
3,898 | - |
|
Datasheet | CLE40E1200HB | TO-247-3 | Tube | Discontinued at Digi-Key | 1.2 kV | 1.5 V | 50 mA | 1.47 V | 40 A | 63 A | 120 mA | - | 600A, 650A | Standard Recovery | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
CLA50E1200TC-TUBSCR 1.2KV 80A TO268AA |
6,990 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | 50 A | 80 A | 75 mA | 50 µA | 550A, 590A | Standard Recovery | -40°C ~ 150°C | - | - | Surface Mount | TO-268AA |
|
|
CLA100E1200KBSCR 1.2KV 160A TO264 |
3,299 | - |
|
Datasheet | CLA100E1200KB | TO-264-3, TO-264AA | Tube | Active | 1.2 kV | 1.5 V | 40 mA | 1.37 V | 100 A | 160 A | 100 mA | - | 1100A, 11900A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 |
.jpg "CS60-16IO1R")
|
CS60-16IO1RSCR 1.6KV 75A PLUS247-3 |
2,418 | - |
|
Datasheet | - | TO-247-3 Variant | Tube | Active | 1.6 kV | 1.5 V | 100 mA | 1.4 V | 48 A | 75 A | 200 mA | 10 mA | 1500A, 1600A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | PLUS247™-3 |
|
CS8-08IO2SCR 800V 25A TO64 |
5,619 | - |
|
Datasheet | - | TO-208AB, TO-64-3, Stud | Bulk | Obsolete | 800 V | 2.5 V | 30 mA | 1.6 V | 16 A | 25 A | 80 mA | 3 mA | 250A, 270A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-64 |
|

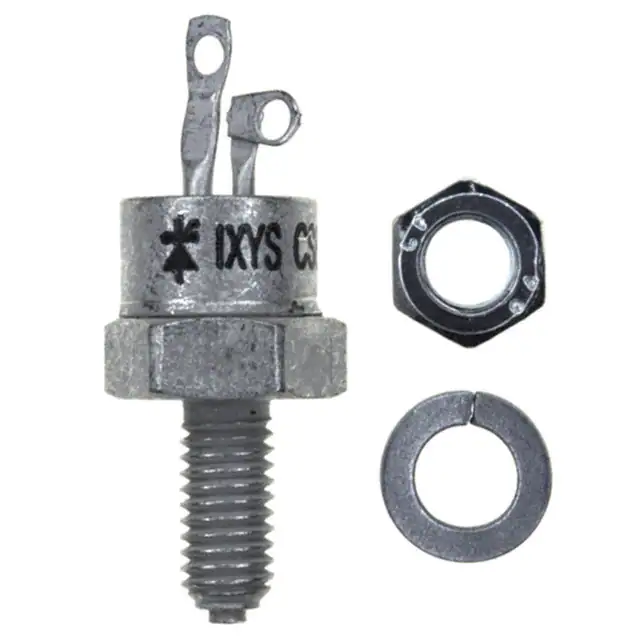

CS8-12IO2SCR 1.2KV 25A TO64 |
6,299 | - |
|
Datasheet | - | TO-208AB, TO-64-3, Stud | Bulk | Obsolete | 1.2 kV | 2.5 V | 30 mA | 1.6 V | 16 A | 25 A | 80 mA | 3 mA | 250A, 270A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-64 |
|
|
CS60-12IO1SCR 1.2KV 75A PLUS247-3 |
4,420 | - |
|
Datasheet | - | TO-247-3 Variant | Tube | Active | 1.2 kV | 1.5 V | 100 mA | 1.4 V | 48 A | 75 A | 200 mA | 10 mA | 1500A, 1600A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | PLUS247™-3 |
|
|
CS60-14IO1SCR 1.4KV 75A PLUS247-3 |
4,638 | - |
|
Datasheet | - | TO-247-3 Variant | Tube | Active | 1.4 kV | 1.5 V | 100 mA | 1.4 V | 48 A | 75 A | 200 mA | 10 mA | 1500A, 1600A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | PLUS247™-3 |
