ELECTRONIC COMPONENTS
TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D1V8L1BS2LP3-7General Protection PP X3-DFN0603 |
7,434 | - |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 1.8V (Max) | 2.1V | 7V (Typ) | 25A (8/20µs) | 175W | No | General Purpose | 32pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DFN0603-2 |
|
SMAJ12CA-TPTVS DIODE 12VWM 19.9VC DO214AC |
6,108 | - |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
ESDCAN03-2BM3YTVS DIODE 24VWM 36.5VC 3QFN |
5,675 | - |
|
Datasheet | 3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 28V | 36.5V | 3.3A (8/20µs) | - | No | - | 3.3pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 3-QFN (1.1x1) |
|
DF2B18FU,H3FTVS DIODE 12VWM 33VC USC |
2,480 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | - | - | - | Surface Mount | USC |
|
|
ESD1LIN24DYFR3-PF 24-V 30-KV ESD PROTECTION D |
1,270 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 35.5V | 42V | 4.3A (8/20µs) | 159.1W | No | CAN, USB | 2.3pF @ 1MHz | -50°C ~ 150°C (TA) | - | - | Surface Mount | SOD-323 |
|
VESD08C1-02V-G3-08TVS DIODE 8VWM 15.3VC SOD523 |
1,255 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 9.5V | 15.3V | 6.6A (8/20µs) | 100W | No | - | 47pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SMBJ20CATVS DIODE 20VWM 32.4VC DO214AA |
143,274 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESDA14V2LTVS DIODE 12VWM SOT23-3 |
92,246 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 2 | - | 12V | 14.2V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
.jpg "PESD5V0C2BDFZ")
|
PESD5V0C2BDFZTVS DIODE 5VWM 6.5VC DFN0603-3 |
69,973 | - |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 9.6V (Typ) | 6.5V (Typ) | 8.5A (8/20µs) | - | No | HDMI, Telecom, USB | 0.21pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DFN0603-3 (SOT8013) |
|
DESD5V0S1BL-7BTVS DIODE 5VWM 14VC DFN1006-2 |
58,513 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|

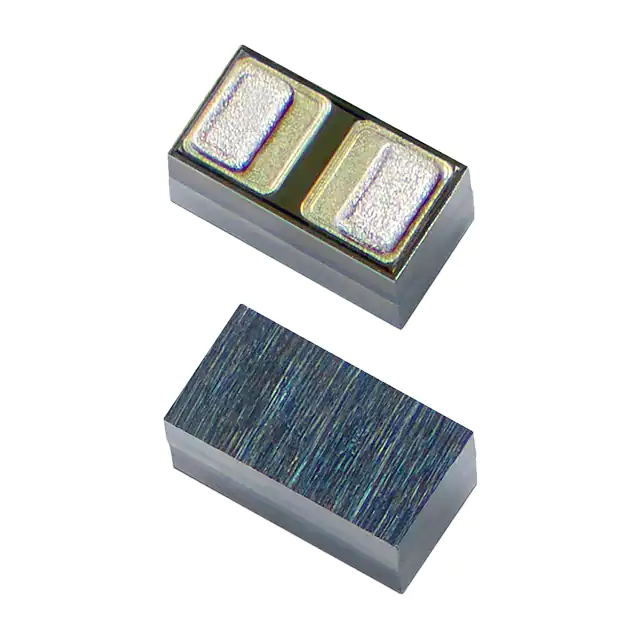

SP15-01WTG-C-HVTVS DIODE 15VWM 27VC 2FLIPCHIP |
56,788 | - |
|
Datasheet | 2-XFDFN, FCDFN | SPXX, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 27V | 5A (8/20µs) | 100W | No | General Purpose | 21pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
D1213A-01W-7TVS DIODE 3.3VWM 10VC SOT323 |
48,381 | - |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMAJ120ATVS DIODE 120VWM 193VC DO214AC |
42,457 | - |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 2.1A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
VCAN36A2-03S-E3-08TVS DIODE 36VWM 63VC SOT23-3 |
29,776 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 39V | 63V | 2.4A (8/20µs) | 150W | No | CAN | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
D15V0H1U2LP-7BTVS DIODE 15VWM 27VC DFN1006-2 |
21,700 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16V | 27V | 12A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
PESD3V3Z1BCSFYLTVS DIODE 3.3VWM 4.8VC DSN0603-2 |
20,828 | - |
|
Datasheet | 0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.8V (Typ) | 4.8V (Typ) | 15A (8/20µs) | - | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
SMAJ24CA-TPTVS DIODE 24VWM 38.9VC DO214AC |
19,516 | - |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 10.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD5V0L4UW,115TVS DIODE 5VWM 13VC SOT665 |
18,337 | - |
|
Datasheet | SOT-665 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6.46V | 13V | 2.5A (8/20µs) | 30W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOT-665 |
|
NUP1301U,115TVS DIODE 80VWM 20VC SOT323 |
16,068 | - |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | - | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
VESD05C1-02V-G3-08TVS DIODE 5VWM 11.5VC SOD523 |
15,980 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.85V | 11.5V | 8.7A (8/20µs) | 100W | No | - | 67pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
