ELECTRONIC COMPONENTS
Single Zener Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZX84C9V1W-7DIODE ZENER 9.1V 200MW SOT323 |
2,541 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | 9.1 V | ±6% | 200 mW | 15 Ohms | 500 nA @ 6 V | 900 mV @ 10 mA | -65°C ~ 125°C | - | - | Surface Mount | SOT-323 |
|
|
MMBZ5226BW-7DIODE ZENER 3.3V 200MW SOT323 |
8,585 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | 3.3 V | ±5% | 200 mW | 28 Ohms | 25 µA @ 1 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-323 |
|
|
MMBZ5243BW-7DIODE ZENER 13V 200MW SOT323 |
9,304 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | 13 V | ±5% | 200 mW | 13 Ohms | 500 nA @ 9.9 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-323 |
|
|
MMBZ5245BW-7DIODE ZENER 15V 200MW SOT323 |
2,767 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | 15 V | ±5% | 200 mW | 16 Ohms | 100 nA @ 11 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-323 |
|
|
MMBZ5246BW-7DIODE ZENER 16V 200MW SOT323 |
7,921 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | 16 V | ±5% | 200 mW | 17 Ohms | 100 nA @ 12 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-323 |
|
|
MMBZ5250BW-7DIODE ZENER 20V 200MW SOT323 |
5,306 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | 20 V | ±5% | 200 mW | 25 Ohms | 100 nA @ 15 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-323 |
|
CZRER52C2V2DIODE ZENER 2.2V 150MW 503 |
8,766 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Obsolete | 2.2 V | ±5% | 150 mW | 100 Ohms | 100 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
CZRER52C2V4DIODE ZENER 2.4V 150MW 503 |
9,912 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 2.4 V | ±5% | 150 mW | 85 Ohms | 100 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C2V7DIODE ZENER 2.7V 150MW 503 |
5,263 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 2.7 V | ±5% | 150 mW | 83 Ohms | 75 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C11DIODE ZENER 11V 150MW 503 |
2,581 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 11 V | ±5% | 150 mW | 20 Ohms | 100 nA @ 8.5 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C12DIODE ZENER 12V 150MW 503 |
3,116 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Obsolete | 12 V | ±5% | 150 mW | 20 Ohms | 100 nA @ 9 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C13DIODE ZENER 13V 150MW 503 |
5,837 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 13 V | ±5% | 150 mW | 25 Ohms | 100 nA @ 10 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|

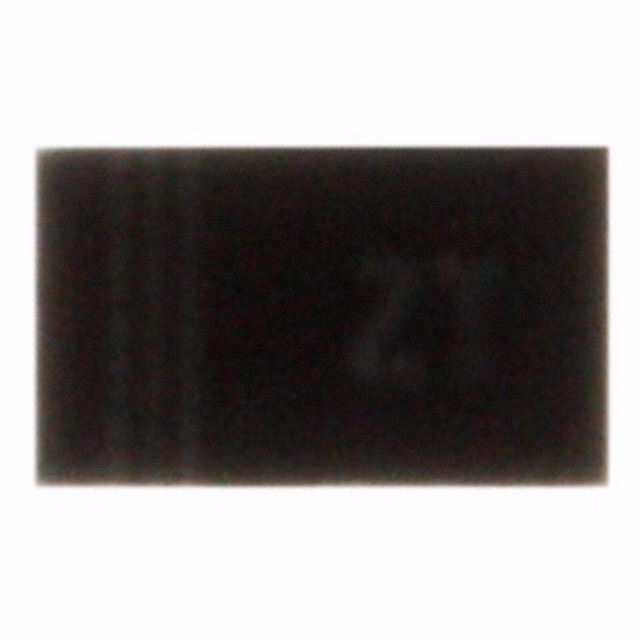

CZRER52C22DIODE ZENER 22V 150MW 503 |
9,838 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 22 V | ±5% | 150 mW | 55 Ohms | 100 nA @ 17 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C24DIODE ZENER 24V 150MW 503 |
5,679 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 24 V | ±5% | 150 mW | 80 Ohms | 100 nA @ 18 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C27DIODE ZENER 27V 150MW 503 |
4,883 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 27 V | ±5% | 150 mW | 80 Ohms | 100 nA @ 20 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
CZRER52C3DIODE ZENER 3V 150MW 503 |
5,375 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 3 V | ±5% | 150 mW | 95 Ohms | 50 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C3V3DIODE ZENER 3.3V 150MW 503 |
2,230 | - |
|
Datasheet | - | 0503 (1308 Metric) | Tape & Reel (TR) | Obsolete | 3.3 V | ±5% | 150 mW | 95 Ohms | 25 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
SMAJ5918BE3/TR13DIODE ZENER 5.1V 3W DO214AC |
9,026 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | 5.1 V | ±5% | 3 W | 4 Ohms | 5 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
BZX85C82-TRDIODE ZENER 82V 1.3W DO204AL |
4,440 | - |
|
Datasheet | BZX85 | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1.3 W | 200 Ohms | 500 nA @ 62 V | - | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
BZX84C27 TRDIODE ZENER 27V 350MW SOT23 |
9,121 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 27 V | ±5% | 350 mW | 80 Ohms | 50 nA @ 18.9 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-23 |
