Bridge Rectifiers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDS10M-13BRIDGE RECT 1PHASE 1KV 1A HDS |
133,775 |
1+：$0.28000 10+：$0.17200 25+：$0.14280 50+：$0.12460 100+：$0.10910 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 1 kV | 1 A | 950 mV @ 500 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | HDS |
|
CD-MBL106SBRIDGE RECT 1PHASE 600V 1A |
94,118 |
1+：$0.31500 10+：$0.19500 50+：$0.14160 100+：$0.12420 500+：$0.09354 |
|
Datasheet | - | Chip, Concave Terminals | Tape & Reel (TR) | Active | Single Phase | Standard | 600 V | 1 A | 1 V @ 1 A | 5 µA @ 600 V | -55°C ~ 175°C (TJ) | - | - | Surface Mount | - |
|
MB10S-13BRIDGE RECT 1PHASE 1KV 800MA MBS |
257,368 |
1+：$0.30000 10+：$0.18400 25+：$0.15300 50+：$0.13340 100+：$0.11680 |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Active | Single Phase | Standard | 1 kV | 800 mA | 1.1 V @ 800 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MBS |
|
|
CD-MBL206SLBRIDGE RECT 1PHASE 600V 2A |
53,888 | - |
|
Datasheet | CD-MBL2xxSL | Chip, Concave Terminals | Tape & Reel (TR) | Active | Single Phase | Standard | 600 V | 2 A | 960 mV @ 2 A | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | - |
|
MB4S-TPBRIDGE RECT 1P 400V 500MA MBS-1 |
149,651 | - |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Not For New Designs | Single Phase | Standard | 400 V | 500 mA | 1 V @ 400 mA | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MBS-1 |
|
|
MB6S-TPBRIDGE RECT 1P 600V 500MA MBS-1 |
86,743 | - |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Active | Single Phase | Standard | 600 V | 500 mA | 1 V @ 400 mA | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MBS-1 |
|
|
CD-MBL210SBRIDGE RECT 1PHASE 1KV 2A |
3,748 |
1+：$0.41000 10+：$0.25550 50+：$0.18710 100+：$0.16480 500+：$0.12565 |
|
Datasheet | CD-MBL2xxS | Chip, Concave Terminals | Tape & Reel (TR) | Active | Single Phase | Standard | 1 kV | 2 A | 1 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 175°C (TJ) | - | - | Surface Mount | - |
|
BAS3007ARPPE6327HTSA1BRIDGE RECT 1P 30V 900MA SOT143 |
42,526 |
1+：$0.53500 10+：$0.33350 50+：$0.24590 100+：$0.21750 500+：$0.16757 |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Single Phase | Schottky | 30 V | 900 mA | 700 mV @ 900 mA | 350 µA @ 30 V | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-SOT-143-3D |
|

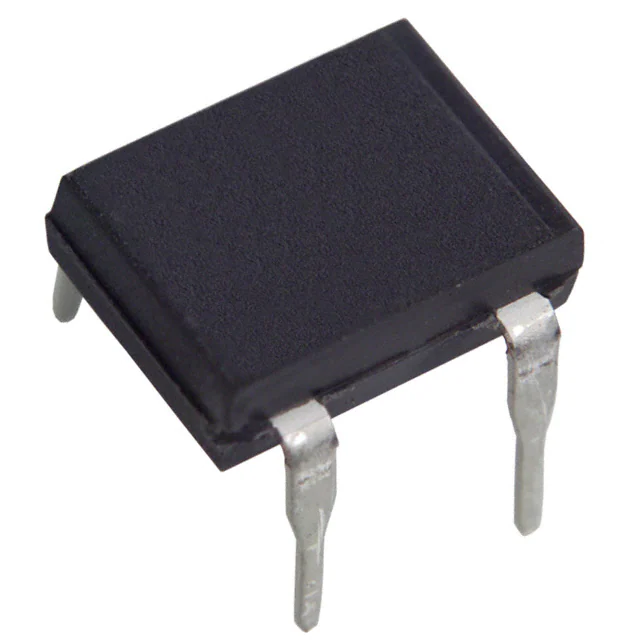

DF02MBRIDGE RECT 1PHASE 200V 1A DFM |
9,992 | - |
|
Datasheet | - | 4-EDIP (0.300", 7.62mm) | Tube | Active | Single Phase | Standard | 200 V | 1 A | 1.1 V @ 1 A | 10 µA @ 200 V | -65°C ~ 150°C (TJ) | - | - | Through Hole | DFM |
|
|
CD-MBL210SLBRIDGE RECT 1PHASE 1KV 2A |
26,379 |
1+：$0.42500 10+：$0.26400 50+：$0.19340 100+：$0.17050 500+：$0.13013 |
|
Datasheet | CD-MBL2xxSL | Chip, Concave Terminals | Tape & Reel (TR) | Active | Single Phase | Standard | 1 kV | 2 A | 960 mV @ 2 A | 5 µA @ 1000 V | -55°C ~ 175°C (TJ) | - | - | Surface Mount | - |
|
|
DF04MBRIDGE RECT 1PHASE 400V 1A DFM |
22,473 | - |
|
Datasheet | - | 4-EDIP (0.300", 7.62mm) | Tube | Active | Single Phase | Standard | 400 V | 1 A | 1.1 V @ 1 A | 10 µA @ 400 V | -65°C ~ 150°C (TJ) | - | - | Through Hole | DFM |
|
|
DF01MBRIDGE RECT 1PHASE 100V 1A DFM |
7,345 |
1+：$0.41500 10+：$0.25550 25+：$0.21280 50+：$0.18620 100+：$0.16380 |
|
Datasheet | - | 4-EDIP (0.300", 7.62mm) | Tube | Active | Single Phase | Standard | 100 V | 1 A | 1.1 V @ 1 A | 10 µA @ 100 V | -65°C ~ 150°C (TJ) | - | - | Through Hole | DFM |
|
|
BAS4002ARPPE6327HTSA1BRIDGE RECT 1P 40V 200MA SOT143 |
21,856 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Single Phase | Schottky | 40 V | 200 mA | 790 mV @ 200 mA | 10 µA @ 40 V | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-SOT-143-3D |
|
MB2SBRIDGE RECT 1P 200V 500MA 4-SOIC |
23,396 | - |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Active | Single Phase | Standard | 200 V | 500 mA | 1 V @ 500 mA | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SOIC |
|
HD06-TBRIDGE RECT 1P 600V 800MA 4-DIP |
22,995 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 600 V | 800 mA | 1 V @ 400 mA | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-MiniDIP |
|
LMB10S-TPBRIDGE RECT 1PHASE 1KV 1A LMBS-1 |
20,177 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 1 kV | 1 A | 950 mV @ 400 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LMBS-1 |
|
MB8SBRIDGE RECT 1P 800V 500MA 4-SOIC |
21,140 | - |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Active | Single Phase | Standard | 800 V | 500 mA | 1 V @ 500 mA | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SOIC |
|
MB4SBRIDGE RECT 1P 400V 500MA 4-SOIC |
44,229 | - |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Active | Single Phase | Standard | 400 V | 500 mA | 1 V @ 500 mA | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SOIC |
|

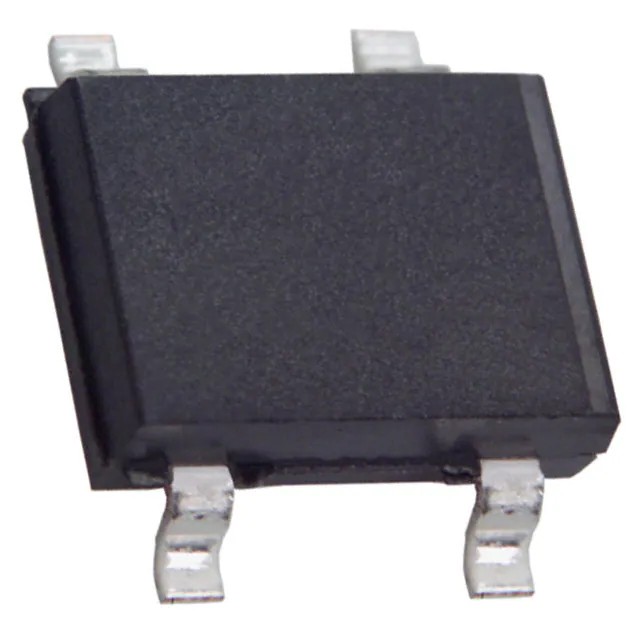

DF04S-TBRIDGE RECT 1PHASE 400V 1A DF-S |
28,620 | - |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Single Phase | Standard | 400 V | 1 A | 1.1 V @ 1 A | 10 µA @ 400 V | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DF-S |
|
MB1SBRIDGE RECT 1P 100V 500MA 4-SOIC |
26,975 | - |
|
Datasheet | - | TO-269AA, 4-BESOP | Tape & Reel (TR) | Active | Single Phase | Standard | 100 V | 500 mA | 1 V @ 500 mA | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SOIC |
