ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

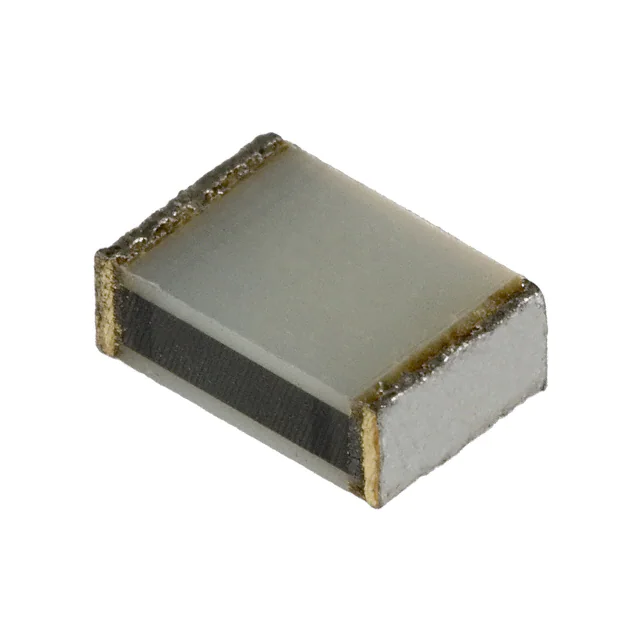

ECW-U1C474JC9CAP FILM 0.47UF 5% 16VDC 2416 |
5,514 | - |
|
Datasheet | 2416 (6041 Metric) | 0.47 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U2473V16CAP FILM 0.047UF 5% 250VDC 2416 |
10,283 | - |
|
Datasheet | 2416 (6041 Metric) | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.106" (2.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-UC2J223JVCAP FILM 0.022UF 5% 630VDC 2825 |
5,242 | - |
|
Datasheet | 2825 (7163 Metric) | 0.022 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.142" (3.60mm) | Solder Pads | - | General Purpose | - | - |
|

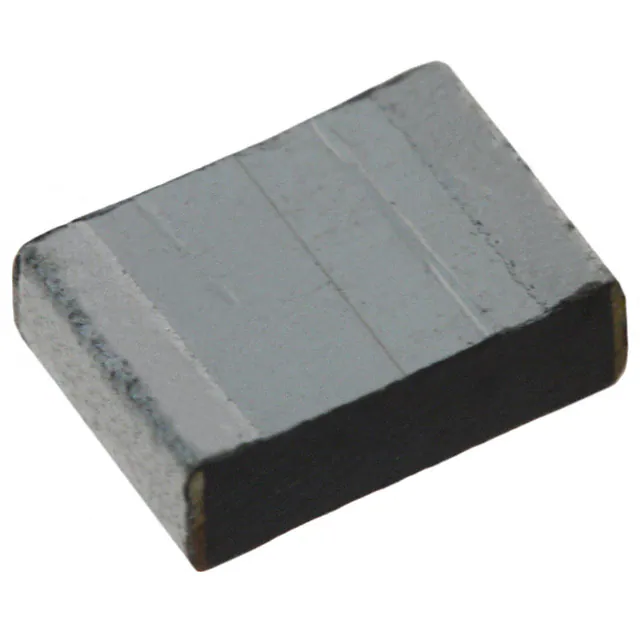

ECH-U1H224JX9CAP FILM 0.22UF 5% 50VDC 2416 |
12,632 | - |
|
Datasheet | 2416 (6041 Metric) | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1H224GX9CAP FILM 0.22UF 2% 50VDC 2416 |
6,014 | - |
|
Datasheet | 2416 (6041 Metric) | 0.22 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E1335KFCAP FILM 3.3UF 10% 100VDC RADIAL |
828 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-F6333HLCAP FILM 0.033UF 3% 630VDC RAD |
6,690 | - |
|
Datasheet | Radial | 0.033 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.280" W (13.00mm x 7.10mm) | 0.441" (11.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|

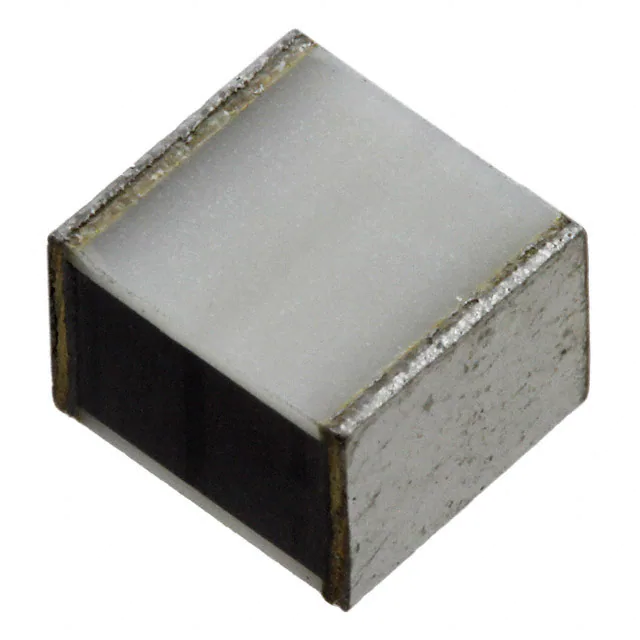

ECW-UC2J333JVCAP FILM 0.033UF 5% 630VDC 2825 |
1,166 | - |
|
Datasheet | 2825 (7163 Metric) | 0.033 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|

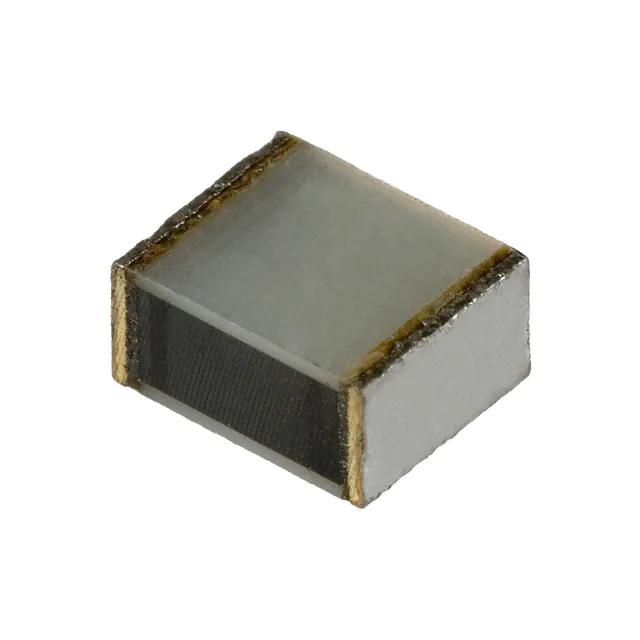

ECW-U2104V16CAP FILM 0.1UF 5% 250VDC 2420 |
1,793 | - |
|
Datasheet | 2420 (6050 Metric) | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

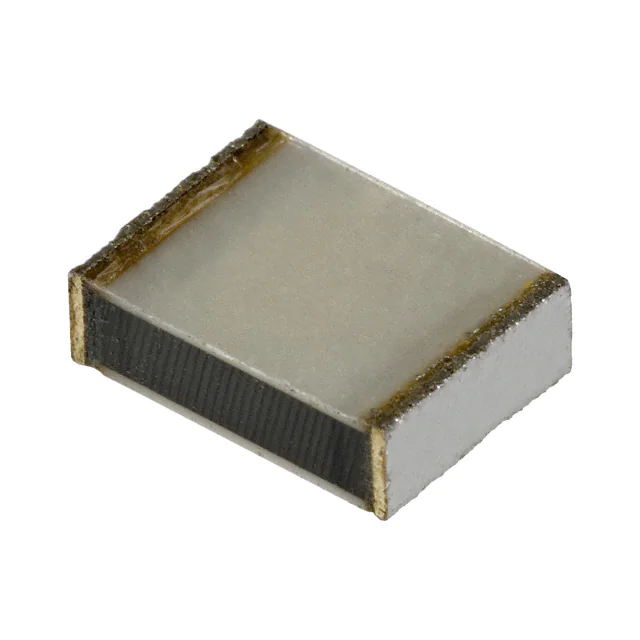

ECW-U1334KC9CAP FILM 0.33UF 10% 100VDC 2820 |
13,975 | - |
|
Datasheet | 2820 (7150 Metric) | 0.33 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
