ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2685KFCAP FILM 6.8UF 10% 250VDC RADIAL |
7,901 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.921" (23.40mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
 Series Straight 26x13.jpg "ECW-F2W475JA")
|
ECW-F2W475JACAP FILM 4.7UF 5% 450VDC RADIAL |
419 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.035" L x 0.543" W (26.30mm x 13.80mm) | 0.831" (21.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
ECW-U1105KCVCAP FILM 1UF 10% 100VDC 3925 |
703 | - |
|
Datasheet | 3925 (9863 Metric) | 1 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E1106KFCAP FILM 10UF 10% 100VDC RADIAL |
3,538 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
 Series Straight 23x14.jpg "ECW-F2475JA")
|
ECW-F2475JACAP FILM 4.7UF 5% 250VDC RADIAL |
3,046 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 0.870" (22.10mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-U2334KCVCAP FILM 0.33UF 10% 250VDC 3925 |
13,729 | - |
|
Datasheet | 3925 (9863 Metric) | 0.33 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.197" (5.00mm) | Solder Pads | - | General Purpose | - | - |
|

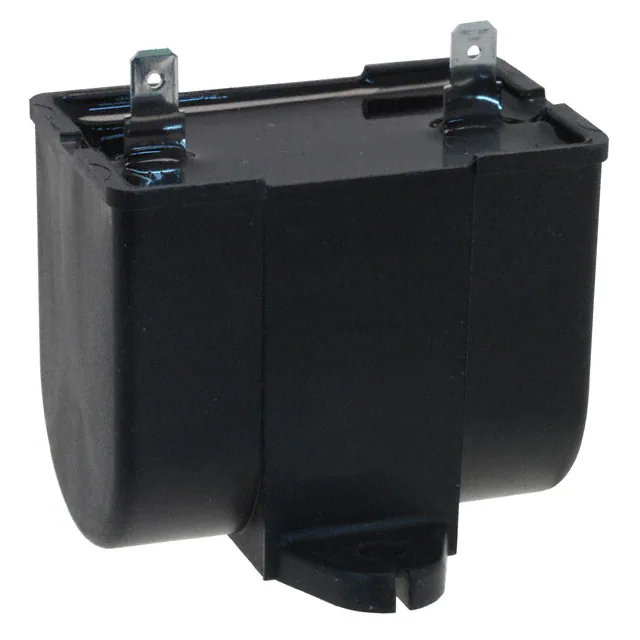

JS251156-BACAP FILM 15UF 10% 250VAC CHAS MT |
381 | - |
|
Datasheet | Rectangular Box | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
ECQ-E2124JFCAP FILM 0.12UF 5% 250VDC RADIAL |
1,156 | - |
|
Datasheet | Radial | 0.12 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.394" (10.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECQ-E2103JBCAP FILM 10000PF 5% 250VDC RAD |
9,914 | - |
|
Datasheet | Radial | 10000 pF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311" L x 0.165" W (7.90mm x 4.20mm) | 0.319" (8.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECQ-E4103JFCAP FILM 10000PF 5% 400VDC RAD |
2,839 | - |
|
Datasheet | Radial | 10000 pF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.169" W (10.30mm x 4.30mm) | 0.331" (8.40mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
