IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT200GN60JDQ4IGBT MOD 600V 283A 682W ISOTOP |
2,986 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 50 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT75GT120JU2IGBT MOD 1200V 100A 416W SOT227 |
3,349 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT200GN60JIGBT MOD 600V 283A 682W ISOTOP |
4,761 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 25 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT70GR120JD60IGBT MOD 1200V 112A 543W SOT227 |
3,580 | - |
|
Datasheet | - | SOT-227-4 | Tube | Active | NPT | Single | 1200 V | 112 A | 543 W | 3.2V @ 15V, 70A | 1.1 mA | 7.26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT150GN60JDQ4IGBT MOD 600V 220A 536W ISOTOP |
3,260 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 220 A | 536 W | 1.85V @ 15V, 150A | 50 µA | 9.2 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT100GT120JRDQ4IGBT MOD 1200V 123A 570W ISOTOP |
1,885 | - |
|
Datasheet | Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 1200 V | 123 A | 570 W | 3.7V @ 15V, 100A | 200 µA | 7.85 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT150GN120JDQ4IGBT MOD 1200V 215A 625W ISOTOP |
4,925 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 215 A | 625 W | 2.1V @ 15V, 150A | 300 µA | 9.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

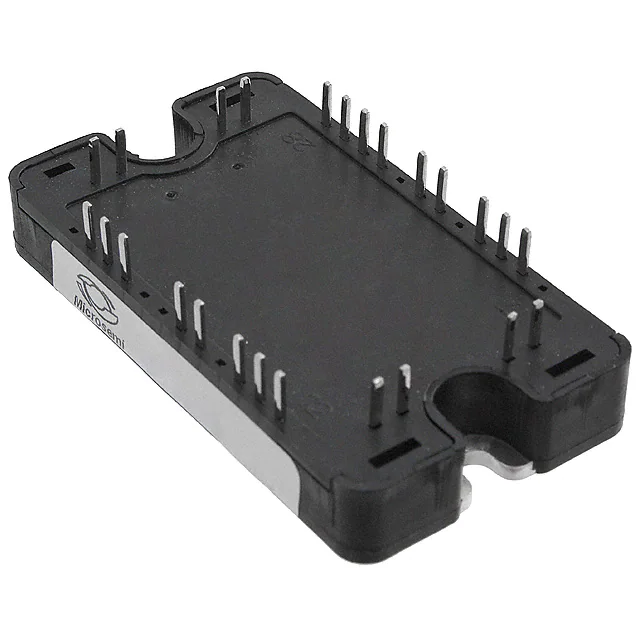

APTGT50H60T3GIGBT MODULE 600V 80A 176W SP3 |
4,122 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APT85GR120JIGBT MOD 1200V 116A 543W SOT227 |
3,778 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT85GR120JD60IGBT MOD 1200V 116A 543W SOT227 |
4,022 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1.1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
