IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCGLQ200SK65TGPM-IGBT-SP4 |
1,963 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

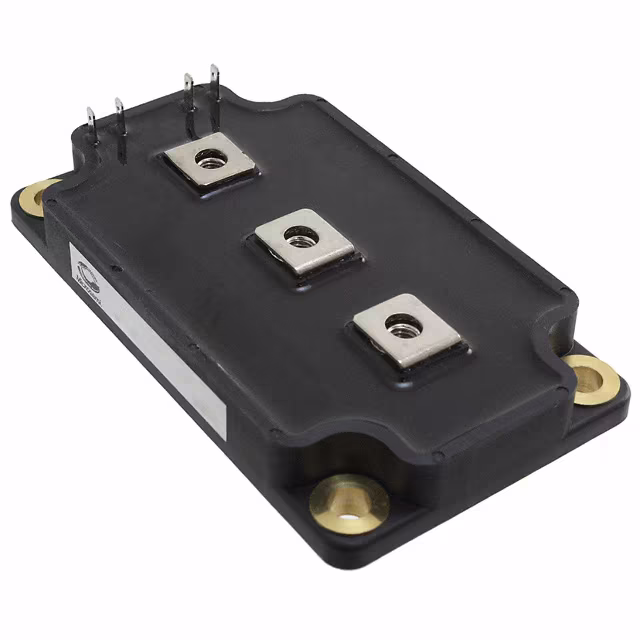

APTGT200DU120GIGBT MODULE 1200V 280A 890W SP6 |
3,388 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
MSCGLQ75H120CTBL3NGPM-IGBT-SBD-BL3 |
4,181 | - |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ75DDU120CTBL3NGPM-IGBT-SBD-BL3 |
2,021 | - |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
APT150GN120JIGBT MOD 1200V 215A 625W ISOTOP |
8,324 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 1200 V | 215 A | 625 W | 2.1V @ 15V, 150A | 100 µA | 9.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT50TL601GIGBT MODULE 600V 80A 176W SP1 |
1,563 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
MSCGLQ50DU120CTBL1NGPM-IGBT-SBD-BL1 |
9,618 | - |
|
Datasheet | - | Module | Bulk | Active | - | Half Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50A120CTBL1NGPM-IGBT-SBD-BL1 |
7,308 | - |
|
Datasheet | - | Module | Bulk | Active | - | Half Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50DH120CTBL2NGPM-IGBT-SBD-BL2 |
3,343 | - |
|
Datasheet | - | Module | Bulk | Active | - | Asymmetrical Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50H120CTBL2NGPM-IGBT-SBD-BL2 |
3,630 | - |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
