IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT100DU170TGIGBT MODULE 1700V 150A 560W SP4 |
3,859 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

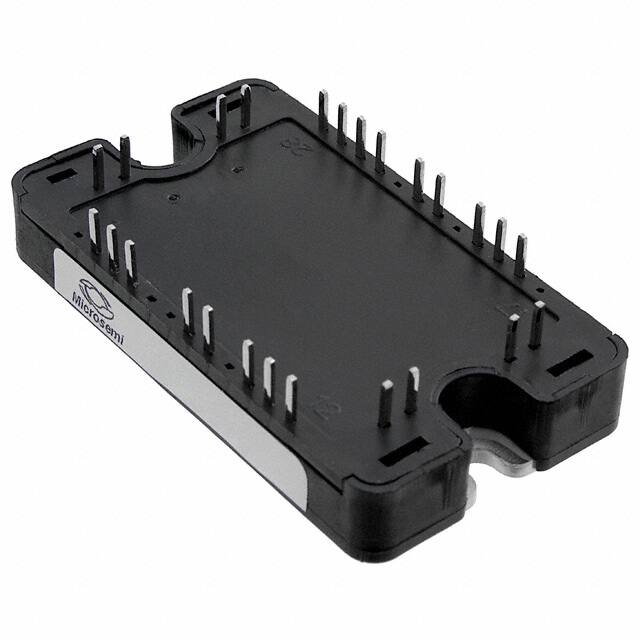

APTGT100A170TGIGBT MODULE 1700V 150A 560W SP4 |
8,069 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

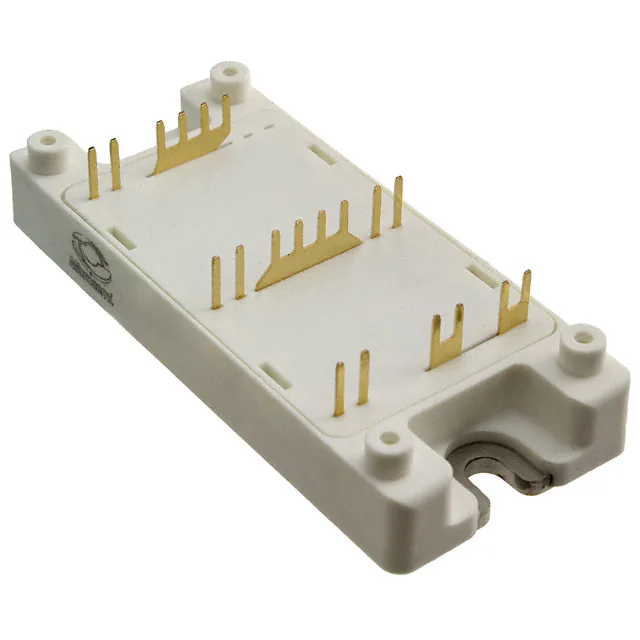

APTGT300A60TGIGBT MODULE 600V 430A 935W SP4 |
3,633 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 430 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
APTGT150DU120TGIGBT MODULE 1200V 220A 690W SP4 |
2,432 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT150A120TGIGBT MODULE 1200V 220A 690W SP4 |
2,954 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGT300DA60GIGBT MODULE 600V 430A 1150W SP6 |
9,237 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300SK60GIGBT MODULE 600V 430A 1150W SP6 |
3,243 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT150H60TGIGBT MODULE 600V 225A 480W SP4 |
2,479 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT75TDU60PGIGBT MODULE 600V 100A 250W SP6P |
8,000 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|

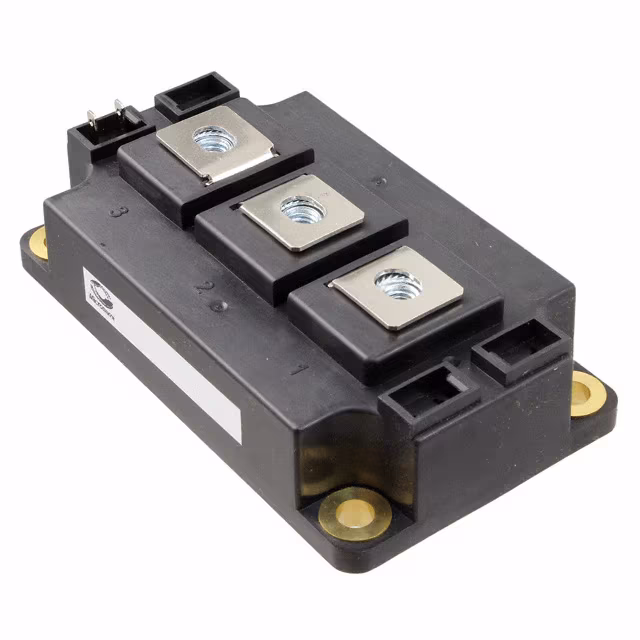

APTGT400DA60D3GIGBT MODULE 600V 500A 1250W D3 |
6,561 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Single | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
