ELECTRONIC COMPONENTS
IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM75RX-24AIGBT MOD 1200V 75A 500W |
4,408 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 500 W | 2.6V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200DU-24NFHIGBT MOD 1200V 200A 830W |
5,715 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 200 A | 830 W | 6.5V @ 15V, 200A | 1 mA | 32 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

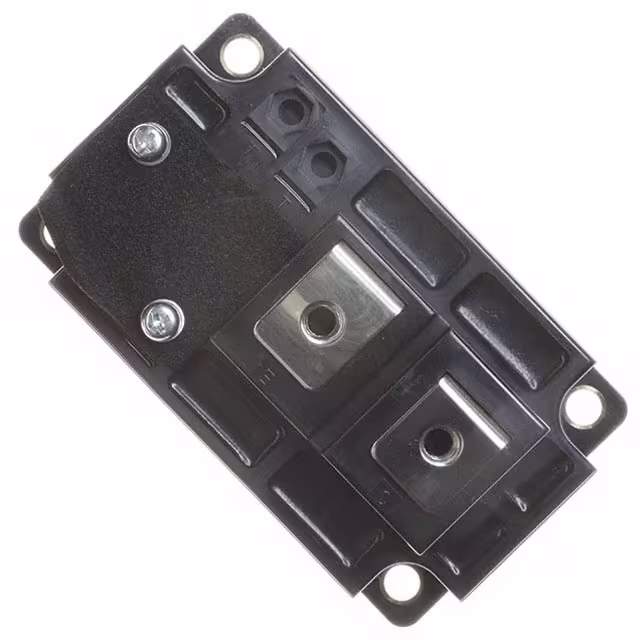

CM400HA-24AIGBT MOD 1200V 400A 2350W |
7,615 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 400 A | 2350 W | 3V @ 15V, 400A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

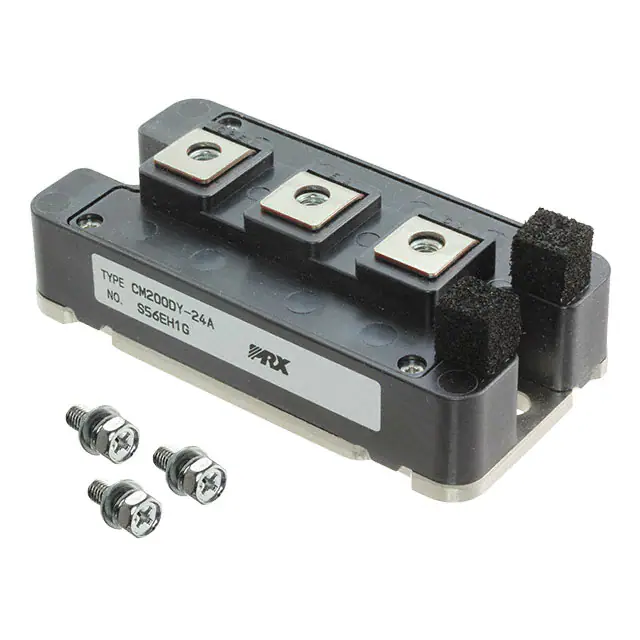

CM200DY-24AIGBT MOD 1200V 200A 1340W |
4,018 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 200 A | 1340 W | 3V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-12NFHIGBT MOD 600V 300A 780W |
8,411 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 300 A | 780 W | 2.7V @ 15V, 300A | 1 mA | 83 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

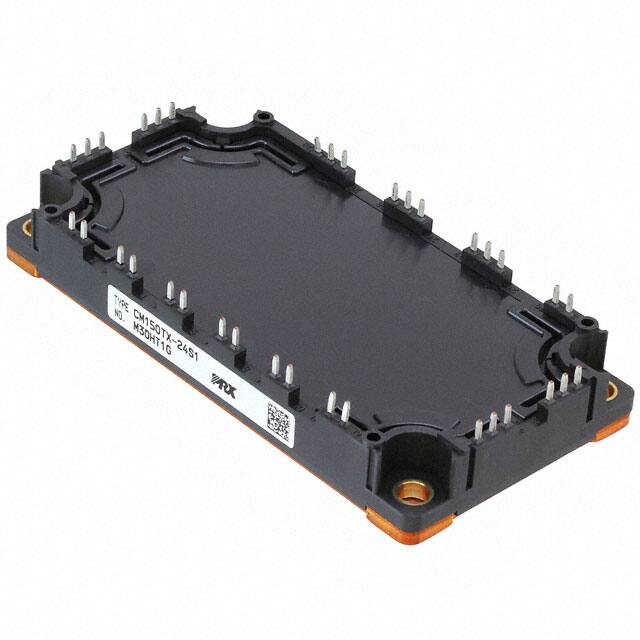

CM150TX-24S1IGBT MOD 1200V 150A 935W |
3,823 | - |
|
Datasheet | - | Module | Tray | Discontinued at Digi-Key | - | Three Level Inverter | 1200 V | 150 A | 935 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM100MXA-24SIGBT MOD 1200V 100A 750W |
8,754 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 100 A | 750 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
CM450DX-24S1IGBT MOD 1200V 450A 2775W |
2,836 | - |
|
Datasheet | - | Module | Tray | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 450 A | 2775 W | 2.25V @ 15V, 450A | 1 mA | 45 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM300DU-12FIGBT MOD 600V 300A 830W |
3,173 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 300 A | 830 W | 2.2V @ 15V, 300A | 1 mA | 81 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

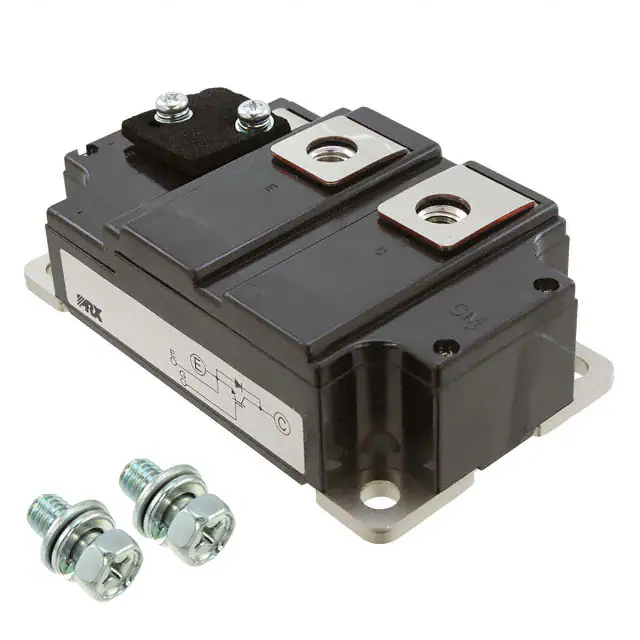

CM600HU-12FIGBT MOD 600V 600A 1420W |
2,800 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 600 V | 600 A | 1420 W | 2.2V @ 15V, 600A | 1 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for IGBT Modules?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
