Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G97DCKRIC MF CFG 1-CIR 3-IN SC70-6 |
21,380 |
1+：$0.11000 10+：$0.07450 25+：$0.06580 100+：$0.05625 250+：$0.05164 500+：$0.04887 1000+：$0.04660 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|

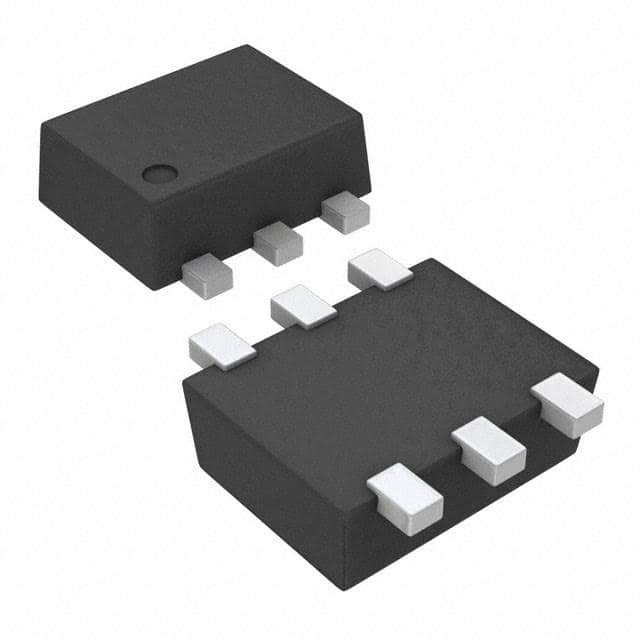

SN74LVC1G97DRLRIC CONFIG MULTI-FUNC GATE SOT563 |
18,484 | - |
|
Datasheet | 74LVC | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-5X3 |
|
SN74LVC1G97DBVRIC MF CFG 1-CIR 3-IN SOT-23-6 |
22,433 |
1+：$0.11500 10+：$0.08000 25+：$0.07100 100+：$0.06065 250+：$0.05574 500+：$0.05279 1000+：$0.05036 |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
NC7SZ57P6XIC LOGIC GATE UNIV 2INPUT SC70-6 |
56,429 | - |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
SN74LVC1G97DCKTIC MF CFG 1-CIR 3-IN SC70-6 |
56,451 |
1+：$0.47000 10+：$0.33850 25+：$0.30500 100+：$0.26845 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
MC100EP05DTR2GIC GATE AND/NAND ECL 2IN 8-TSSOP |
3,144 | - |
|
Datasheet | 100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC100EP08DTR2GIC XOR/XNOR GATE 1-CIR 8-TSSOP |
3,408 |
1+：$5.73000 10+：$4.49200 25+：$4.18240 100+：$3.92175 |
|
Datasheet | 100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|

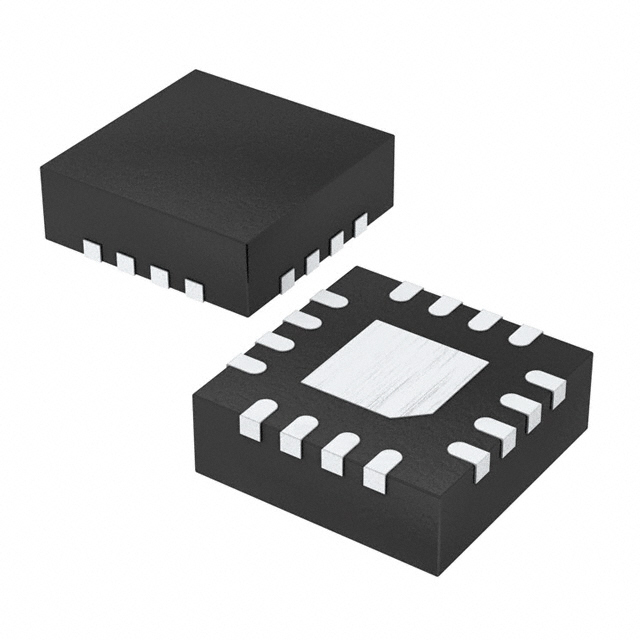

NB7L86AMNHTBGIC GATE MULTI FUNCT DIFF 16-QFN |
294 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.375V ~ 3.465V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|

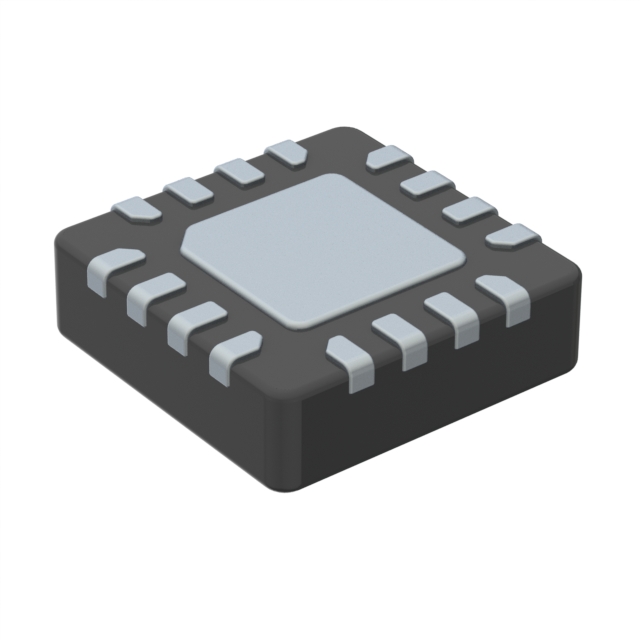

HMC722LP3EIC AND/NAND/OR/NOR GATE 16SMT |
2,400 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Strip | Active | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
74LVC1G97GW,125IC GATE MULTIFUNCTION 6TSSOP |
15,176 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74LVC1G57GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
10,215 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC1G97GV,125IC CONFIG MULTI FUNC GATE 6TSOP |
12,000 | - |
|
Datasheet | 74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
|
SN74LVC1G98DCKRIC CONFIG MULT-FUNC GATE SC70-6 |
10,237 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|

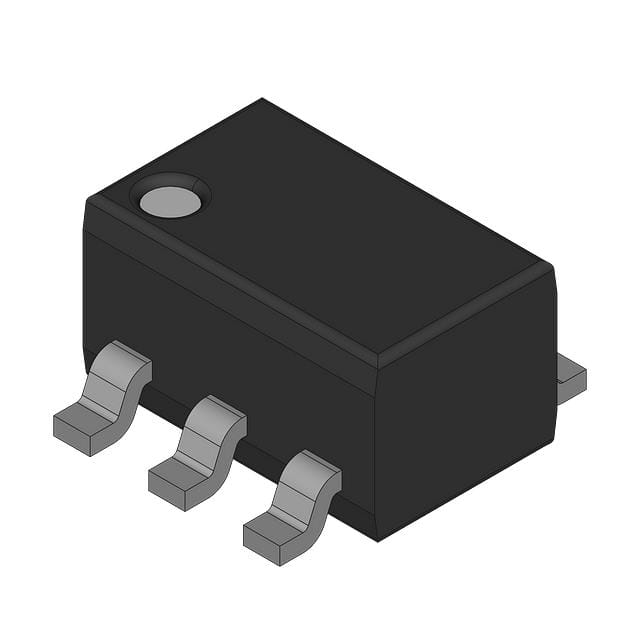

74LVC1G58GW,125IC MF/CFG 1-CIR 3-IN 6-TSSOP |
4,024 |
3000+：$0.03214 6000+：$0.03107 9000+：$0.03054 15000+：$0.02994 21000+：$0.02960 30000+：$0.02926 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
SN74LVC1G3208DCKRIC AND/OR GATE 1-CIR 3-IN SC70-6 |
8,538 |
1+：$0.39000 10+：$0.28000 25+：$0.25160 100+：$0.22070 250+：$0.20590 500+：$0.19699 1000+：$0.19508 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G58DCKRIC MULT-FUNCTION GATE SC70-6 |
21,481 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G57DCKRIC MULT-FUNCTION GATE SC70-6 |
14,854 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G57DBVRIC MF CFG 1-CIR 3-IN SOT-23-6 |
0 |
1+：$0.16000 10+：$0.11100 25+：$0.09880 100+：$0.08500 250+：$0.07844 500+：$0.07449 1000+：$0.07124 |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
SN74LVC1G97DSFRIC CONFIG MULTI-FUNC GATE 6SON |
3,577 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1x1) |
|
74LVC1G99GT,115IC MF CFG 1-CIR 4-IN 8-XSON |
8,730 |
1+：$0.10000 10+：$0.06700 25+：$0.05920 100+：$0.05050 250+：$0.04632 500+：$0.04379 1000+：$0.04172 2500+：$0.04020 |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
