ELECTRONIC COMPONENTS
Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M38510/07402BCA4-2-3-2 INPUT AND-OR-INVERT GATE |
2,853 | - |
|
Datasheet | 54S | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
CD4048BF3ACMOS MULTIFUNCTION EXPANDABLE 8- |
2,178 | - |
|
Datasheet | 4000B | 16-CDIP (0.300", 7.62mm) | Tube | Active | Multifunction | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 16-CDIP |
|
|
SN5454J4-WIDE AND-OR-INVERT GATES 14-CD |
1,334 | - |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
CD4085BF3ACMOS DUAL 2-WIDE 2-INPUT AND-OR- |
3,135 | - |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|

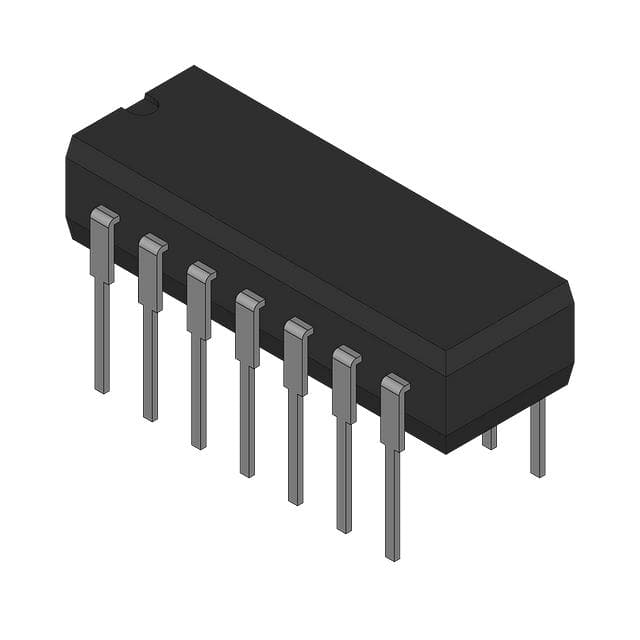

CD4078BF3ACMOS 8-INPUT NOR/OR GATE 14-CDIP |
2,674 | - |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Tube | Active | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
JM38510/07402BCA4-2-3-2 INPUT AND-OR-INVERT GATE |
2,965 | - |
|
Datasheet | 54S | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
CD4068BFCMOS 8-INPUT NAND/AND GATE 14-CD |
1,804 | - |
|
Datasheet | 4000B | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/NAND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
JM38510/07402BDA4-2-3-2 INPUT AND-OR-INVERT GATE |
3,125 | - |
|
Datasheet | 54S | 14-CFlatPack | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
CD4019BF3ACMOS QUAD AND/OR SELECT GATE 16- |
1,214 | - |
|
Datasheet | 4000B | 16-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 16-CDIP |
|
|
JM38510/00501BCADUAL 2-WIDE 2-INPUT AND-OR-INVER |
3,694 | - |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
