ELECTRONIC COMPONENTS
Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G58DCKRIC CONFIG MULTI-FUNC GATE SC70-6 |
33,688 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
CD4019BM96IC QUAD AND/OR SELCT GATE 16SOIC |
4,880 | - |
|
Datasheet | 4000B | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
SN74AUP1G97DRYRIC MULT-FUNC CONFIG GATE LP 6SON |
9,044 | - |
|
Datasheet | 74AUP | 6-UFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-SON (1.45x1) |
|
|
CD4048BM96IC 8IN GATE EXPND MULTI 16SOIC |
4,210 | - |
|
Datasheet | 4000B | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
SN74AUP1G97DRLRIC CONF MULTI-FUNC GATE SOT-563 |
852 | - |
|
Datasheet | 74AUP | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SOT-5X3 |
|
74AUP1G0832GW,125IC GATE AND/OR 3-IN 6TSSOP |
4,419 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74AUP1G3208GM,115IC 3-IN OR-AND GATE LP 6-XSON |
4,329 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
SN74AUP1G97DSFRIC GATE MULT-FUNC CONFIG 6SON |
15,974 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-SON (1x1) |
|

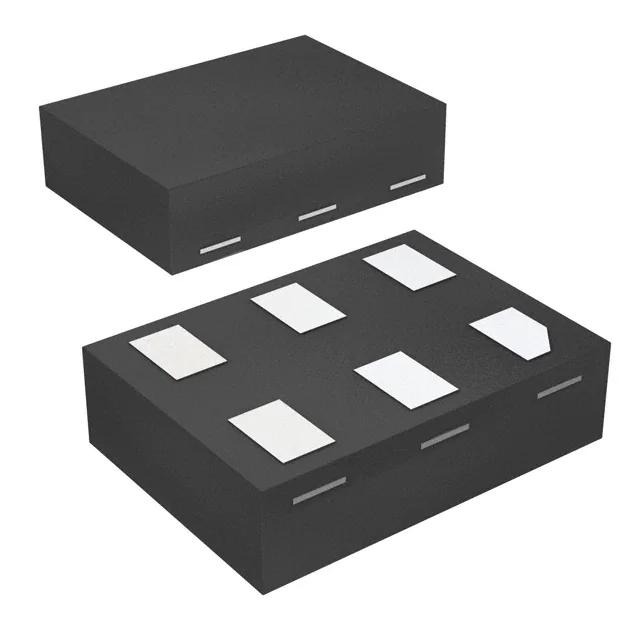

74LVC1G98FZ4-7IC LOGIC GATE/INVERTER |
9,608 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1410-6 |
|
CD4085BEIC 2-IN AND-OR-INV GATE 14-DIP |
1,716 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
CD4068BPWRIC 8INPUT NAND/AND GATE 14TSSOP |
2,617 | - |
|
Datasheet | 4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74AUP2G97GUXIC PROG GATE W/SCHMITT 10XQFN |
3,225 | - |
|
Datasheet | 74AUP | 10-XFQFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XQFN (1.4x1.8) |
|
SN74LVC1G3208DBVTIC SNGL POS OR-AND 3IN SOT23-6 |
1,338 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
|
SN74LVC1G3208DCKTIC SNGL POS OR-AND 3IN SC70-6 |
1,024 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G98DBVTIC MULTI-FUNC GTE CONFIG SOT23-6 |
2,963 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
|
SN74LVC1G98DCKTIC MULTI-FUNC GATE CONFIG SC70-6 |
1,228 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G0832DCKTIC 3INPUT OR/AND GATE SC70-6 |
781 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G0832DBVTIC 3INPUT OR/AND GATE SOT23-6 |
1,171 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
SN74AUP1G57DCKTIC GATE MULT-FUNC CONFIG SC70-6 |
3,640 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74AUP1G97DCKTIC GATE MULT-FUNC CONFIG SC70-6 |
2,081 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
