Sensor Matched Magnets
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

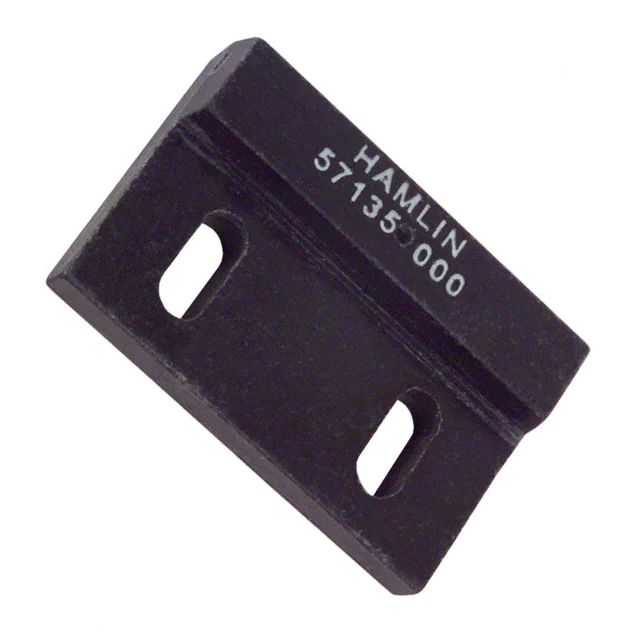

57135-000MAGNET 1.125"L X 0.259"W PLASTIC |
3,746 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59135 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|

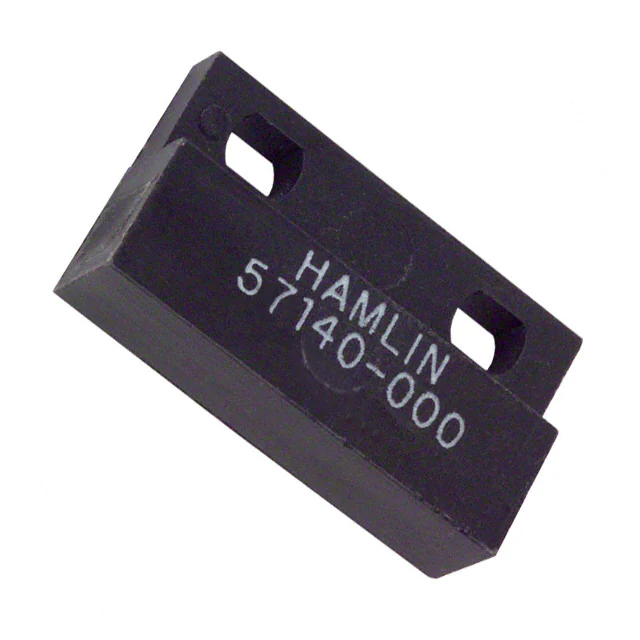

57140-000MAGNET 0.906"L X 0.236"W PLASTIC |
3,620 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59140 | Plastic | Alnico 5 (AlNiCo) | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) |
|
57145-000MAGNET 1.125"L X 0.259"W PLASTIC |
32,402 |
1+：$1.20000 5+：$1.06700 10+：$1.01900 25+：$0.96080 50+：$0.92140 100+：$0.88515 500+：$0.81232 1000+：$0.78520 5000+：$0.73060 |
|
Datasheet | - | Flange Mount | Bulk | Active | 59145 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|
|
57150-000MAGNET 1.125"L X 0.259"W PLASTIC |
2,924 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59150 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|
M04MAGNET 0.910"L X 0.55"W PBT |
5,042 |
1+：$1.31000 5+：$1.16400 10+：$1.11050 25+：$1.04700 50+：$1.00370 120+：$0.95400 600+：$0.87582 1080+：$0.85098 5040+：$0.79390 |
|
Datasheet | M04 | Flange Mount | Bulk | Active | MK04 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|

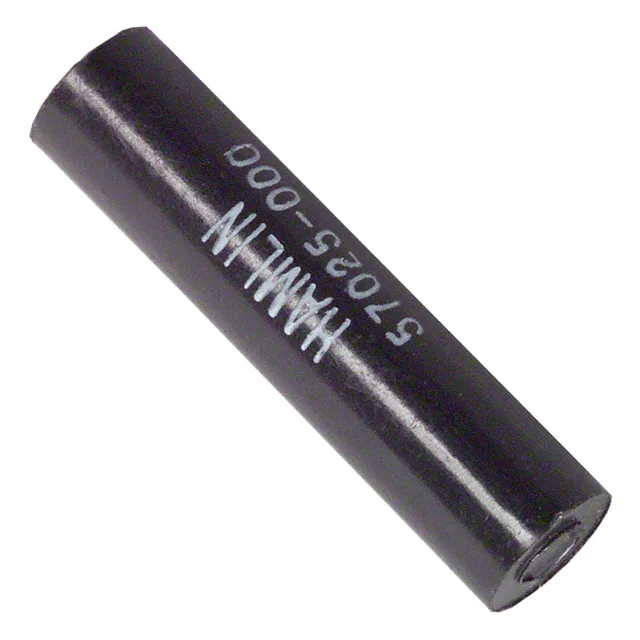

57025-000MAGNET 0.245"DIA X 1"L PLASTIC |
6,832 |
1+：$2.31000 5+：$2.07400 10+：$1.98650 25+：$1.88220 50+：$1.81080 200+：$1.68545 600+：$1.60045 1000+：$1.56470 |
|
Datasheet | - | Cylinder | Bulk | Active | 59025 | Plastic | Alnico 5 (AlNiCo) | 0.245" Dia x 1.00" L (6.22mm x 25.4mm) | 105°C (TA) |
|
SI-MAGB2MMCODED MAG USE W/SI-MAGB2SM |
273 |
1+：$12.00000 |
|
Datasheet | SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 1.693" L x 1.024" W x 0.512" H (43.0mm x 26.0mm x 13.0mm) | -25°C ~ 70°C |
|

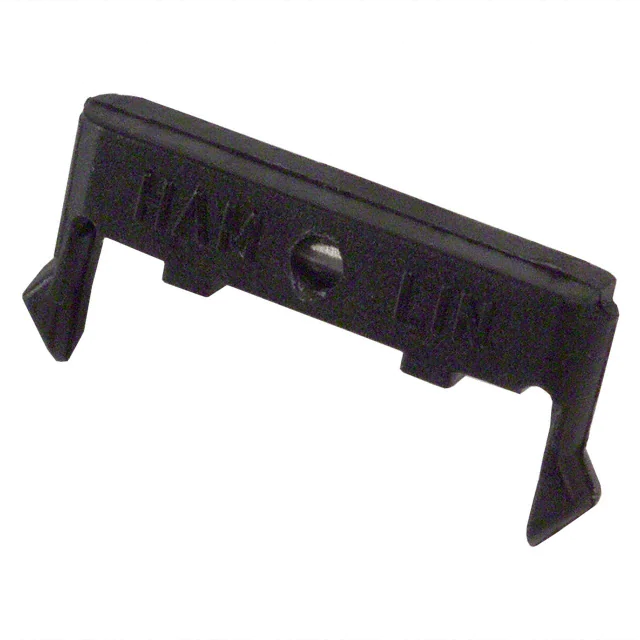

57045-000MAGNET 0.700"L X 0.130"W PLASTIC |
2,365 |
1+：$1.35500 5+：$1.21000 10+：$1.15550 25+：$1.09060 50+：$1.04640 420+：$0.93254 840+：$0.90155 1260+：$0.88462 5040+：$0.83280 |
|
Datasheet | - | PCB Module | Box | Active | 59045 | Plastic | Alnico 5 (AlNiCo) | 0.700" L x 0.130" W x 0.170" H (17.8mm x 3.30mm x 4.32mm) | 105°C (TA) |
|

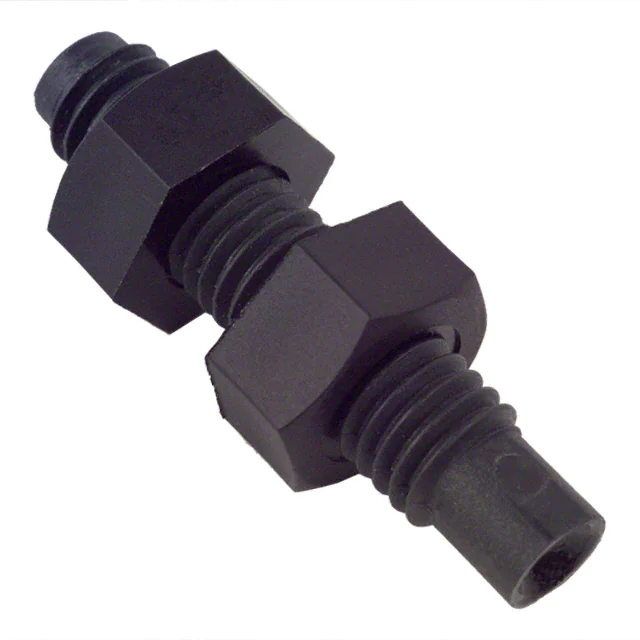

57065-000MAGNET 0.219"DIA X 1.5"L PLASTIC |
739 | - |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | 59065 | Plastic | Alnico 5 (AlNiCo) | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) |
|
|
57070-000MAGNET 0.219"DIA X 1.5"L PLASTIC |
697 | - |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | 59070 | Plastic | Alnico 5 (AlNiCo) | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) |
|
S1368BLACK RECTANGULAR ENCAPSULATED U |
680 |
1+：$1.31500 5+：$1.17200 10+：$1.11850 25+：$1.05440 50+：$1.01070 100+：$0.97065 500+：$0.89017 1000+：$0.86020 5000+：$0.79988 |
|
Datasheet | - | Flange Mount | Bulk | Active | PSM | Nylon | - | 1.181" L x 0.787" W x 0.276" H (30.00mm x 20.00mm x 7.00mm) | - |
|
57142-00057142-000 ACTUATOR |
502 | - |
|
Datasheet | - | Flange Mount | Box | Active | 59142 | Plastic | Nd-Fe-B | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) |
|
M11/M8MAGNET 0.315"DIA X 1.5"L PLASTIC |
630 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11/M8 | Plastic | Alnico 5 (AlNiCo) | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) |
|
57022-000MAGNET 0.228"DIA X 1"L PLASTIC |
327 |
1+：$1.95500 5+：$1.75100 10+：$1.67550 25+：$1.58560 50+：$1.52420 200+：$1.41635 600+：$1.34322 1000+：$1.31248 |
|
Datasheet | - | Cylinder | Box | Active | 59022 | Plastic | Alnico 5 (AlNiCo) | 0.228" Dia x 1.00" L (5.79mm x 25.4mm) | 105°C (TA) |
|

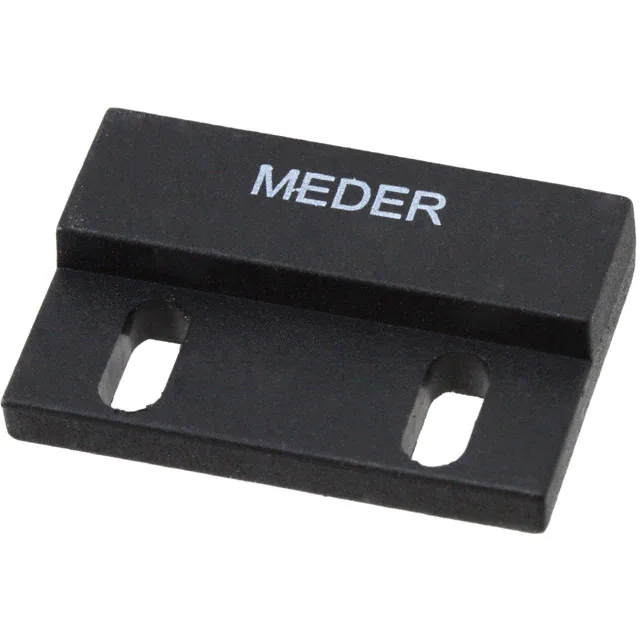

M21P/1MAGNET 1.122"L X 0.246"W PBT |
288 | - |
|
Datasheet | M21 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
MMPSM MAGNET BLUEBLUE RH RECTANGULAR ENCAPSULATED |
506 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | MMPSM | Nylon | - | 0.787" L x 0.551" W x 0.236" H (20.00mm x 14.00mm x 6.00mm) | - |
|

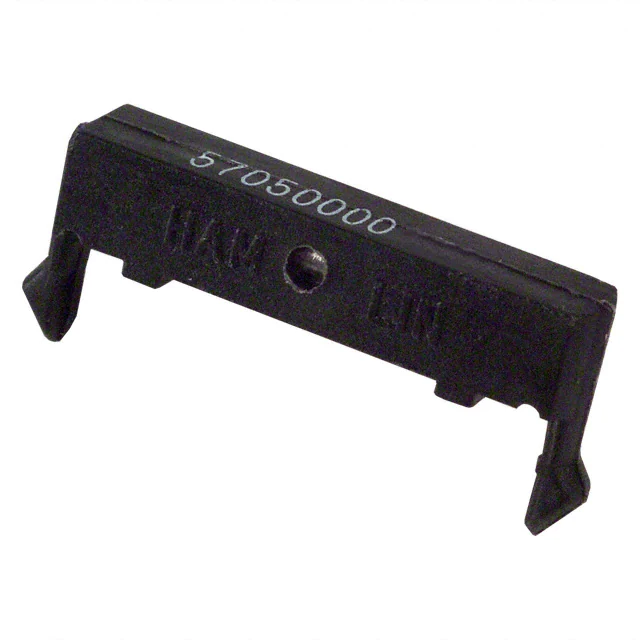

57050-000MAGNET 0.9"L X 0.180"W PLASTIC |
1,159 |
1+：$2.09000 5+：$1.87700 10+：$1.79650 25+：$1.70100 50+：$1.63560 180+：$1.52894 540+：$1.45015 1080+：$1.40570 |
|
Datasheet | - | PCB Module | Bulk | Active | 59050 | Plastic | Alnico 5 (AlNiCo) | 0.900" L x 0.180" W x 0.265" H (22.9mm x 4.57mm x 6.73mm) | 105°C (TA) |
|
57040-000MAGNET 0.42"DIA X 1.22"L PLASTIC |
395 | - |
|
Datasheet | - | Press Fit | Box | Active | 59040 | Plastic | - | 0.420" Dia x 1.22" L (10.7mm x 31.0mm) | 105°C (TA) |
|

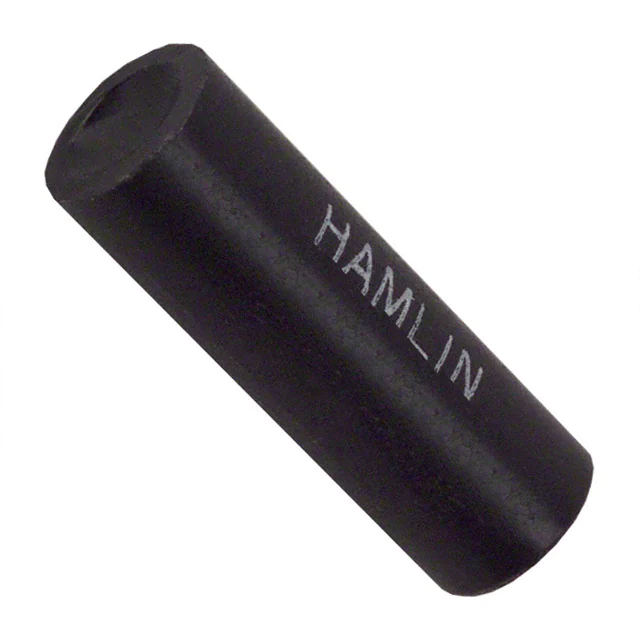

57020-000MAGNET 0.201"DIA X 0.6"L PLASTIC |
125 | - |
|
Datasheet | - | Cylinder | Bulk | Active | 59020 | Plastic | Alnico 5 (AlNiCo) | 0.201" Dia x 0.60" L (5.10mm x 15.2mm) | 105°C (TA) |
|
CTI302MMAGNET |
106 | - |
|
Datasheet | - | Cylinder, Threaded - M8 | Bulk | Active | S1736 | Nickel Plated Brass | - | - | 85°C (TA) |
