Tilt Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Operating Angle | Output Type | Mounting Type | Operating Temperature | Voltage - Supply | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TM1000QSWITCH TILT SPST |
19,544 | - |
|
Datasheet | - | 3-SIP Module | Tape & Reel (TR) | Active | ±45° | SPST | Through Hole, Right Angle | -25°C ~ 70°C | - | 20mA |
|
RB-231X2SENSOR ROLLING BALL |
26,384 |
1+：$1.12500 10+：$0.94650 25+：$0.87780 100+：$0.78185 250+：$0.72530 500+：$0.68668 1000+：$0.65176 3000+：$0.60388 5000+：$0.58460 |
|
Datasheet | RB | Radial, Side View | Bulk | Active | ±20° | SPST | Through Hole | -20°C ~ 70°C | - | - |
|
CW1300-1TILT SWITCH VIBRATION .25A 60V |
19,649 |
1+：$2.64000 10+：$2.20150 25+：$2.03960 100+：$1.81885 250+：$1.69212 500+：$1.60694 1000+：$1.53085 2500+：$1.44360 |
|
Datasheet | - | Radial | Box | Active | - | SPST | Through Hole | - | 5V | - |
|
AG1262-1TILT SWITCH THROUGH HOLE SPST |
1,357 |
1+：$2.85500 10+：$2.38100 25+：$2.20540 100+：$1.96725 250+：$1.83078 500+：$1.73917 1000+：$1.65744 2500+：$1.56382 |
|
Datasheet | - | Radial | Bulk | Active | - | SPST | Through Hole | - | 3.6V | - |
|
DSBA1HSENSOR TILT SW 30-60DEG 20MA TH |
937 | - |
|
Datasheet | DS | PCB Mount | Tray | Active | ±30° ~ ±60° | NPN | Through Hole, Right Angle | -25°C ~ 80°C | 5V | 20mA |
|
DSBA1PSENSOR TILT SW 30-60DEG 20MA TH |
1,506 |
1+：$6.93000 10+：$5.74100 25+：$5.31940 100+：$4.76170 250+：$4.44938 500+：$4.24259 1000+：$4.05997 |
|
Datasheet | DS | PCB Mount | Tray | Active | ±30° ~ ±60° | NPN | Through Hole, Straight | -25°C ~ 80°C | 5V | 20mA |
|
AG3011-77CTILT SWITCH ENCAP SPST |
2,225 |
1+：$10.45000 10+：$8.63800 25+：$8.01080 100+：$7.19130 300+：$6.65578 500+：$6.43976 |
|
Datasheet | - | Cylinder, Wire Leads | Bulk | Active | - | SPST | Chassis Mount | - | 6V ~ 24V | - |
|
T3-B-LSMAG OMNI-DIRECTIONAL TILT SWITCH |
194 | - |
|
Datasheet | - | Module, Wire Leads | Bulk | Active | ±11° | SPST | Chassis Mount | -40°C ~ 74°C | 30V | 250mA |
|
PD5005-7TCTILT SWITCH HYB 2.5A 240V |
192 | - |
|
Datasheet | - | Cylinder, Wire Leads | Bulk | Active | 15° | SPST | Surface Mount | -25°C ~ 70°C | - | - |
|
T1-AB-JSSWITCH TILT 180DEG UNIDIRECTION |
103 |
1+：$35.06500 10+：$28.98300 25+：$26.98940 100+：$24.46560 |
|
Datasheet | - | Module | Bulk | Active | ±4° | - | Free Hanging | -40°C ~ 85°C | 30V | 250mA (Max) |
|
RB-220-07A RSENSOR ROLLING BALL |
21,335 | - |
|
Datasheet | RB | Radial | Bulk | Active | ±7° ~ ±200° | SPST | Through Hole | -10°C ~ 50°C | - | - |
|
PD6045TILT SWITCH 10 DEGREE 20A |
2,858 | - |
|
Datasheet | - | Cylinder, Wire Leads | Bulk | Active | ±10° | SPST | Free Hanging | -40°C ~ 176°C | 6V ~ 40V | - |
|

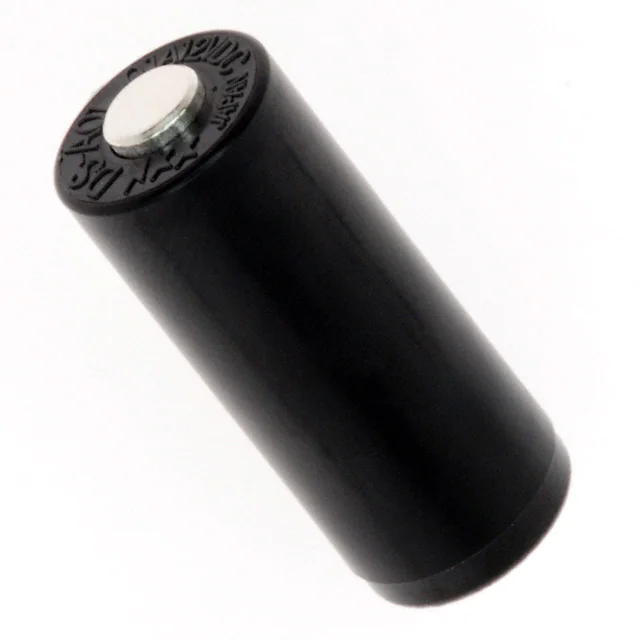

DSA01SENSOR TILT SWITCH PCB ADAPTER |
3,922 | - |
|
Datasheet | DS | Cylinder | Tray | Active | ON: 10° ~ 170°, OFF: 190° ~ 350° | - | PCB Adapter | -10°C ~ 70°C | - | - |
|
AHF21SENSOR TILT 25-60DEG TH |
1 |
1+：$3.35000 10+：$2.78600 50+：$2.43640 100+：$2.30310 250+：$2.14482 500+：$2.03887 1000+：$1.94452 2500+：$1.83669 |
|
Datasheet | - | PCB Mount | Bulk | Active | 25° ~ 60° | - | Through Hole, Vertical | -20°C ~ 80°C | - | - |
|
RB44145TILT SENSOR |
996 |
1+：$0.87500 10+：$0.73800 25+：$0.68500 100+：$0.61010 250+：$0.56568 500+：$0.53517 |
|
Datasheet | RB | 4-DIP Module | Bulk | Obsolete | - | SPDT | Through Hole | -20°C ~ 70°C | - | - |
|
PART TILT BALL SWITCHTILT BALL SWITCH |
558 |
1+：$1.00000 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - |
|
|
RBS301-TILT-USLORA TILT SENSOR |
48 |
1+：$31.76000 |
|
Datasheet | - | Module | Bulk | Active | - | LoRaWAN | - | -30°C ~ 70°C | - | - |
|

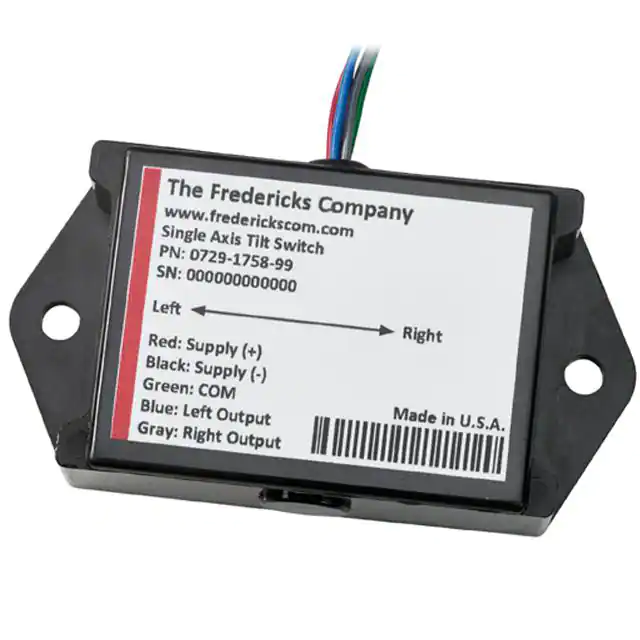

0729-1758-99TILT SWITCH OC 45DEG 1AXS |
29 |
1+：$66.09500 10+：$56.19000 100+：$47.97000 |
|
Datasheet | 0729 | Module | Box | Active | ±45° | Open Collector | Chassis Mount | -40°C ~ 70°C | 4.5V ~ 28V | 200mA |
|
AHF23TIP (AHF2) SWITCH |
4,455 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | 25° ~ 60° | NPN | Through Hole | -20°C ~ 80°C | 5V | - |
|
PD6045-LCTILT SWITCH 10 DEGREE 1.5A |
2,272 | - |
|
Datasheet | - | Cylinder, Wire Leads | Bulk | Active | ±10° | SPST | Free Hanging | -40°C ~ 176°C | 5V ~ 30V | - |
