ELECTRONIC COMPONENTS
Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRSM505-055PATRIC HALF BRIDGE DRIVER 2.4A 23SOP |
3,268 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
BTN8946TAAUMA1IC HALF BRIDGE DRVR 42A TO263-7 |
2,875 | - |
|
Datasheet | NovalithIC™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Discontinued at Digi-Key | Half Bridge | DC Motors, General Purpose | Logic, PWM | - | DMOS | 6.7mOhm LS + HS | 42A | - | 5.5V ~ 40V | 5.5V ~ 40V | - | - | - | Slew Rate Controlled | Current Limiting, Over Temperature, UVLO | Surface Mount | PG-TO263-7 |
|
TDA21240AUMA1IC HALF BRIDGE DRIVER 40A 30IQFN |
4,534 | - |
|
Datasheet | - | 30-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
|
TDA21241AUMA1IC HALF BRIDGE DRIVER 35A 30IQFN |
3,416 | - |
|
Datasheet | - | 30-PowerTFQFN | Tape & Reel (TR) | Discontinued at Digi-Key | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
|
TDA21242AUMA1IC HALF BRIDGE DRIVER 25A 30IQFN |
2,481 | - |
|
Datasheet | - | 30-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 25A | - | 4.5V ~ 7V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
TLE94106ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
1,156 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (6) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Over Voltage, UVLO | Surface Mount | PG-SSOP-24 |

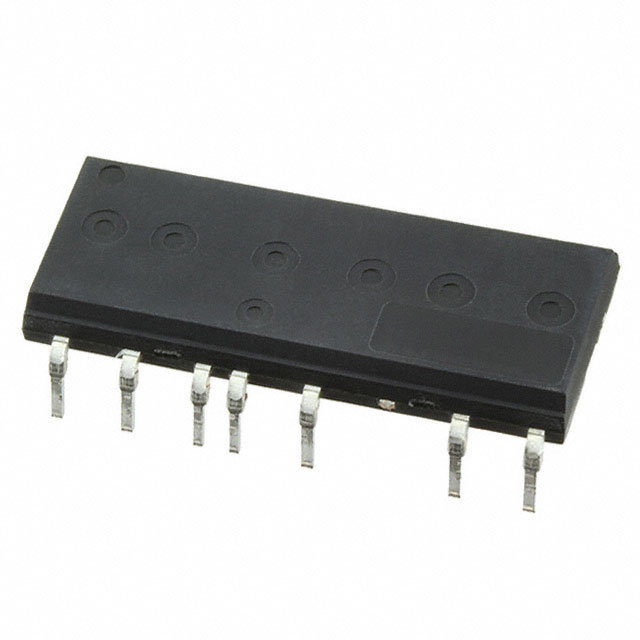

.jpg "IRSM506-076DA")
|
IRSM506-076DAIC HALF BRIDGE DRIVER 4A 23DIP |
1,339 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM516-076DAIC HALF BRIDGE DRIVER 4A 23DIP |
2,225 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |

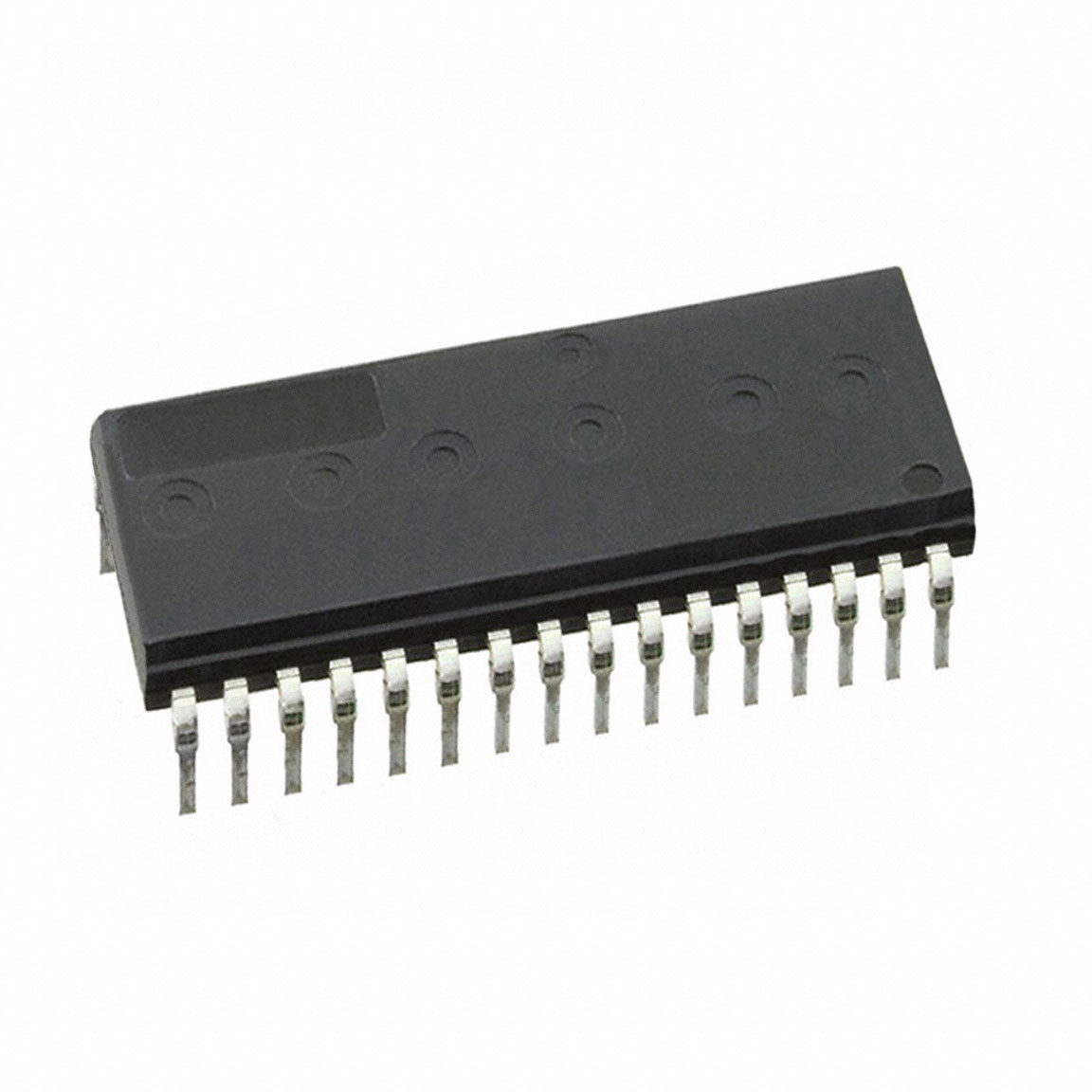

.jpg "IRSM516-076DA2")
|
IRSM516-076DA2IC HALF BRIDGE DRIVER 4A 23DIP |
2,108 | - |
|
Datasheet | µIPM™-DIP | 23-PowerDIP Module (0.551", 14.00mm) | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM516-076PAIC HALF BRIDGE DRIVER 4A 23SOP |
2,867 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
