Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2007SPBFIC HALF BRIDGE DRVR 600MA 8SOIC |
3,607 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Half Bridge (2) | Battery Powered | Logic | - | Power MOSFET | - | 600mA | - | 10V ~ 20V | 200V | -40°C ~ 125°C (TA) | - | - | - | - | Surface Mount | 8-SOIC |
|

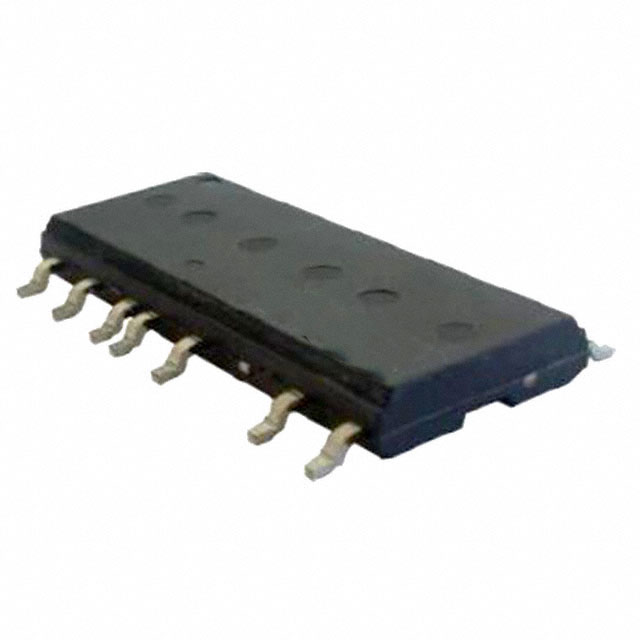

IRSM505-025PATRIC HALF BRIDGE DRIVER 1.5A 23SOP |
4,299 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-035PATRIC HALF BRIDGE DRIVER 2.1A 23SOP |
4,486 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
TDA21232AUMA1IC MOSFET DRIVER 40PIQFN |
4,564 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TDA21470IC CONTROLLER |
1,169 | - |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRSM505-035PATRBUMA1IC HALF BRIDGE DRIVER 2.1A 23SOP |
2,629 | - |
|
Datasheet | - | 32-PowerSMD Module, 23 Leads | Tape & Reel (TR) | Obsolete | Half Bridge (3) | DC Motors, General Purpose | Logic, PWM | Inductive | - | 1.8Ohm LS, 1.8Ohm HS | 2.1A | - | 13.5V ~ 16.5V | 13.5V ~ 16.5V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 23-SOP |
|
BTN8946TAPROTECTED HALF-BRIDGE |
4,896 | - |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRSM515-015PAALMA1IC HALF BRIDGE DRIVER 1.2A SOP23 |
3,366 | - |
|
Datasheet | IRSM505-015 | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic, PWM | Inductive | MOSFET (Metal Oxide) | 5Ohm LS, 5Ohm HS | 1.2A | - | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | PG-DIP-23-901/SOP 29x12F |
|
|
IRSM505-015PAALMA1IC HALF BRIDGE DRIVER 1.2A 23SOP |
1,180 | - |
|
Datasheet | IRSM505-015 | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic, PWM | Inductive | MOSFET (Metal Oxide) | 5Ohm LS, 5Ohm HS | 1.2A | - | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-035PATRAUMA1IC HALF BRIDGE DRIVER 2.1A 23SOP |
2,804 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic, PWM | Inductive | MOSFET (Metal Oxide) | 1.8Ohm LS, 1.8Ohm HS | 2.1A | - | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
