ELECTRONIC COMPONENTS
Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2007MTRPBFAUMA1IC HALF BRIDGE DRIVER 14MLPQ |
2,387 | - |
|
Datasheet | * | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 14-MLPQ (4x4) |
|

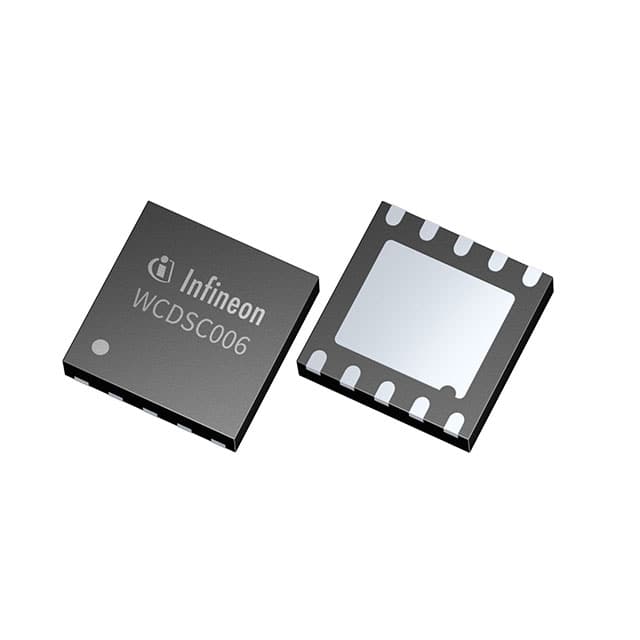

WCDSC006XUMA1IC HALF BRIDGE DRIVER 2A 10WSON |
4,032 | - |
|
Datasheet | EiceDRIVER™ | 10-WDFN Exposed Pad | Tape & Reel (TR) | Last Time Buy | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 800mOhm LS (Max), 2Ohm HS (Max) | 2A | 2A | 4.75V ~ 5.5V | 4.75V ~ 5.5V | -40°C ~ 125°C (TJ) | - | - | - | Current Limiting, Shoot-Through, UVLO | Surface Mount | PG-WSON-10 |
|
BTS7700GNUMA1IC HALF BRIDGE DRIVER PDSO28 |
1,284 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 80mOhm LS, 110mOhm HS | - | 9A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Slew Rate Controlled, Status Flag | ESD, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
|
|
BTS7740GNUMA1IC HALF BRIDGE DRIVER PDSO28 |
3,630 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 100mOhm LS, 110mOhm HS | - | 8A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
|
|
BTS7741GNUMA1IC HALF BRIDGE DRIVER PDSO28 |
2,699 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 100mOhm LS, 110mOhm HS | - | 10A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
|
TDA21201B7TIC HALF BRIDGE DRVR 30A TO263-7 |
2,541 | - |
|
Datasheet | - | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | 4.8mOhm LS, 13.3mOhm HS | 30A | - | 9V ~ 15V | 9V ~ 15V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-TO263-7-2 |
|
|
BTS7710GTIC HALF BRIDGE DRIVER PDSO28 |
1,790 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 40mOhm LS, 70mOhm HS | - | 15A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
|
TDA21201P7IC HALF BRIDGE DRVR 30A TO220-7 |
4,688 | - |
|
Datasheet | - | TO-220-7 | Bulk | Discontinued at Digi-Key | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | 4.8mOhm LS, 13.3mOhm HS | 30A | - | 9V ~ 15V | 9V ~ 15V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Through Hole | P-TO220-7-3 |
|
|
BTS7750GNUMA1IC HALF BRIDGE DRIVER PDSO28 |
4,041 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 45mOhm LS, 70mOhm HS | - | 12A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
|
|
BTS7751GNUMA1IC HALF BRIDGE DRIVER PDSO28 |
1,644 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 45mOhm LS, 70mOhm HS | - | 14A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
