ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC33151DR2GIC GATE DRVR LOW-SIDE 8SOIC |
2,223 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 6.5V ~ 18V | 0.8V, 2.6V | 1.5A, 1.5A | Inverting | - | 31ns, 32ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
.jpg "FAN3122TMPX")
|

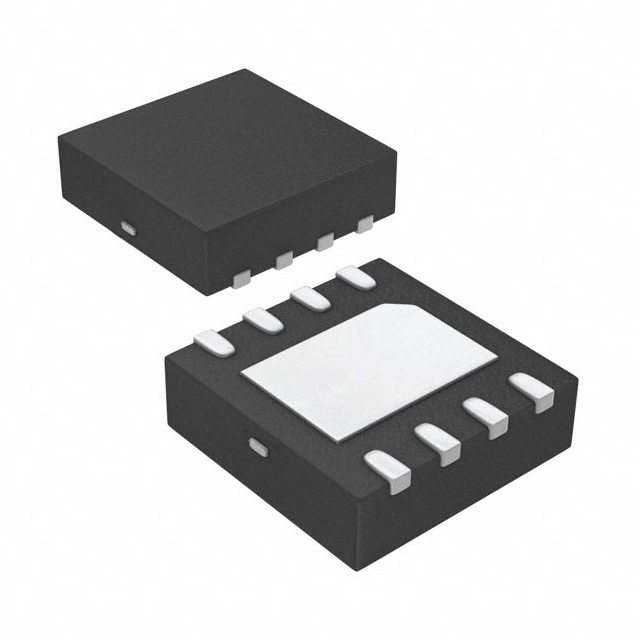

FAN3122TMPXIC GATE DRVR LOW-SIDE 8MLP |
13,007 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3x3) |
|
FAN3122TMXIC GATE DRVR LOW-SIDE 8SOIC |
5,578 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FAN3224TMPXIC GATE DRVR LOW-SIDE 8MLP |
8,825 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 5A, 5A | Non-Inverting | - | 12ns, 9ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MLP (3x3) |
|
NCP51820AMNTWGIC GATE DRVR HALF-BRIDGE HI SPD |
5,493 | - |
|
Datasheet | - | 15-VFQFN | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | - | N-Channel, P-Channel MOSFET | 9V ~ 17V | - | 1A, 2A | Non-Inverting | 670 V | 2ns, 1.5ns | 150°C (TJ) | - | - | Surface Mount | 15-QFN (4x4) |
|
|
NCP51810AMNTWGIC GATE DRVR HALF-BRIDGE 15QFN |
5,176 | - |
|
Datasheet | - | 15-VFQFN | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Single | 1 | N-Channel MOSFET | 9V ~ 17V | - | 1A, 2A | Non-Inverting | 150 V | 2ns, 1.5ns | 150°C (TJ) | - | - | Surface Mount | 15-QFN (4x4) |
|
|
MC33153DR2GIC GATE DRVR LOW-SIDE 8SOIC |
10,236 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 11V ~ 20V | 1.2V, 3.2V | 1A, 2A | Inverting | - | 17ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FAN3122CMXIC GATE DRVR LOW-SIDE 8SOIC |
7,661 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | - | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FAN7085MX-GF085IC GATE DRVR HIGH-SIDE 8SOIC |
3,675 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 20V | - | 450mA, 450mA | Inverting | 300 V | 65ns, 25ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
FAN7888MXIC GATE DRVR HALF-BRIDGE 20SOIC |
7,994 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1V, 2.5V | 350mA, 650mA | Non-Inverting | 200 V | 50ns, 30ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SOIC |
