ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

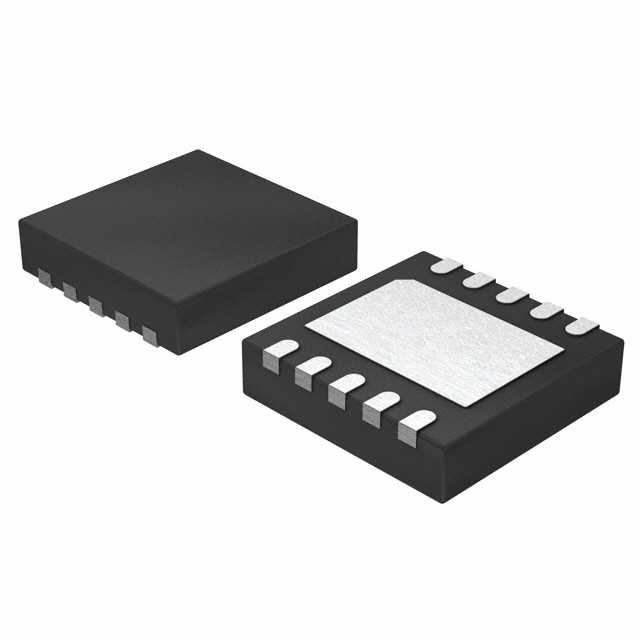

FAN8811TMPXIC GATE DRVR HALF-BRIDGE 10MLP |
17,325 | - |
|
Datasheet | - | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 16V | 1.3V, 2.5V | 3A, 6A | Non-Inverting | 118 V | 6ns, 4ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MLP (4x4) |
|
NCP81075MNTXGIC GATE DRVR HI/LOW SIDE 8DFN |
434 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 8.5V ~ 20V | 0.8V, 2.7V | 4A, 4A | Non-Inverting | 200 V | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | 8-DFN (4x4) |
|

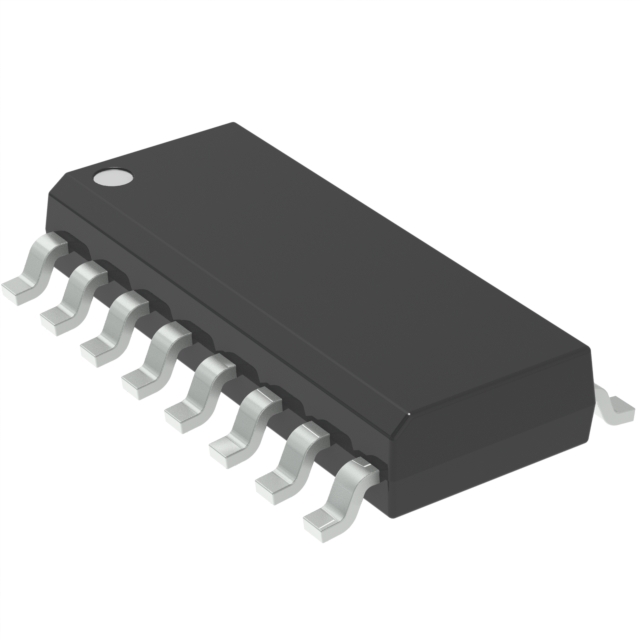

NCD5700DR2GIC GATE DRVR HI/LOW SIDE 16SOIC |
3,334 | - |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Synchronous | 1 | IGBT | 20V | 0.75V, 4.3V | 7.8A, 6.8A | Inverting | - | 9.2ns, 7.9ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
NCP51705MNTXGIC GATE DRVR LOW-SIDE 24QFN |
2,874 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | SiC MOSFET | 10V ~ 22V | 1.2V, 1.6V | 6A, 6A | Inverting, Non-Inverting | - | 8ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-QFN (4x4) |
|
NCP81151MNTBGIC GATE DRVR HALF-BRIDGE 8DFN |
9,885 | - |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.6V, 3.3V | - | Non-Inverting | 40 V | 16ns, 11ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
NCP81155MNTXGIC GATE DRVR HALF-BRIDGE 8DFN |
6,413 | - |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | 1V, 2V | - | Non-Inverting | - | 16ns, 11ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
NCP5901BDR2GIC GATE DRVR HALF-BRIDGE 8SOIC |
7,849 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | 1V, 2V | - | Non-Inverting | 35 V | 16ns, 11ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ADP3120AJRZ-RLIC GATE DRVR HALF-BRIDGE 8SOIC |
3,899 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.6V ~ 13.2V | 0.8V, 2V | - | Inverting, Non-Inverting | 35 V | 20ns, 11ns | -20°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ADP3110AKCPZ-RLIC GATE DRVR HALF-BRIDGE 8DFN |
8,051 | - |
|
Datasheet | - | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.6V ~ 13.2V | 0.8V, 2V | - | Inverting, Non-Inverting | 35 V | 20ns, 11ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|

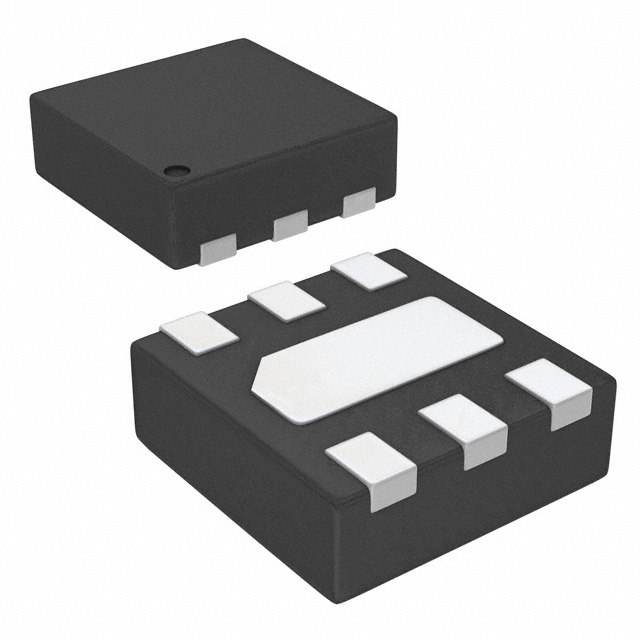

FL3100TMPXIC GATE DRVR LOW-SIDE 6MLP |
75,016 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 3A, 3A | Inverting, Non-Inverting | - | 13ns, 9ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
