ELECTRONIC COMPONENTS
Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC33XS2410ELR2HIGH SIDE SWITCH, 24V, 100MOHM, |
3,438 | - |
|
Datasheet | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | 3V ~ 60V | Not Required | - | - | - | - | - | - | Automotive | AEC-Q100 | Surface Mount | 28-HTSSOP |
|
MC33996EKIC PWR SWITCH N-CH 1:16 32SOIC |
4,969 | - |
|
Datasheet | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 16 | 1:16 | Low Side | N-Channel | SPI | 5V ~ 27V | 1.5V ~ 3V | 900mA | 550mOhm | - | PWM Input | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
|
MC20XS4200BDFKHIGH-SIDE SWITCH, 24V, DUAL 20MO |
1,641 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 4.4A | 20mOhm (Max) | Non-Inverting | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200BDFKR2HIGH-SIDE SWITCH, 24V, DUAL 10MO |
4,607 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200DFKR2HIGH-SIDE SWITCH, 24V, DUAL 10MO |
1,792 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200CFKR2HIGH-SIDE SWITCH, 24V, DUAL 10MO |
2,137 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|

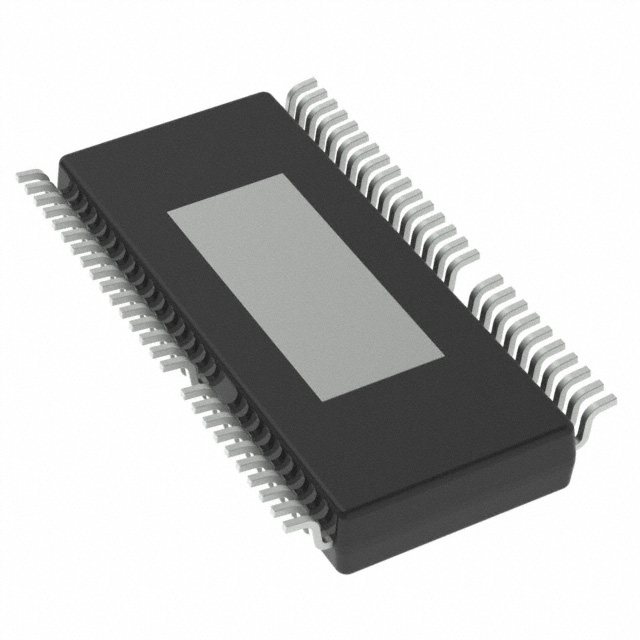

MC07XS6517DEKR2IC PWR SWITCH N-CHAN 1:1 54HSOP |
4,512 | - |
|
Datasheet | 54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
|
|
MC17XS6500EEKHIGH-SIDE SWITCH, 12V, PENTA 17M |
3,195 | - |
|
Datasheet | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 32-HSOP |
|
|
MC10XS4200CFKHIGH-SIDE SWITCH, 24V, DUAL 10MO |
4,605 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC07XSG517DEKR2HIGH-SIDE SWITCH, 32V, TRIPLE 7M |
2,890 | - |
|
Datasheet | 54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | - | 7mOhm | Non-Inverting | Internal PWM, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for Power Distribution Switches, Load Drivers?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
