Voltage Reference
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL431AIDBZRIC VREF SHUNT ADJ 1% SOT23-3 |
0 |
3000+：$0.05903 6000+：$0.05726 9000+：$0.05636 15000+：$0.05538 21000+：$0.05480 30000+：$0.05425 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 700 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TL431BQDBZRIC VREF SHUNT ADJ 0.5% SOT23-3 |
0 |
3000+：$0.09098 6000+：$0.08844 9000+：$0.08717 15000+：$0.08576 21000+：$0.08494 30000+：$0.08415 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 700 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
AN431AN-ATRG1IC VREF SHUNT ADJ 0.5% SOT23-3 |
156,124 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.5% | 20ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040CYM3-2.5-TRIC VREF SHUNT 0.5% SOT23-3 |
7,089 |
3000+：$0.15500 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

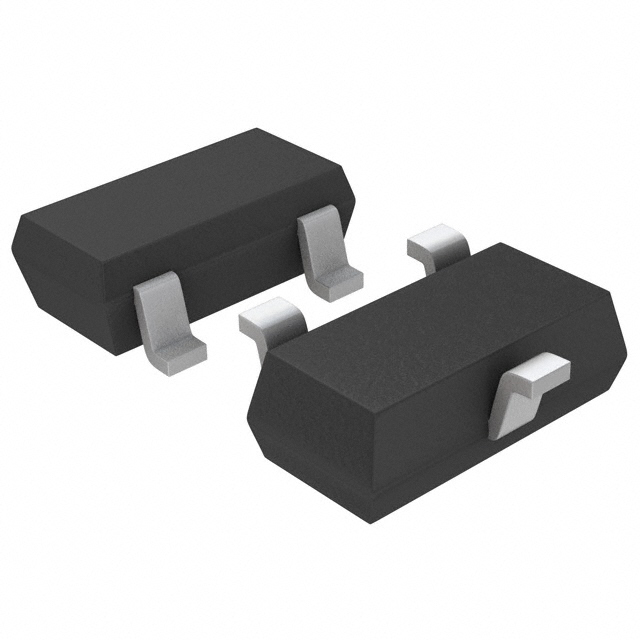

LM4040CYM3-4.1-TRIC VREF SHUNT 0.5% SOT23-3 |
220 |
3000+：$0.15500 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.096V | - | 15 mA | ±0.5% | 100ppm/°C | - | 80µVrms | - | - | 73 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040EIM3-2.5/NOPBIC VREF SHUNT 2% SOT23-3 |
38,172 |
1000+：$0.12400 2000+：$0.11973 3000+：$0.11759 5000+：$0.11522 7000+：$0.11384 10000+：$0.11251 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±2% | 150ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AZ431LBNTR-G1IC VREF SHUNT ADJ 1% SOT23-3 |
0 |
3000+：$0.03704 9000+：$0.03520 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | AZ431L | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 18 V | 100 mA | ±1% | 20ppm/°C Typical | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040D20IDBZRIC VREF SHUNT 1% SOT23-3 |
18,299 |
3000+：$0.13978 6000+：$0.13616 9000+：$0.13435 15000+：$0.13235 21000+：$0.13118 30000+：$0.13005 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.048V | - | 15 mA | ±1% | 150ppm/°C | - | 35µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041DIM3-ADJ/NOPBIC VREF SHUNT ADJ 1% SOT23-3 |
40,860 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040DIM3X-2.5/NOPBIC VREF SHUNT 1% SOT23-3 |
5,688 |
3000+：$0.17324 6000+：$0.16893 9000+：$0.16677 15000+：$0.16438 21000+：$0.16298 30000+：$0.16164 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±1% | 150ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040DIM3-2.5/NOPBIC VREF SHUNT 1% SOT23-3 |
50,037 |
3000+：$0.17324 6000+：$0.16893 9000+：$0.16677 15000+：$0.16438 21000+：$0.16298 30000+：$0.16164 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±1% | 150ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AZ431LANTR-G1IC VREF SHUNT ADJ 0.5% SOT23 |
216,174 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | AZ431L | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 18 V | 100 mA | ±0.5% | 20ppm/°C Typical | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ATL431BQDBZRIC VREF SHUNT ADJ 0.5% SOT23-3 |
35,099 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.5% | 82ppm/°C | - | - | - | - | 35 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LMV431AIMFX/NOPBIC VREF SHUNT ADJ 1% SOT23-3 |
23,401 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 30 V | 15 mA | ±1% | - | - | - | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LMV431AIM5X/NOPBIC VREF SHUNT ADJ 1% SOT23-5 |
76,042 |
3000+：$0.18589 6000+：$0.18128 9000+：$0.17896 15000+：$0.17640 21000+：$0.17491 30000+：$0.17347 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 30 V | 15 mA | ±1% | - | - | - | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4041CIM3X-1.2/NOPBIC VREF SHUNT 0.5% SOT23-3 |
5,742 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040D30IDBZRIC VREF SHUNT 1% SOT23-3 |
0 |
3000+：$0.24184 6000+：$0.23618 9000+：$0.23334 15000+：$0.23020 21000+：$0.22836 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±1% | 150ppm/°C | - | 35µVrms | - | - | 82 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040DIM3-5.0/NOPBIC VREF SHUNT 1% SOT23-3 |
14,833 |
1000+：$0.18204 2000+：$0.17618 3000+：$0.17324 5000+：$0.16998 7000+：$0.16808 10000+：$0.16625 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±1% | 150ppm/°C | - | 80µVrms | - | - | 85 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041CIM3-1.2/NOPBIC VREF SHUNT 0.5% SOT23-3 |
8,281 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TLVH431AIDBZRIC VREF SHUNT ADJ 1% SOT23-3 |
564 |
3000+：$0.16613 6000+：$0.16197 9000+：$0.15988 15000+：$0.15758 21000+：$0.15622 30000+：$0.15492 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1% | - | - | - | - | - | 100 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
