ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX8877EUK42+TIC REG LINEAR 4.2V 150MA SOT23-5 |
4,543 | - |
|
Datasheet | - | SC-74A, SOT-753 | Obsolete | Positive | Fixed | 1 | 6.5V | 4.2V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 | |
|
MAX8877EZK15+TIC REG LIN 1.5V 150MA TSOT23-5 |
1,979 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.5V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
LD1117AD2MTRIC REG LINEAR POS ADJ 1A D2PAK |
3,267 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 15V | 1.25V | 15V | 1.3V @ 1A | 1A | 5 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
LP2981-33DBVTE4IC REG LINEAR 3.3V 100MA SOT23-5 |
1,397 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.37V @ 100mA | 100mA | 95 µA | 1.7 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MAX1793EUE20+IC REG LINEAR POS ADJ 1A 16TSSOP |
4,186 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (2V) | 5V | - | 1A | 200 µA | - | - | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
MAX8875EUK27+TIC REG LINEAR 2.7V 150MA SOT23-5 |
3,738 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.7V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MAX8867EZK29+TIC REG LIN 2.84V 150MA TSOT23-5 |
1,135 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Obsolete | Positive | Fixed | 1 | 6.5V | 2.9V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | 63dB (10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 | |
|
MAX8840ELTXY+TIC REG LIN POS ADJ 150MA 6UDFN |
1,461 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.225V | 4.5V | - | 150mA | 90 µA | - | 78dB ~ 54dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
MAX1818EUT50#TG16IC REG LIN POS ADJ 500MA SOT6 |
2,898 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (5V) | 5V | 0.22V @ 500mA | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
MAX6474TA15AD3+TIC REG LIN POS ADJ 300MA 8TDFN |
1,109 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.2V (1.5V) | 5.5V | - | 300mA | 136 µA | 96 µA | - | Manual Reset, Reset, Shutdown | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
MAX1976AEZT180+TIC REG LIN 1.8V 300MA TSOT23-6 |
3,850 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 300mA | 300mA | 140 µA | 90 µA | 70dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 | |
|
|
MAX6469TA33AD3+TIC REG LIN POS ADJ 300MA 8TDFN |
2,926 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.2V (3.3V) | 5.5V | 0.18V @ 300mA | 300mA | 136 µA | 96 µA | - | Reset, Shutdown | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
MAX884CSA+TIC REG LIN POS ADJ 200MA 8SOIC |
2,080 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 11.5V | 1.25V (3.3V) | 11V | 0.64V @ 200mA | 200mA | 15 µA | 25 µA | - | Enable, Low Battery Detection | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
REG102UA-AG4IC REG LIN POS ADJ 250MA 8SOIC |
4,623 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 2.5V | 5.5V | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
REG104FA-3.3/500G3IC REG LIN 3.3V 1A DDPAK/TO263-5 |
3,876 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 0.48V @ 1A | 1A | 0.7 mA | 1.8 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
REG104FA-5KTTTG3IC REG LIN 5V 1A DDPAK/TO263-5 |
4,512 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 0.58V @ 1A | 1A | 0.7 mA | 1.8 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
REG1117FA2.5KTTTG3IC REG LIN 2.5V 1A DDPAK/TO263-3 |
1,932 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 15V | 2.5V | - | 1.55V @ 1A | 1A | 10 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
REG1117FA-5.0KTTTGIC REG LIN 5V 1A DDPAK/TO263-3 |
3,124 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 1.55V @ 1A | 1A | 10 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

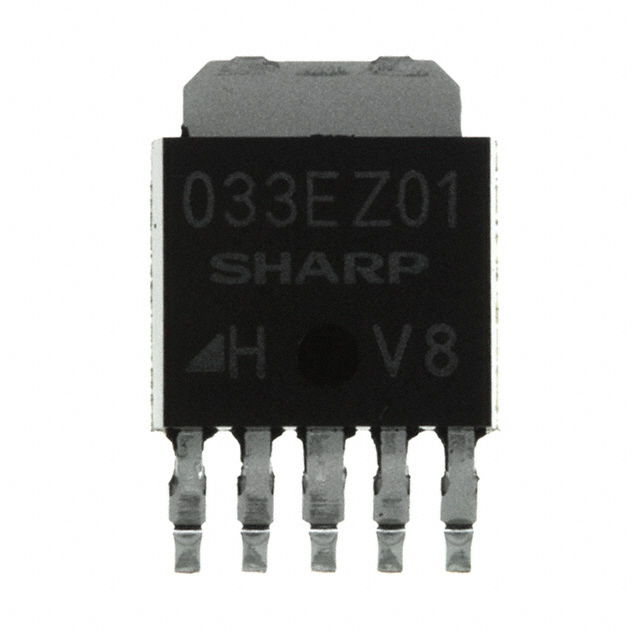

PQ033EZ01ZPHIC REG LINEAR 3.3V 1A SC63 |
4,824 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|

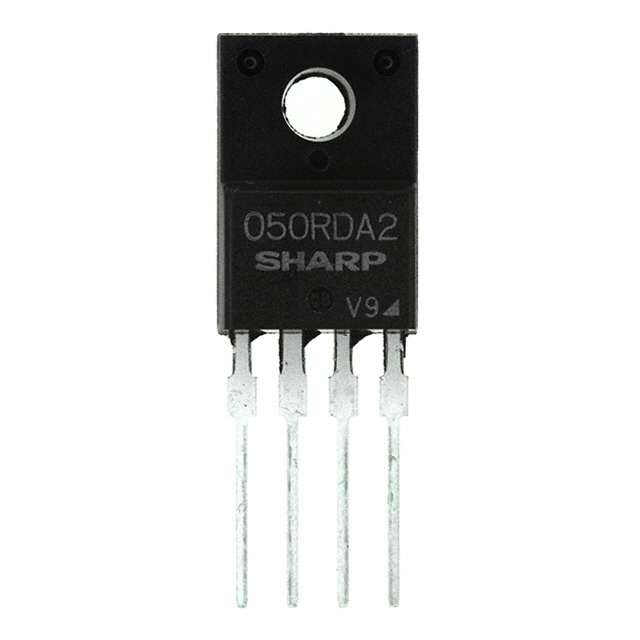

PQ050RDA2SZHIC REG LINEAR 5V 2A TO220-4 |
1,751 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 1V @ 2A | 2A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-4 |
