ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ05DZ1UJ00HIC REG LINEAR 5V 1A SC63 |
1,282 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
|

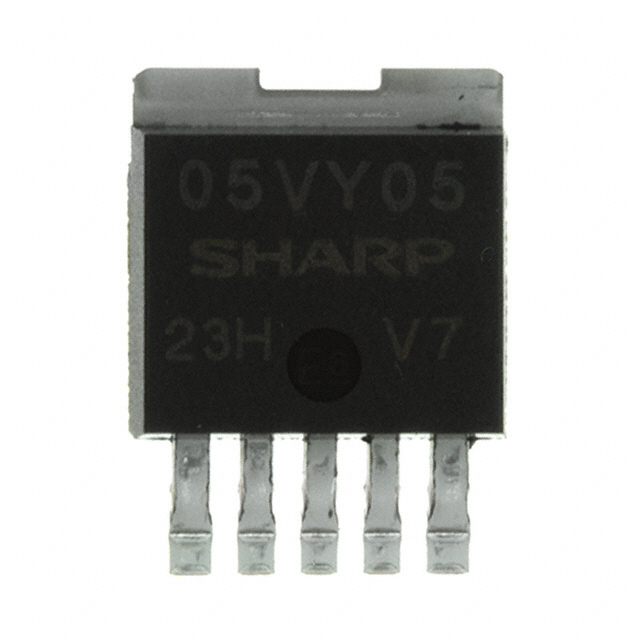

PQ05VY053ZPHIC REG LINEAR POS ADJ 5A TO263 |
4,157 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | TO-263 |
|

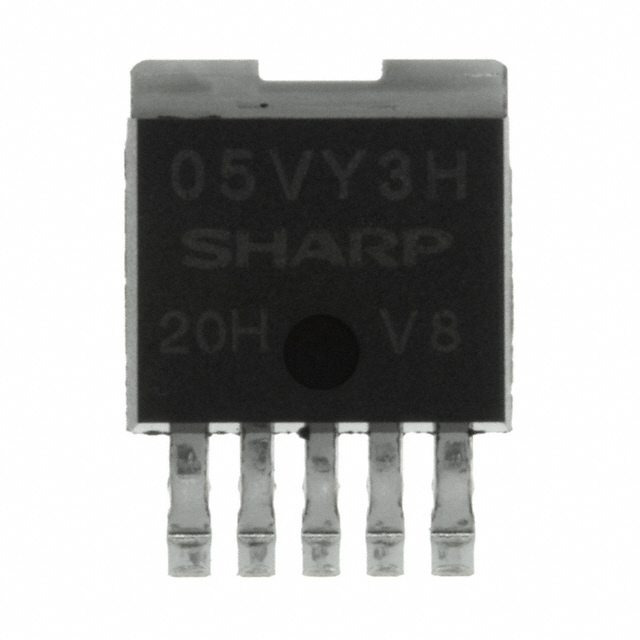

PQ05VY3H3ZPHIC REG LINEAR POS ADJ 3.5A TO263 |
3,938 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | TO-263 |
|

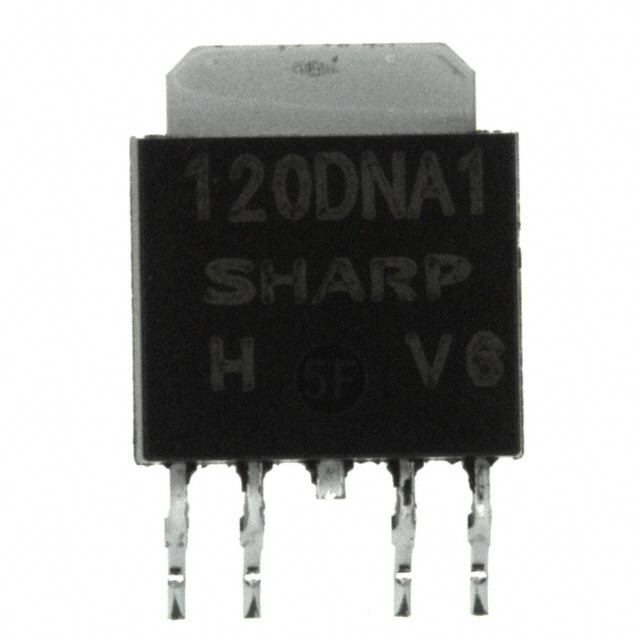

PQ120DNA1ZPHIC REG LINEAR 12V 1A SC63 |
2,223 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|
MIC29311-5.1WTIC REG LINEAR 5.1V 3A TO220-5 |
2,300 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 8V | 5.1V | - | 1V @ 3A | 3A | 20 mA | 150 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LM7805ACTIC REG LINEAR 5V 1A TO220-3 |
3,830 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCP3335ADM180R2GIC REG LINEAR 1.8V 500MA MICRO8 |
3,251 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.13V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
NCP5500DT33RKGIC REG LINEAR 3.3V 500MA DPAK-5 |
3,766 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | DPAK-5 |
|
NCV4264ST50T3GIC REG LINEAR 5V 100MA SOT223 |
4,077 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 400 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|
|
NCV4276ADT33RKGIC REG LINEAR 3.3V 400MA DPAK-5 |
4,087 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | - | 400mA | 200 µA | 35 mA | 70dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
ISL9000AIRBCZIC REG LINEAR 1.5V/1.8V 10DFN |
3,203 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 1.8V | - | -, - | 300mA, 300mA | 32 µA | 52 µA | -, 90db ~ 50dB (1kHz ~ 100kHz) | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRBCZ-TIC REG LINEAR 1.5V/1.8V 10DFN |
2,757 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 1.8V | - | -, - | 300mA, 300mA | 32 µA | 52 µA | -, 90db ~ 50dB (1kHz ~ 100kHz) | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRBJZ-TIC REG LINEAR 1.5V/2.8V 10DFN |
3,178 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRBLZ-TIC REG LINEAR 1.5V/2.9V 10DFN |
2,616 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.9V | - | -, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRGCZ-TIC REG LINEAR 1.8V/2.7V 10DFN |
2,548 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.7V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRGPZ-TIC REG LINEAR 1.85V/2.7V 10DFN |
3,893 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.7V | - | 0.5V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
ISL9000AIRJCZIC REG LINEAR 1.8V/2.8V 10DFN |
2,820 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJCZ-TIC REG LINEAR 1.8V/2.8V 10DFN |
1,421 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJMZ-TIC REG LINEAR 2.8V/3V 10DFN |
1,647 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V, 3V | - | 0.4V @ 300mA, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJRZ-TIC REG LINEAR 2.6V/2.8V 10DFN |
2,971 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.6V, 2.8V | - | 0.4V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
