ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3025EDC-4#TRMIC REG LINEAR 1.8V 500MA 6DFN |
1,498 | - |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.185V @ 500mA | 500mA | 10 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
LTC3025IDC-1#TRMIC REG LINEAR POS ADJ 500MA 6DFN |
3,225 | - |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 0.4V | 3.6V | 0.17V @ 500mA | 500mA | 80 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LTC3025IDC-2#TRMIC REG LINEAR 1.2V 500MA 6DFN |
2,633 | - |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.17V @ 500mA | 500mA | 10 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
LTC3026IDD#TRIC REG LINEAR POS ADJ 1.5A 10DFN |
2,491 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 3.5V, 5.5V | 0.4V | 2.6V | 0.25V @ 1.5A | 1.5A | - | - | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LT1763CDEIC REG LIN POS ADJ 500MA 12DFN |
3,557 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT1763IDEIC REG LIN POS ADJ 500MA 12DFN |
1,311 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT1763IDE-1.5IC REG LINEAR 1.5V 500MA 12DFN |
2,883 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
LT1763IDE-3.3IC REG LINEAR 3.3V 500MA 12DFN |
1,485 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT1763IDE-5IC REG LINEAR 5V 500MA 12DFN |
1,774 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT1763MPDE-1.5IC REG LINEAR 1.5V 500MA 12DFN |
3,417 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT1763MPDE-3.3IC REG LINEAR 3.3V 500MA 12DFN |
2,762 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
LT1964IDDIC REG LIN NEG ADJ 200MA 8DFN |
2,560 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Obsolete | Negative | Adjustable | 1 | -20V | -1.22V | -20V | 0.49V @ 200mA | 200mA | 70 µA | 6 mA | 54dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT3012BEDEIC REG LIN POS ADJ 250MA 12DFN |
3,517 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 80V | 1.24V | 60V | 0.62V @ 250mA | 250mA | 100 µA | 18 mA | 75dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT3013BEDEIC REG LIN POS ADJ 250MA 12DFN |
4,903 | - |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 80V | 1.24V | 60V | 0.62V @ 250mA | 250mA | 120 µA | 18 mA | 75dB (120Hz) | Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT3014BEDDIC REG LINEAR POS ADJ 20MA 8DFN |
4,965 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 80V | 1.22V | 60V | 0.57V @ 20mA | 20mA | 20 µA | 1 mA | 70dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT3020IDDIC REG LINEAR POS ADJ 100MA 8DFN |
1,116 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 0.2V | 9.5V | 0.285V @ 100mA | 100mA | 250 µA | 3.5 mA | 64dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|

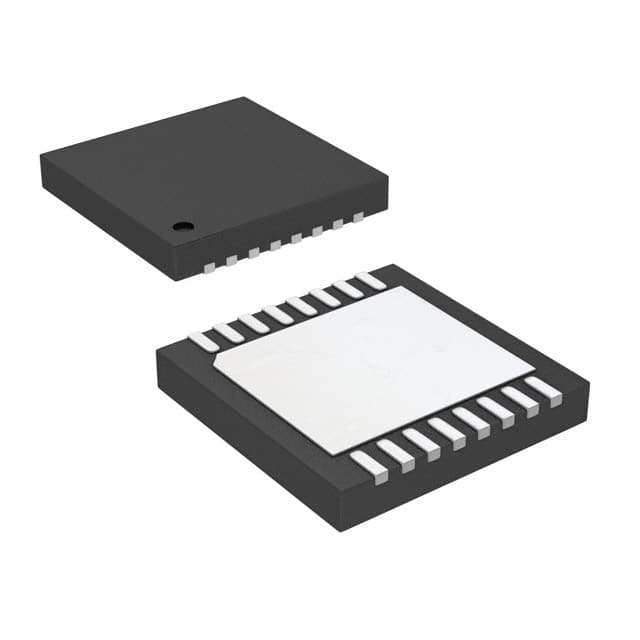

LT3021EDHIC REG LIN POS ADJ 500MA 16DFN |
1,687 | - |
|
Datasheet | - | 16-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 0.2V | 9.5V | 0.285V @ 500mA | 500mA | 250 µA | 10 mA | 70dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-DFN (5x5) |
|
|
LT3021EDH-1.2IC REG LINEAR 1.2V 500MA 16DFN |
4,085 | - |
|
Datasheet | - | 16-WFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 10V | 1.2V | - | 0.285V @ 500mA | 500mA | 250 µA | 10 mA | 60dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-DFN (5x5) |
|
|
LT3027IDDIC REG LINEAR POS ADJ 10DFN |
2,365 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable | 2 | 20V | 1.22V | 20V | 0.45V @ 100mA | 100mA, 100mA | 50 µA | 4 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LT3070IUFDIC REG LIN POS PROG 5A 28QFN |
2,573 | - |
|
Datasheet | - | 28-WFQFN Exposed Pad | Tube | Obsolete | Positive | Programmable | 1 | 3V | 0.8V | 1.8V | 0.15V @ 5A | 5A | 1.8 mA | 2.3 mA | 66dB (120Hz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
